Team Bahrain Victorious put the fifth-generation Scultura thoroughly through its paces, winning mountain-top stages of the Tour de France and the Vuelta a Espana before the bike was even launched. The Scultura 9000 builds that race-proven design around Merida's superlight CF5 carbon frame and fork.
The fifth generation keeps the Scultura's famous focus on low weight, agility and rider comfort, and improves on all of them. It also borrows aerodynamic learnings from the Reacto, and the two bikes now share the same race-proven geometry. Balancing weight, comfort and aerodynamics takes plenty of engineering ingenuity, yet the new Scultura is the most aerodynamic yet while offering outstanding compliance and class-leading comfort to keep you fresh for the final sprint or climb, as those grand tour mountain-top stage wins show.
The 9000 is built with Shimano's Ultegra Di2 2x12 electronic groupset and hydraulic disc brakes with Disc Cooler technology, a Reynolds BL 46 carbon wheelset with Continental GP5000S TR 28mm tyres, a fully integrated Merida Team SL carbon cockpit and an S-Flex carbon seatpost.
Features
- Superlight CF5 carbon frame and fork
- Shimano Ultegra Di2 2x12-speed electronic groupset
- Shimano Ultegra hydraulic disc brakes with Disc Cooler technology
- Reynolds BL 46 Expert DB carbon wheelset
- Continental Grand Prix 5000S TR 28mm tubeless-ready tyres
- Merida Team SL one-piece integrated carbon cockpit
- Merida Team SL S-Flex carbon seatpost
Specifications
DisciplineRoad
MaterialCarbon
Wheel Size700c
WarrantyLifetime (frame)
Frame - CF5 V carbon; premium fibres for light weight and performance; race geometry. Internal cable routing, 142x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" head tube. Pressfit 86.5 BB standard. Max tyre size 30c
Fork - Scultura CF5 Disc; full carbon; max tyre size 700x30c; Disc Cooler technology
Speeds - 24
Shift levers - Shimano Ultegra Di2
Front derailleur - Shimano Ultegra Di2; FD-R8150
Rear derailleur - Shimano Ultegra Di2; RD-R8150
Bottom bracket - SM-BB72-41B; Pressfit 86.5
Chain - Shimano CN-M8100-12
Chainset - Shimano Ultegra; 52-36 tooth; crank length: 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
Cassette - Shimano CS-R8101; 11-30 teeth; 12 speed
Brake levers - Shimano Ultegra
Front brake - Shimano Ultegra; hydraulic disc brake caliper with Shimano CL800; 160mm rotor
Rear brake - Shimano Ultegra; hydraulic disc brake caliper with Shimano CL800; 160mm rotor
Bar tape - Merida Expert
Handlebar - Team SL 1P Integrated; carbon; 380mm (XXS-XS-S), 400mm (M-L-XL)
Stem - Team One-Piece Integrated; carbon; length: 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
Headset - Merida Team SL (OP-203 neck)
Saddle - Scratch M5 with V-mount adapter; includes Merida mini tool
Seatpost - Merida Team SL; 27.2mm diameter; 15mm layback; carbon; S-Flex
Wheel size - 700c
Wheelset - Reynolds BL 46 Expert DB; 21mm inner rim width; 41mm rim depth; carbon; tubeless ready (tubeless tape and valves included); 100x12mm front, 142x12mm rear; Centerlock; Shimano HG
Front tyre - Continental Grand Prix 5000S TR; 700x28c; Kevlar bead; tubeless ready
Rear tyre - Continental Grand Prix 5000S TR; 700x28c; Kevlar bead; tubeless ready

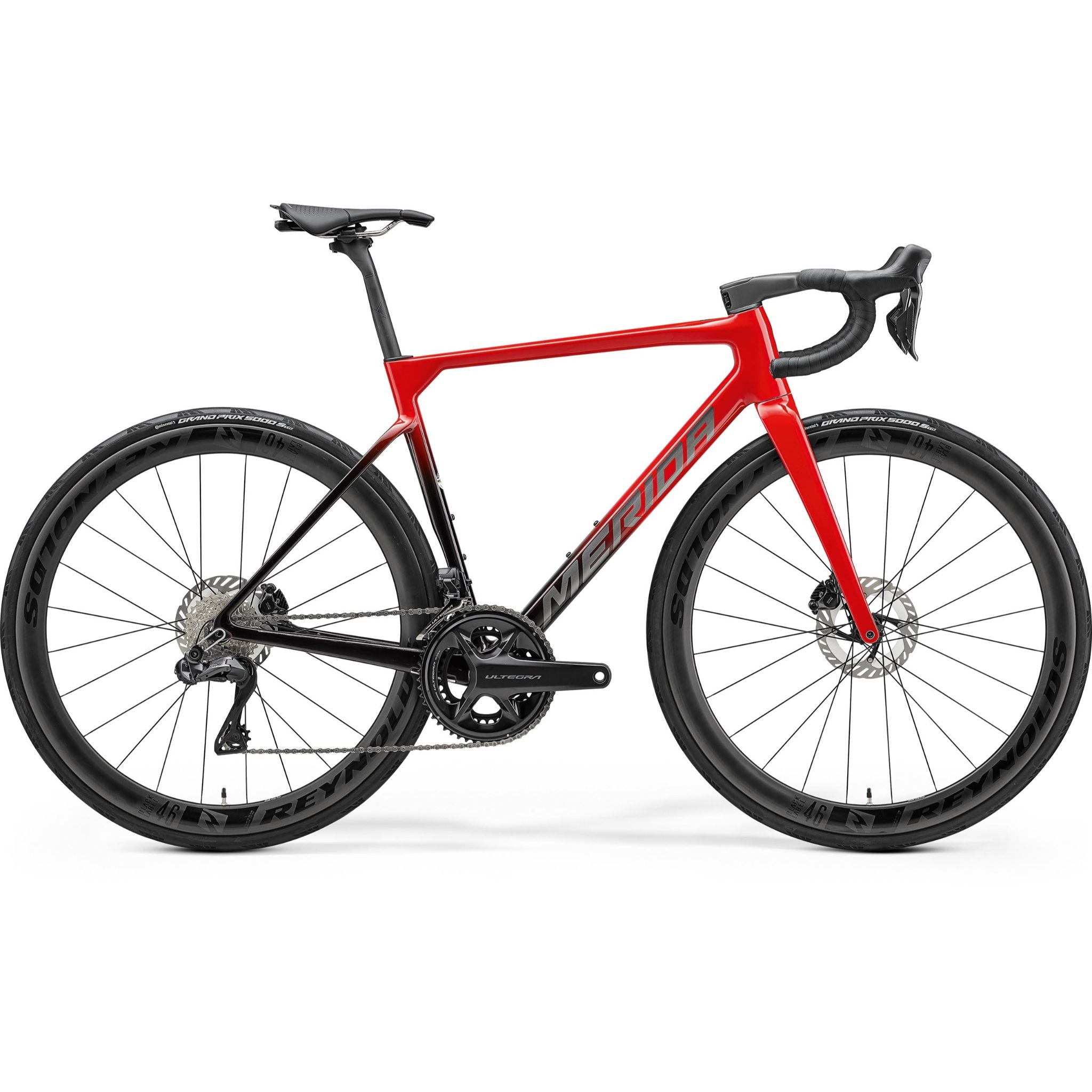

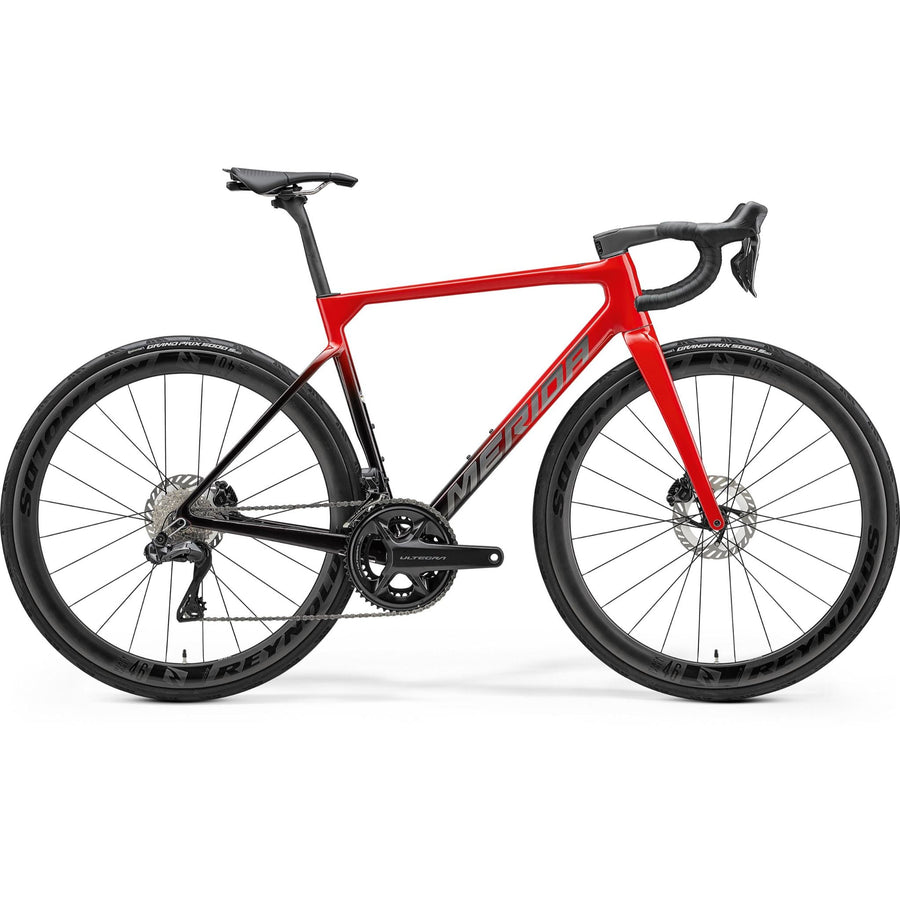

Scultura 9000 2025
- Road
- 700c wheels
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
Free product with this bike
Make your choice below
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
Team Bahrain Victorious put the fifth-generation Scultura thoroughly through its paces, winning mountain-top stages of the Tour de France and the Vuelta a Espana before the bike was even launched. The Scultura 9000 builds that race-proven design around Merida's superlight CF5 carbon frame and fork.
The fifth generation keeps the Scultura's famous focus on low weight, agility and rider comfort, and improves on all of them. It also borrows aerodynamic learnings from the Reacto, and the two bikes now share the same race-proven geometry. Balancing weight, comfort and aerodynamics takes plenty of engineering ingenuity, yet the new Scultura is the most aerodynamic yet while offering outstanding compliance and class-leading comfort to keep you fresh for the final sprint or climb, as those grand tour mountain-top stage wins show.
The 9000 is built with Shimano's Ultegra Di2 2x12 electronic groupset and hydraulic disc brakes with Disc Cooler technology, a Reynolds BL 46 carbon wheelset with Continental GP5000S TR 28mm tyres, a fully integrated Merida Team SL carbon cockpit and an S-Flex carbon seatpost.
Features
- Superlight CF5 carbon frame and fork
- Shimano Ultegra Di2 2x12-speed electronic groupset
- Shimano Ultegra hydraulic disc brakes with Disc Cooler technology
- Reynolds BL 46 Expert DB carbon wheelset
- Continental Grand Prix 5000S TR 28mm tubeless-ready tyres
- Merida Team SL one-piece integrated carbon cockpit
- Merida Team SL S-Flex carbon seatpost
Specifications
DisciplineRoad
MaterialCarbon
Wheel Size700c
WarrantyLifetime (frame)
Frame - CF5 V carbon; premium fibres for light weight and performance; race geometry. Internal cable routing, 142x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" head tube. Pressfit 86.5 BB standard. Max tyre size 30c
Fork - Scultura CF5 Disc; full carbon; max tyre size 700x30c; Disc Cooler technology
Speeds - 24
Shift levers - Shimano Ultegra Di2
Front derailleur - Shimano Ultegra Di2; FD-R8150
Rear derailleur - Shimano Ultegra Di2; RD-R8150
Bottom bracket - SM-BB72-41B; Pressfit 86.5
Chain - Shimano CN-M8100-12
Chainset - Shimano Ultegra; 52-36 tooth; crank length: 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
Cassette - Shimano CS-R8101; 11-30 teeth; 12 speed
Brake levers - Shimano Ultegra
Front brake - Shimano Ultegra; hydraulic disc brake caliper with Shimano CL800; 160mm rotor
Rear brake - Shimano Ultegra; hydraulic disc brake caliper with Shimano CL800; 160mm rotor
Bar tape - Merida Expert
Handlebar - Team SL 1P Integrated; carbon; 380mm (XXS-XS-S), 400mm (M-L-XL)
Stem - Team One-Piece Integrated; carbon; length: 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
Headset - Merida Team SL (OP-203 neck)
Saddle - Scratch M5 with V-mount adapter; includes Merida mini tool
Seatpost - Merida Team SL; 27.2mm diameter; 15mm layback; carbon; S-Flex
Wheel size - 700c
Wheelset - Reynolds BL 46 Expert DB; 21mm inner rim width; 41mm rim depth; carbon; tubeless ready (tubeless tape and valves included); 100x12mm front, 142x12mm rear; Centerlock; Shimano HG
Front tyre - Continental Grand Prix 5000S TR; 700x28c; Kevlar bead; tubeless ready
Rear tyre - Continental Grand Prix 5000S TR; 700x28c; Kevlar bead; tubeless ready
