The Scultura is the go to all-rounder, now in its fifth iteration with improved aerodynamics thanks to shared learnings from the award-winning Reacto aero bike.
The 2026 model remains true to its lightweight, agility and rider comfort focus demonstrating outstanding compliance to keep the body fresh for the final sprint or ascent. When it comes to final efforts, the geometry is World Tour, winning stages of the Vuelta and Tour even before it was officially launched helping prove its whippet-like acceleration and class-leading climbing pedigree.
Key features -
- Lightweight CF3 Carbon frame (approx. 997g in size M)
- Full carbon tapered fork
- Shimano Ultegra 2 x 12 Di2 groupset
- Shimano Ultegra hydraulic disc brakes with Disc Cooler Technology
- Reynolds AR 46 DB carbon wheelset with Continental Grand Prix 5000S TR 28c tyres
- Fully integrated carbon cockpit
- Merida S-Flex carbon seat post
SIZING -
- XXS: 153-162cm
- XS: 158-167cm
- S: 163-172cm
- M: 168-177cm
- L: 177-187cm
- XL: 183cm+
Specifications
-
Discipline Road
-
Material Carbon
-
Front Travel Rigid
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime
Frame - CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c
Fork - Scultura CF3 Disc; material: carbon; 700x30C max. tyre size
Headset - Merida Team SL (OP-203 neck)
Stem - Merida Team One-Piece Integrated; material: carbon; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm
Handlebar - Merida Team SL 1P Integrated; material: carbon; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide
Grip - Merida Road Expert
Brake Type - Hydraulic Disc
Brake Lever - Shimano Ultegra
Front Brake - Shimano Ultegra; Hydraulic disc with Shimano CL800; 160mm
Rear Brake - Shimano Ultegra; Hydraulic disc with Shimano CL800; 160mm
Front Tyre - Continental Grand Prix 5000S TR; 700x28C; kevlar bead; tubeless ready
Rear Tyre - Continental Grand Prix 5000S TR; 700x28C; kevlar bead; tubeless ready
Wheel Size - 700c
Rim - Reynolds AR 46 DB, 100x12mm; 142x12mm; 21mm inner rim width; 46mm rim depth; Centerlock; material: carbon; Tubeless ready (tubeless tape and valves included)
Spokes - Part of wheelset - Reynolds AR 46 DB
Front Hub - Part of wheelset - Reynolds AR 46 DB
Rear Hub - Part of wheelest - Reynolds AR 46 DB
Speeds - 24
Front Derailleur - Shimano Ultegra Di2
Rear Derailleur - Shimano Ultegra Di2
Shift Levers - Front: Shimano Ultegra Disc Di2, Rear: Shimano Ultegra Disc Di2
Chain - Shimano M6100-12
Cassette - Shimano Ultegra R8101; 11-30 teeth; 12 speed
Chainset - Shimano Ultegra; 52-36 tooth chainset; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BB72-41B; Pressfit 86.5
Pedals - Not included
Saddle - Prologo Scratch M5; V-mount adapter; incl. Merida minitool
Seat Post - Merida Team SL; 27.2mm diameter; in-line; material: carbon

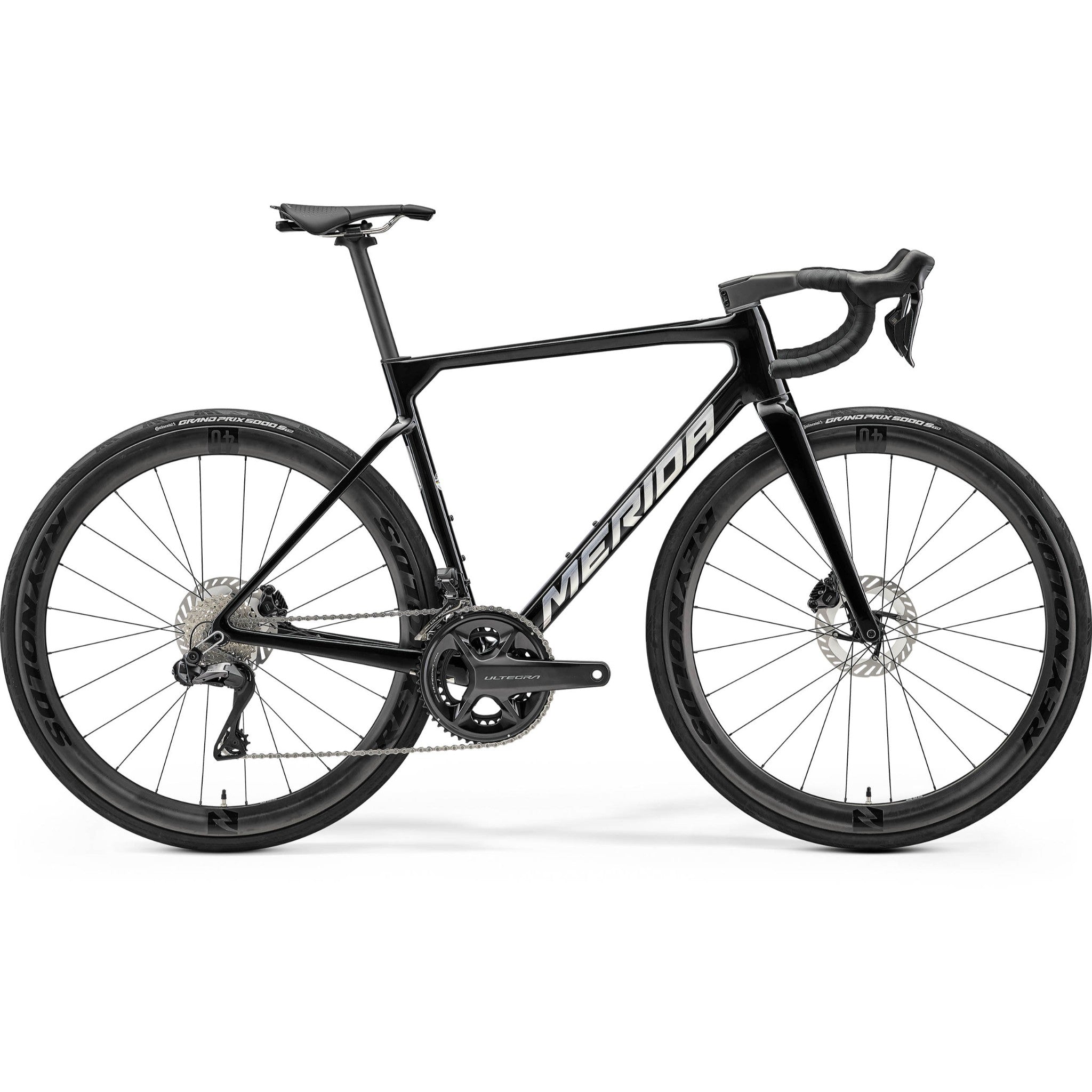

Scultura 8000 2026
