Electronic shifting is what sets the 5000 apart, and on a road bike it changes more than the spec sheet suggests. Shimano 105 Di2 shifts the same whether you are fresh or cross-eyed at the end of a four hour ride, the front shifts sort themselves out, and there is no cable friction to look after through a wet winter.
Underneath, this is the fifth-generation Scultura platform: a lightweight CF3 V carbon frame and Scultura CF3 Disc carbon fork, shaped with aerodynamic lessons taken from the Reacto but built around low weight, sharp handling and enough compliance to keep you comfortable. Race geometry, internal cable routing, a 1 1/2 to 1 1/4 tapered head tube, 142 x 12mm rear axle, Pressfit 86.5 bottom bracket, flat mount rear brake with Disc Cooler and room for 30c tyres.
The transmission is 105 Di2 front and rear with a 50-34 chainset and an 11-34 12-speed cassette, so the gearing is unchanged from the mechanical bike and still climbs well. Braking is Shimano 105 hydraulic disc. The wheels are the other real step up: Vision Team 35 clincher discs, aluminium, 35mm deep with a 19mm inner rim width and tubeless tape ready, wearing tubeless ready Continental Grand Prix TR 28c tyres. Running them tubeless later is a straightforward job.
Contact points stay practical, with a Merida Expert SL aluminium bar, a -10 degree FSA SMR-II stem, an FSA ACR headset for the tidy cable routing and a 27.2mm in-line carbon seat post. It is a good pick if you want electronic shifting and modern wheels without moving away from parts that are easy to live with.
Features
- Shimano 105 Di2 electronic shifting, 12-speed, with 105 hydraulic disc brakes
- CF3 V carbon frame and Scultura CF3 Disc carbon fork, race geometry
- Vision Team 35 aluminium wheelset, 35mm deep, 19mm inner rim width, tubeless tape ready
- Continental Grand Prix TR 700x28C tubeless ready folding tyres
- 50-34 chainset with an 11-34 cassette for a wide climbing range
- FSA ACR headset with internal cable routing for a clean front end
- 142 x 12mm rear axle, Pressfit 86.5 bottom bracket, clearance up to 30c
- Merida Expert SL 27.2mm in-line carbon seat post
Specifications
Discipline Road
Material CF3 Carbon
Wheel Size 700c
Groupset Shimano 105 Di2
Brakes Hydraulic Disc
Max Tyre 30c
Frame - CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2 to 1 1/4 headtube. Max tyre size - 30c
Fork - Scultura CF3 Disc; carbon; 700x30C max. wheel size
Headset - FSA ACR
Stem - FSA SMR-II; aluminium; -10°
Handlebar - Merida Expert SL II; aluminium; (3XS-S) - 380mm, (M-L) - 400mm, XL - 420mm
Grips - Merida ROAD Expert
Brake Type - Hydraulic Disc
Brake Levers - Shimano 105
Brakes - Front: Shimano 105; Disc Rear: Shimano 105; Disc
Wheels - Rims: Vision Team 35 Clincher Disc Centerlock; 19mm inner rim width; 35mm deep; aluminium; Tubeless tape ready Front Hub: Merida Expert SL Rear Hub: Merida Expert SL
Tyres - Front: Continental Grand Prix TR; 700x28C; fold; tubeless ready Rear: Continental Grand Prix TR; 700x28C; fold; tubeless ready
Wheel Size - 700c
Speeds - 24
Shifters - Front: Shimano 105 disc Di2 Rear: Shimano 105 disc Di2
Front Derailleur - Shimano 105 Di2
Rear Derailleur - Shimano 105 Di2
Chainset - Shimano 105 R7100; 50-34 teeth; Crank Length: 3XS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BB71-41B; Pressfit 86.5mm
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Saddle - Merida Expert SL II; V-mount; incl. Merida minitool
Seat Post - Merida Expert SL; 27.2mm diameter; in-line; Carbon

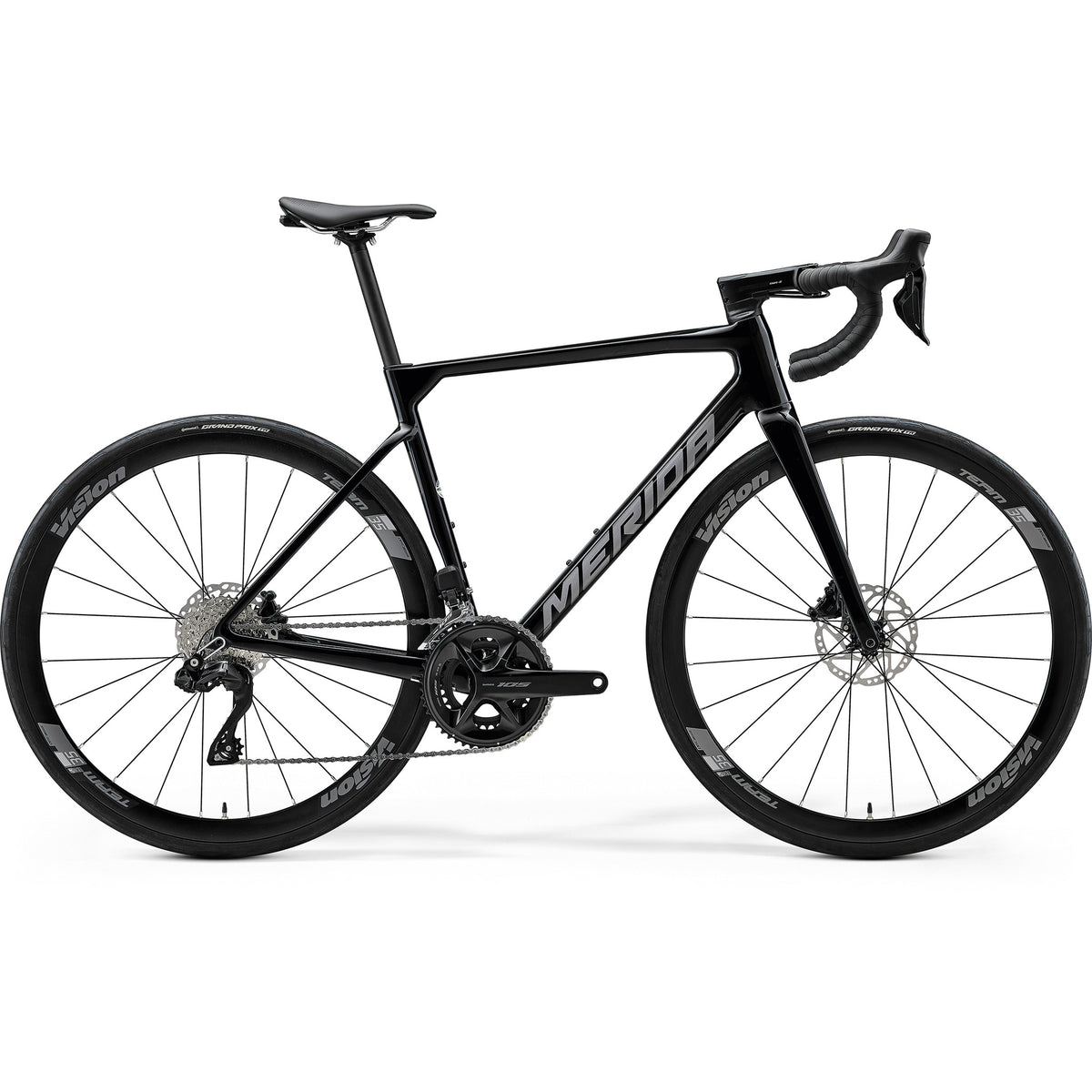

Scultura 5000 2027
