The Scultura is the go to all-rounder, now in its fifth iteration with improved aerodynamics thanks to shared learnings from the award-winning Reacto aero bike. Yet, it remains true to its lightweight, agility and rider comfort focus demonstrating outstanding compliance to keep the body fresh for the final sprint or ascent. When it comes to final efforts, the geometry is World Tour, winning stages of the Vuelta and Tour even before it was officially launched helping prove its whippet-like acceleration and class-leading climbing pedigree.
Key features -
- Lightweight CF3 Carbon frame (approx. 997g in size M)
- Full carbon tapered fork
- Shimano 105 24 speed Di2 drivetrain
- Shimano 105 chainset
- Shimano 105 hydraulic disc brakes with Disc Cooler Technology
- Vision Team 35 aluminium wheelset
- Carbon seat post
SIZING -
- XXS: 153-162cm
- XS: 158-167cm
- S: 163-172cm
- M: 168-177cm
- L: 177-187cm
- XL: 183cm+
Specifications
-
Discipline Road
-
Material Carbon
-
Front Travel Rigid
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime
Frame - CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c
Fork - Scultura CF3 Disc; material: carbon; 700x30C max. tyre size
Headset - FSA ACR
Stem - FSA SMR-II; material: aluminium; -10 ; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm
Handlebar - Merida Expert SLII; material: aluminium; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide
Grip - Merida Road Expert
Brake Type - Hydraulic Disc
Brake Lever - Shimano 105
Front Brake - Shimano 105; Hydraulic disc with Shimano RT64; 160mm
Rear Brake - Shimano 105; Hydraulic disc with Shimano RT64; 160mm
Front Tyre - Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready
Rear Tyre - Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready
Wheel Size - 700c
Rim - Vision Team 35 Clincher Disc Centerlock; 19mm inner rim width; 35mm rim depth; material: aluminium; Tubeless tape ready
Spokes - Part of wheelset - Vision Team 35 Clincher Disc Centerlock
Front Hub - Part of wheelset - Vision Team 35 Clincher Disc Centerlock
Rear Hub - Part of wheelest - Vision Team 35 Clincher Disc Centerlock
Speeds - 24
Front Derailleur - Shimano 105 Di2
Rear Derailleur - Shimano 105 Di2
Shift Levers - Front: Shimano 105 Disc Di2, Rear: Shimano 105 Disc Di2
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Chainset - Shimano 105 R7100; 50-34 tooth chainset; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BB71-41B; Pressfit 86.5
Pedals - Not included
Saddle - Merida Expert SL; 6% recycled and 23% nature material; V-mount; incl. Merida minitool
Seat Post - Merida Expert SL; 27.2mm diameter; in-line; material: carbon

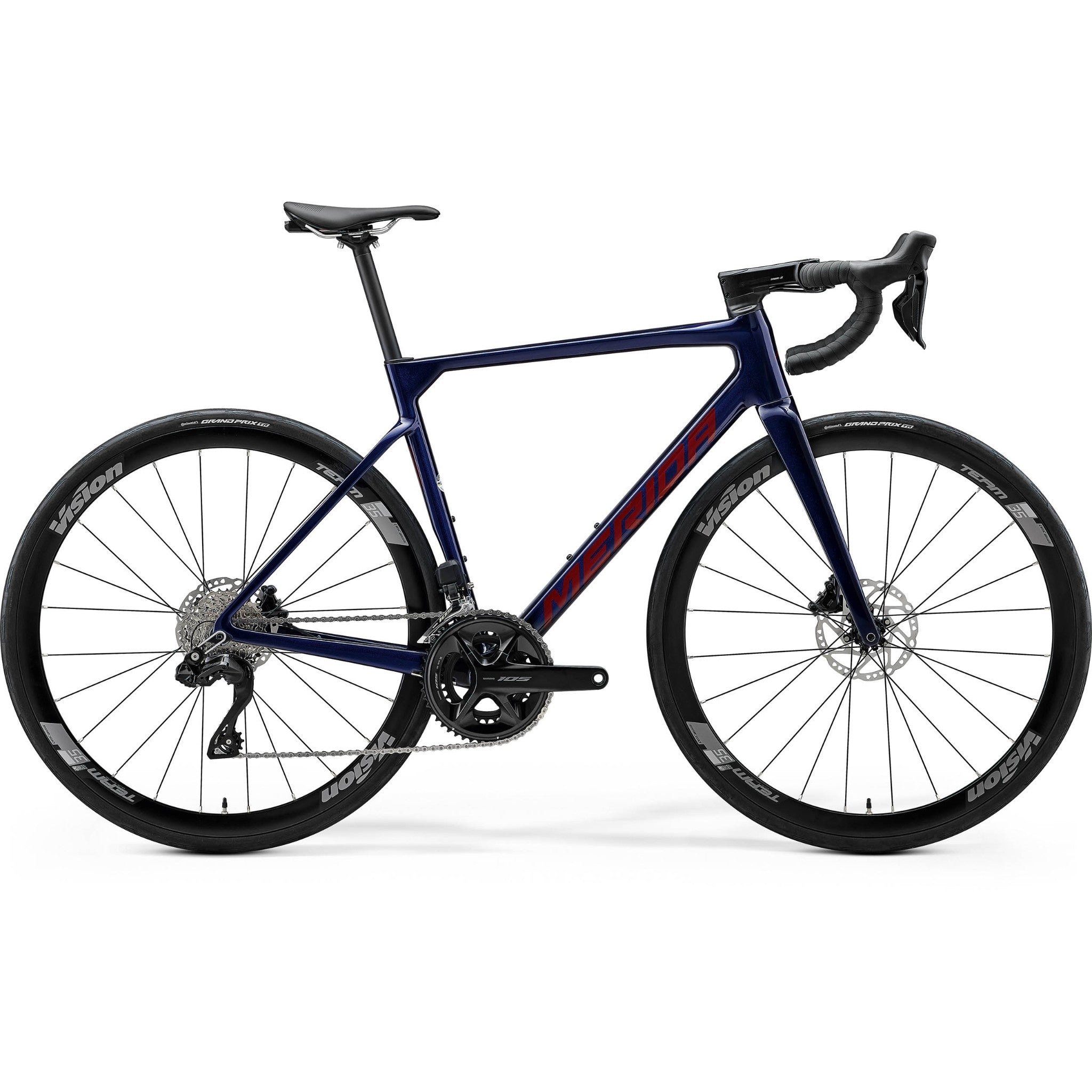

Scultura 5000 2026
