Nothing on the 10K is left as a compromise. This is the top of the range, built for riders who want the lightest version of the frame, wireless shifting, deep carbon wheels and a power meter, all fitted from the start rather than added over a few seasons.
The CF5 V carbon frame uses premium fibres and is the lightest in the range, but weight is only part of the story. The current shaping took a great deal from the Reacto aero platform, and a lot of development effort went into making this the most comfortable pure road race frame the brand has produced. Race geometry keeps the handling honest at speed, while internal cable routing, a 1 1/2 to 1 1/4 tapered head tube, a 142 x 12mm rear axle, a Pressfit 86.5 bottom bracket and a flat mount rear brake with Disc Cooler keep the build tidy and the braking consistent on long descents. Tyre clearance runs to 30c.
SRAM Red AXS runs the whole drivetrain, wireless front and rear, with a carbon 50-37 chainset that carries a power meter, a Red E1 chain and an XG 1290 E1 10-36 12-speed cassette on an XDR driver. The 10-tooth top sprocket and the small chainring steps give you a wide range with fine gaps, which is the combination you want when a climb keeps changing gradient. Braking is Red AXS hydraulic disc.
Zipp 353 NSW tubeless carbon wheels are the standout, with a 25mm inner rim width that gives the Schwalbe Pro One Aero Super Race 28c tyres a wide, stable shape, plus an integrated tyre pressure sensor so you can check pressures rather than guess them. A Merida Team one-piece carbon bar and stem, a Prologo Nago R4 PAS saddle on Nack rails and a Team SL II carbon seat post complete a bike that needs nothing adding.
Features
- CF5 V carbon frame with premium fibres, the lightest Scultura frame, plus CF5 Disc carbon fork
- SRAM Red AXS wireless 12-speed shifting with Red AXS hydraulic disc brakes
- SRAM Red AXS carbon 50-37 chainset with integrated power meter
- SRAM XG 1290 E1 10-36 cassette on an XDR driver for a wide range with close steps
- Zipp 353 NSW tubeless carbon wheelset, 25mm inner rim width, with tyre pressure sensor
- Schwalbe Pro One Aero Super Race 700x28C tyres with RaceGuard protection
- Merida Team one-piece carbon cockpit and Team SL II carbon seat post
- Prologo Nago R4 PAS saddle with Nack rails
- Internal cable routing, 142 x 12mm rear axle, Disc Cooler flat mount rear brake
Specifications
Discipline Road
Material CF5 Carbon
Wheel Size 700c
Groupset SRAM Red AXS
Wheels Zipp 353 NSW
Power Meter SRAM Red AXS
Frame - CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2 to 1 1/4 headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c
Fork - Scultura CF5 Disc; carbon; 700x30C max. wheel size
Headset - Merida Team SL (OP-203 neck)
Stem - Merida Team ONE-PIECE; carbon
Handlebar - Merida Team SL 1P; carbon; (3XS-S) - 380mm, (M-L) - 400mm, XL - 420mm
Grips - Merida ROAD Expert
Brake Type - Hydraulic Disc
Brake Levers - Sram Red AXS
Brakes - Front: Sram Red AXS; Disc Rear: Sram Red AXS; Disc
Wheels - Rims: Zipp 353 NSW Tubeless; 100x12mm; 142x12mm; 25mmmm inner rim width; Centerlock; Sram XDR, MAT: Carbon; incl. tire pressure sensor Front Hub: Merida Expert SL Rear Hub: Merida Expert SL
Tyres - Front: Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C, Rear: Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C,
Wheel Size - 700c
Speeds - 24
Shifters - Front: Sram Red AXS Rear: Sram Red AXS
Front Derailleur - Sram Red AXS
Rear Derailleur - Sram Red AXS; wireless
Chainset - Sram Red AXS; 50-37 teeth; Carbon; Power Meter; Crank Length: 3XS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Sram Pressfit Dub; Pressfit 86.5mm
Chain - Sram Red E1
Cassette - Sram XG 1290 E1; 10-36 teeth; 12 speed
Saddle - Prologo Nago R4 PAS; Nack
Seat Post - Merida Team SL II; 27.2mm diameter; in-line; Carbon

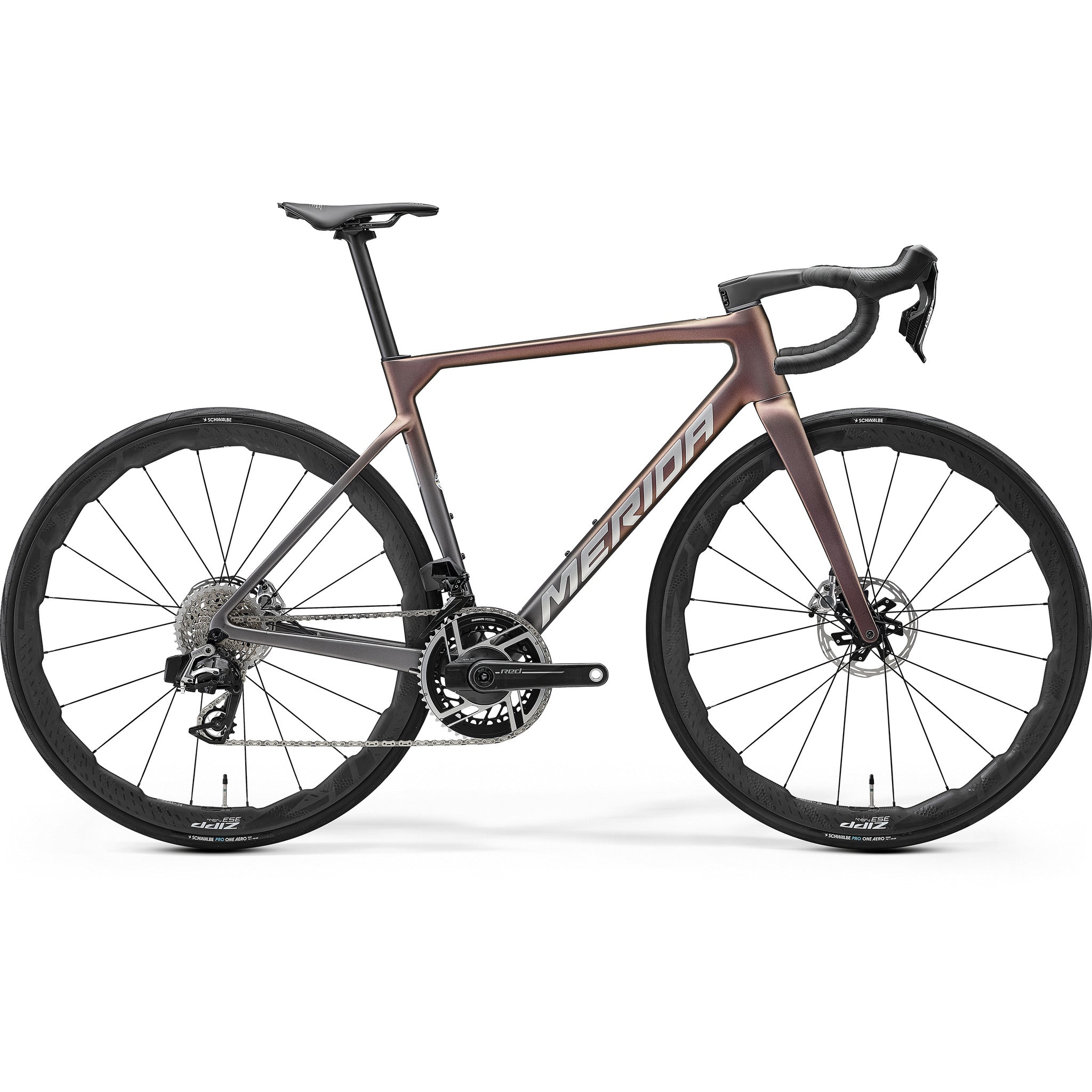

Scultura 10K 2027
Order within [time] for delivery by [date]
90 Day Returns
Free product with this bike
Make your choice below
Nothing on the 10K is left as a compromise. This is the top of the range, built for riders who want the lightest version of the frame, wireless shifting, deep carbon wheels and a power meter, all fitted from the start rather than added over a few seasons.
The CF5 V carbon frame uses premium fibres and is the lightest in the range, but weight is only part of the story. The current shaping took a great deal from the Reacto aero platform, and a lot of development effort went into making this the most comfortable pure road race frame the brand has produced. Race geometry keeps the handling honest at speed, while internal cable routing, a 1 1/2 to 1 1/4 tapered head tube, a 142 x 12mm rear axle, a Pressfit 86.5 bottom bracket and a flat mount rear brake with Disc Cooler keep the build tidy and the braking consistent on long descents. Tyre clearance runs to 30c.
SRAM Red AXS runs the whole drivetrain, wireless front and rear, with a carbon 50-37 chainset that carries a power meter, a Red E1 chain and an XG 1290 E1 10-36 12-speed cassette on an XDR driver. The 10-tooth top sprocket and the small chainring steps give you a wide range with fine gaps, which is the combination you want when a climb keeps changing gradient. Braking is Red AXS hydraulic disc.
Zipp 353 NSW tubeless carbon wheels are the standout, with a 25mm inner rim width that gives the Schwalbe Pro One Aero Super Race 28c tyres a wide, stable shape, plus an integrated tyre pressure sensor so you can check pressures rather than guess them. A Merida Team one-piece carbon bar and stem, a Prologo Nago R4 PAS saddle on Nack rails and a Team SL II carbon seat post complete a bike that needs nothing adding.
Features
- CF5 V carbon frame with premium fibres, the lightest Scultura frame, plus CF5 Disc carbon fork
- SRAM Red AXS wireless 12-speed shifting with Red AXS hydraulic disc brakes
- SRAM Red AXS carbon 50-37 chainset with integrated power meter
- SRAM XG 1290 E1 10-36 cassette on an XDR driver for a wide range with close steps
- Zipp 353 NSW tubeless carbon wheelset, 25mm inner rim width, with tyre pressure sensor
- Schwalbe Pro One Aero Super Race 700x28C tyres with RaceGuard protection
- Merida Team one-piece carbon cockpit and Team SL II carbon seat post
- Prologo Nago R4 PAS saddle with Nack rails
- Internal cable routing, 142 x 12mm rear axle, Disc Cooler flat mount rear brake
Specifications
Discipline Road
Material CF5 Carbon
Wheel Size 700c
Groupset SRAM Red AXS
Wheels Zipp 353 NSW
Power Meter SRAM Red AXS
Frame - CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2 to 1 1/4 headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c
Fork - Scultura CF5 Disc; carbon; 700x30C max. wheel size
Headset - Merida Team SL (OP-203 neck)
Stem - Merida Team ONE-PIECE; carbon
Handlebar - Merida Team SL 1P; carbon; (3XS-S) - 380mm, (M-L) - 400mm, XL - 420mm
Grips - Merida ROAD Expert
Brake Type - Hydraulic Disc
Brake Levers - Sram Red AXS
Brakes - Front: Sram Red AXS; Disc Rear: Sram Red AXS; Disc
Wheels - Rims: Zipp 353 NSW Tubeless; 100x12mm; 142x12mm; 25mmmm inner rim width; Centerlock; Sram XDR, MAT: Carbon; incl. tire pressure sensor Front Hub: Merida Expert SL Rear Hub: Merida Expert SL
Tyres - Front: Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C, Rear: Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C,
Wheel Size - 700c
Speeds - 24
Shifters - Front: Sram Red AXS Rear: Sram Red AXS
Front Derailleur - Sram Red AXS
Rear Derailleur - Sram Red AXS; wireless
Chainset - Sram Red AXS; 50-37 teeth; Carbon; Power Meter; Crank Length: 3XS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Sram Pressfit Dub; Pressfit 86.5mm
Chain - Sram Red E1
Cassette - Sram XG 1290 E1; 10-36 teeth; 12 speed
Saddle - Prologo Nago R4 PAS; Nack
Seat Post - Merida Team SL II; 27.2mm diameter; in-line; Carbon
