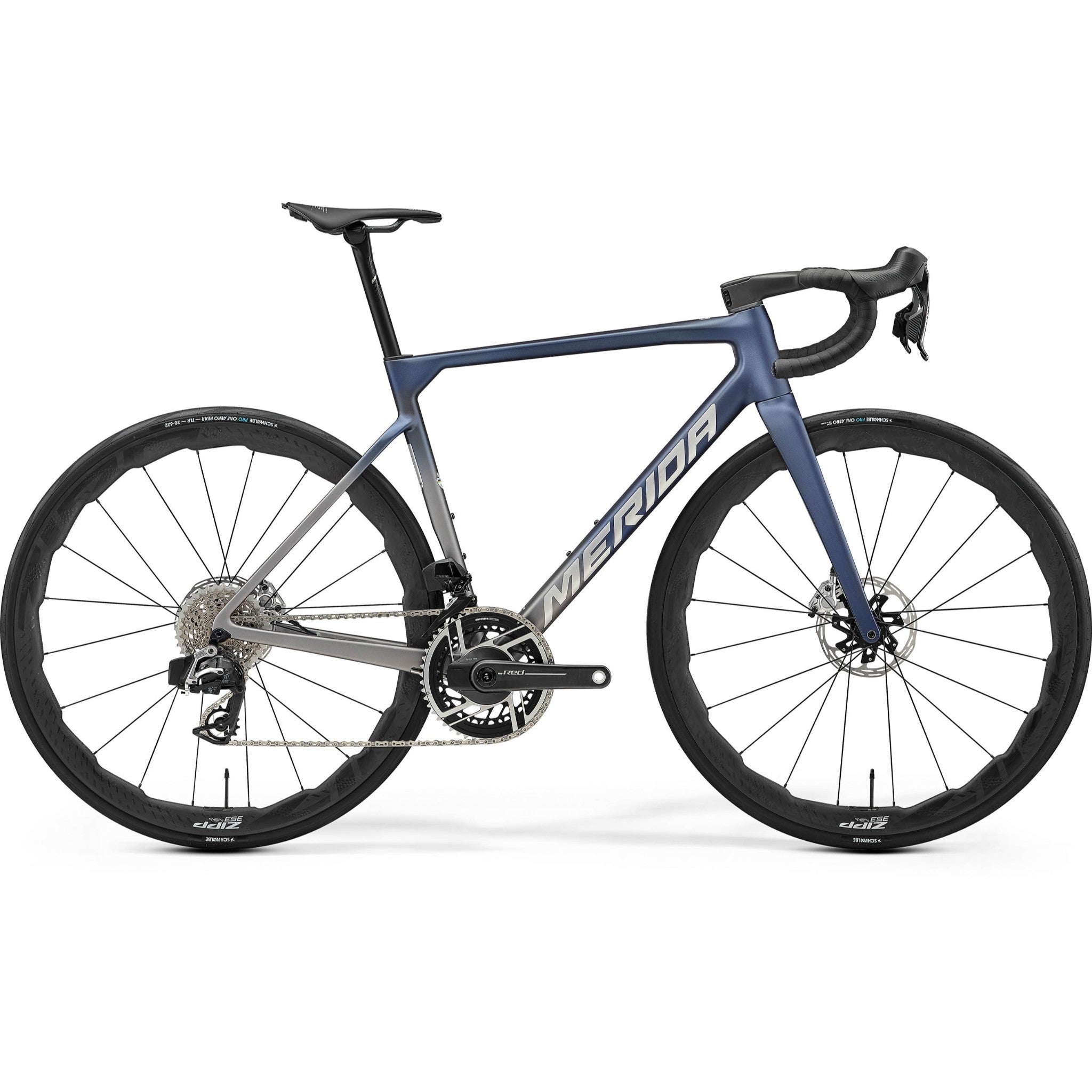

Merida's range topping superlight carbon road bike with wish list spec. CF5 superlight frame, SRAM Red AXS transmission with power meter and Zipp 353 NSW carbon wheelset.
If only the best is good enough and you value aerodynamic efficiency, low weight, race-proven geometry and class-leading comfort then our test-winning Scultura could be the perfect choice for you. The CF5 frame is not just super light but also benefitted a lot from our new Reacto aerodynamic design and has been the focus of lots of effort to make it the most comfortable pure road race bike in our history.
Key features -
- Superlight CF5 Carbon frame (approx 822g in size M)
- Full carbon tapered fork
- SRAM Red AXS groupset with Power meter
- Zipp 353 NSW carbon wheelset with Continental GP5000S TR 28c tyres
- Fully integrated carbon cockpit
- FSA K-Force Light SL carbon seatpost
- Disc Cooler technology
SIZING -
- XS: 158-167cm
- S: 163-172cm
- M: 168-177cm
- L: 177-187cm
- XL: 183cm+
Specifications
-
Discipline Road
-
Material carbon
-
Front Travel Rigid
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime
Frame - CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c
Fork - Scultura CF5 Disc; material: carbon; 700x30C max. tyre size
Headset - Merida Team SL (OP-203 neck)
Stem - Merida Team One-Piece Integrated; material: carbon; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm
Handlebar - Merida Team SL 1P Integrated; material: carbon; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide
Grip - Merida Road Expert
Brake Type - Hydraulic Disc
Brake Lever - SRAM Red AXS
Front Brake - SRAM Red AXS; Hydraulic disc with SRAM Paceline X Centerlock; 160mm
Rear Brake - SRAM Red AXS; Hydraulic disc with SRAM Paceline X Centerlock; 160mm
Front Tyre - Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C,
Rear Tyre - Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C,
Wheel Size - 700c
Rim - Zipp WH-353-NSW Tubeless; 12x100mm; 12x142mm; 25mmmm inner rim width; Centerlock; SRAM xdr; Carbon
Spokes - Part of wheelset - Zipp WH-353-NSW Tubeless
Front Hub - Part of wheelset - Zipp WH-353-NSW Tubeless
Rear Hub - Part of wheelest - Zipp WH-353-NSW Tubeless
Speeds - 24
Front Derailleur - SRAM Red AXS
Rear Derailleur - SRAM Red AXS E1
Shift Levers - Front: SRAM Red AXS , Rear: SRAM Red AXS
Chain - SRAM Red E1
Cassette - SRAM XG 1290 E1; 10-36 teeth; 12 speed
Chainset - SRAM Red AXS; 50-37 tooth chainset; Power Meter; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - SRAM Pressfit Dub; Pressfit 86.5
Pedals - Not included
Saddle - Prologo Nago R4 PAS; Nack
Seat Post - Metron RS Seatpost; 27.2mm diameter; in-line; material: carbon
