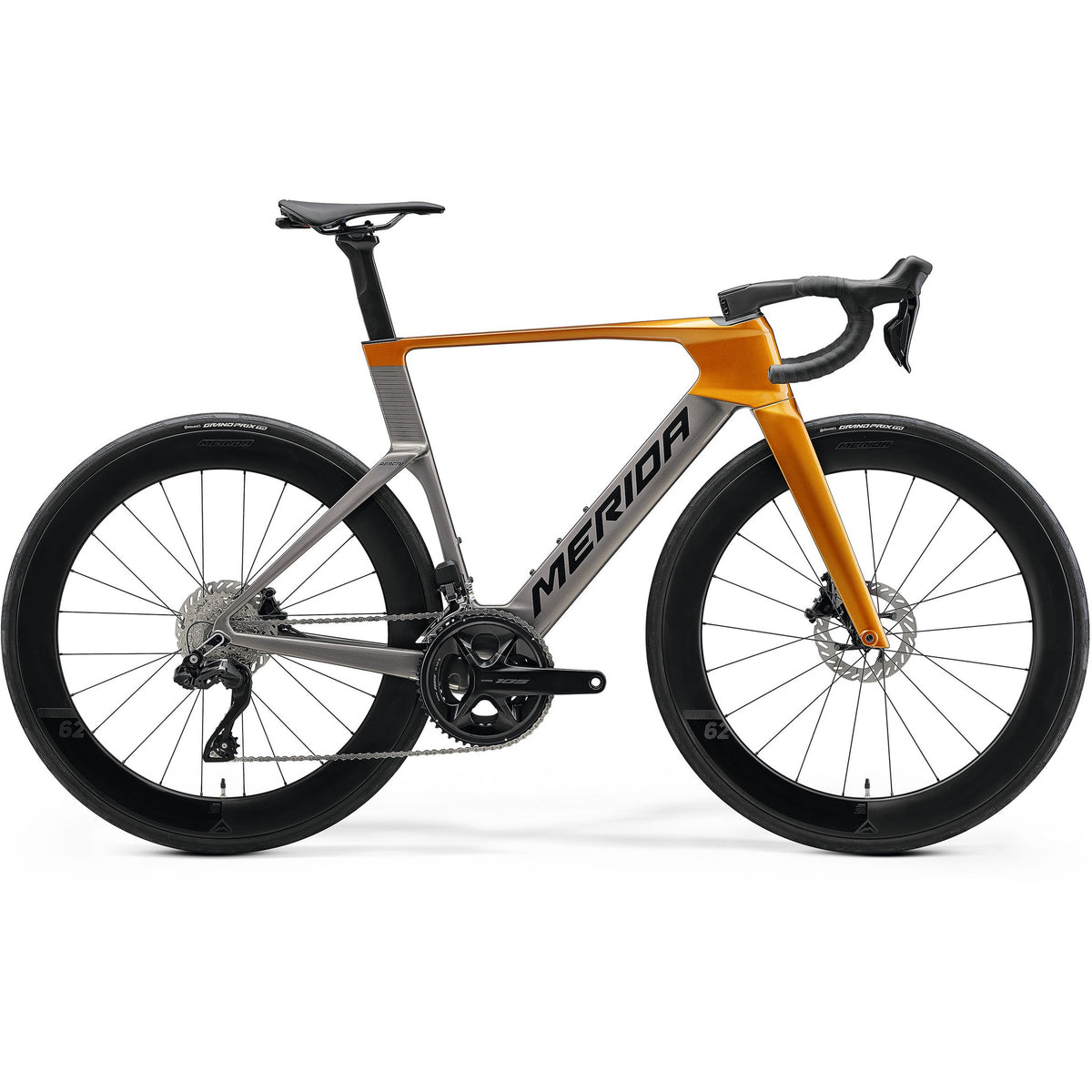

The Reacto Limited brings the current aero road platform within reach of riders who do not need a flagship groupset to enjoy going quickly. It is built around the Reacto CF3 V carbon frame with the matching CF3 V Disc carbon fork, running 100x12mm and 142x12mm thru-axles and a BB86 bottom bracket shell with a disc cooler, and takes tyres up to 700x32C.
Shimano 105 Di2 does the work: electronic 2x12 shifting front and rear, a 52-36 R7100 chainset and an 11-34 R7101 cassette, with 105 hydraulic disc brakes. The chainset carries a 4iiii PML300 and Precision 3 power meter on the left arm, which is not something you usually see at this level. Wheels are Team SL60 carbon, 62mm deep with a 22mm internal rim width on Vision V-200 Centerlock hubs, shod with Continental Grand Prix TR 700x28C tubeless ready tyres. A one-piece integrated carbon bar and stem, the Reacto V S-FLEX aero carbon seatpost and an Akero RS PAS T2.0 saddle with a mini tool in the mount finish it off. Sizing runs from XXS to XL, so it covers a wider fit range than most bikes in this bracket.
Features
- Reacto CF3 V carbon aero frame with matching CF3 V Disc carbon fork
- Clearance for tyres up to 700x32C
- Shimano 105 Di2 electronic 2x12 shifting, front and rear
- Shimano 105 R7100 52-36 chainset with a 4iiii PML300 and Precision 3 power meter on the left arm
- Shimano 105 R7101 11-34 12 speed cassette
- Shimano 105 hydraulic disc brakes
- Team SL60 carbon wheels, 62mm deep, 22mm internal rim width, Vision V-200 Centerlock hubs
- Continental Grand Prix TR 700x28C tubeless ready tyres
- One-piece integrated carbon bar and stem with Reacto V S-FLEX aero carbon seatpost
- Available in six sizes, XXS to XL
Specifications
Discipline Road
Material Carbon
Wheel Size 700c
Max Tyre 700x32C
Gearing 2x12
Brakes Hydraulic Disc
Frame - Reacto CF3 V; carbon; 700 x 32C max. tyre size; 100mm x 12mm / 142mm x 12mm axle standard; BB86. bottom bracket standard with disc cooler
Fork - Reacto CF3 V Disc; carbon; 700x32C max. wheel size
Headset - FSA ACR, SL bearing (Cone spacer: RCT-608)
Stem - Merida Team ONE-PIECE INTEGRATED; carbon
Handlebar - Merida Team SL 1P INTEGRATED; carbon; (3XS-S) - 380mm, (M-L) - 400mm, (XL) - 420mm
Grips - Merida ROAD Expert
Brake Type - Hydraulic Disc
Brake Levers - Shimano 105
Brakes - Front: Shimano 105; Disc Rear: Shimano 105; Disc
Wheels - Rims: Team SL60; carbon, 62mm rim depth, 22mm inner rim width Front Hub: Vision V-200; 100 x 12mm; 21 spoke, centrelock Rear Hub: Vision V-200; 142 x 12mm; 21 spoke, centrelock
Tyres - Front: Continental Grand Prix TR; 700x28C; fold; tubeless ready Rear: Continental Grand Prix TR; 700x28C; fold; tubeless ready
Wheel Size - 700c
Speeds - 24
Shifters - Front: Shimano 105 disc Di2 Rear: Shimano 105 disc Di2
Front Derailleur - Shimano 105 Di2
Rear Derailleur - Shimano 105 Di2
Chainset - Shimano 105 R7100; 52-36 teeth; Left arm 4iiii PML300+Precision 3 power meter; Crank Length: 3XS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BB71-41B; Pressfit 86.5mm
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Saddle - Akero RS PAS T2.0; V-mount adapter; incl. Merida minitool
Seat Post - Merida Reacto V S-FLEX; Aero Shape; in-line; Carbon
