Description
The Reacto has always been a class leading aero bike, combining state of the art aerodynamics with rider comfort.
The latest generation incorporated wider tyres for increased comfort, but adding wider tyres resulted in aerodynamic compromises so a myriad of small improvements were required to over-compensate.
In the World Tour no area can be ignored. Computational Fluid Dynamics (CFD) was used to model virtual wind tunnel performance, guiding the changes which offered the most aerodynamic benefit:
Tiny details like integrating the front Disc Cooler behind the fork and the rear disc caliper in the rear triangle and creating new bolt through axles with the thread integrated into the fork dropout minimise drag and improve aerodynamic performance.
The Reacto CF5 needs just 209 watts effort for 45 km/h speed,
All Reacto have powerful hydraulic disc brakes with chainstay mounted calipers for better brake force dissipation. The flat mount standard keeps everything neat whilst sitting calipers on CNC'd aluminium Disc Cooler fins helps reduce operating temperatures by up to 35%.
Cycling Weekly described it as 'without doubt one of the most complete bikes available on the market', Cyclingnews 'an utterly brilliant and faultless machine' and Cycling Plus were 'hugely impressed'.
Specifications
Discipline
Material
Front Travel
Rear Travel
Wheel Size 700c
Warranty
Frame - CF3 IV - carbon with the same geometry and aeroydanmic profiling as the CF5 IV with a more budget friendly carbon lay up. Tapered headtube, Disc Cooler, BB86 BB standard,142 x12mm axle standard. Max tyre size 700 x 30c
Fork - Reacto CF3 IV Disc; material: carbon; 700x30C max. tyre size
Headset - Merida Team SL (OP-203 neck)
Stem - Merida Expert SL 2PII; material: aluminium; -9 degree rise; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm
Handlebar - Merida Expert CW; material: aluminium; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide
Grip - Merida Road Expert
Brake Type - Hydraulic Disc
Brake Lever - Shimano 105
Front Brake - Shimano 105; Hydraulic disc with Shimano RT64; 160mm
Rear Brake - Shimano 105; Hydraulic disc with Shimano RT64; 160mm
Front Tyre - Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready
Rear Tyre - Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready
Wheel Size - 700c
Rim - Vision Team 35 Clincher Disc Centerlock; 19mm inner rim width; 35mm rim depth; material: aluminium; Tubeless tape ready
Spokes - Part of wheelset - Vision Team 35 Clincher Disc Centerlock
Front Hub - Part of wheelset - Vision Team 35 Clincher Disc Centerlock
Rear Hub - Part of wheelest - Vision Team 35 Clincher Disc Centerlock
Speeds - 24
Front Derailleur - Shimano 105 Di2
Rear Derailleur - Shimano 105 Di2
Shift Levers - Front: Shimano 105 Disc Di2, Rear: Shimano 105 Disc Di2
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Chainset - Shimano 105 R7100; 52-36 tooth chainset; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BB71-41B; Pressfit 86.5
Pedals - Not included
Saddle - Merida Expert SL; 6% recycled and 23% nature material; V-mount; incl. Merida minitool
Seat Post - Merida Team CW; Aero shape; 15mm layback; material: carbon

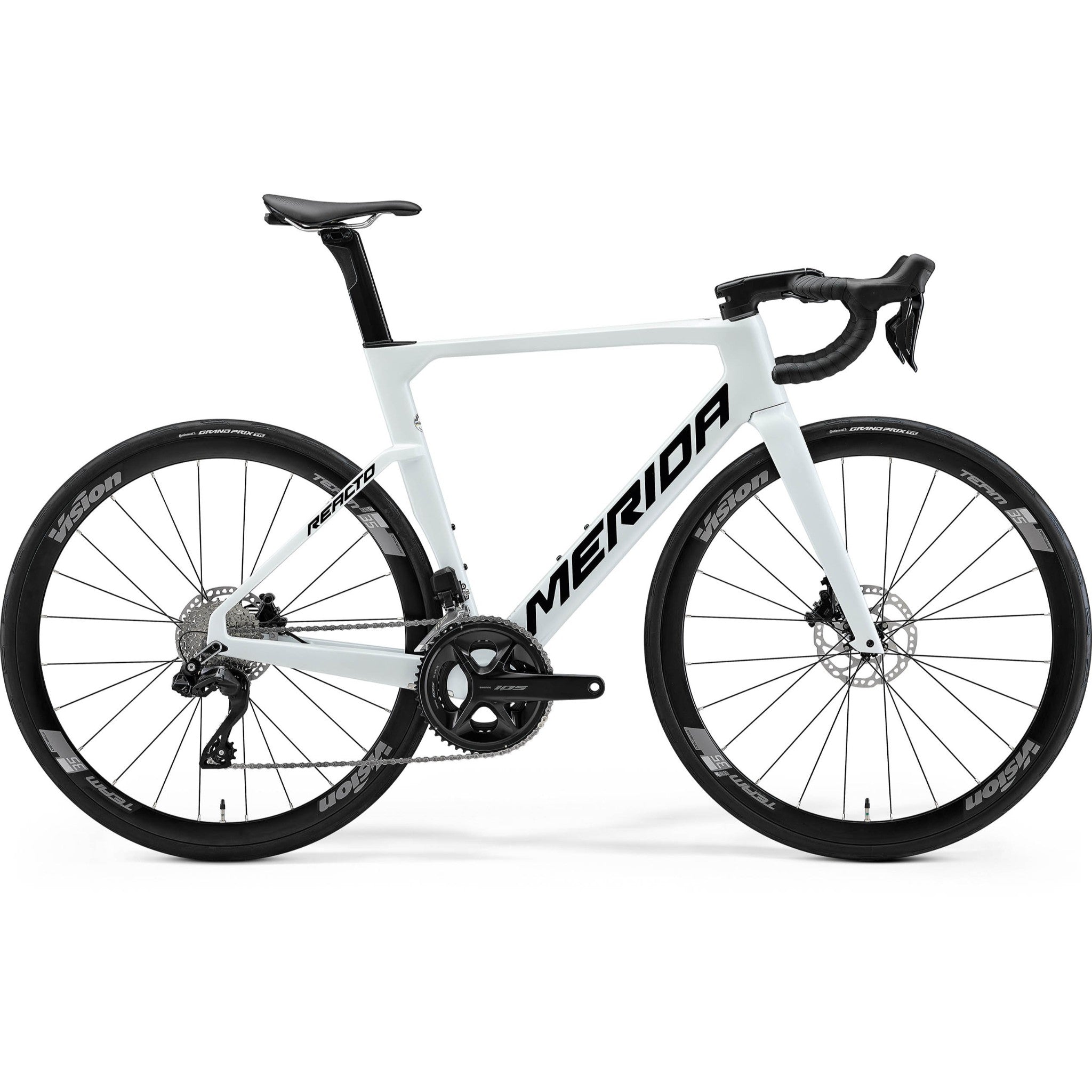

Merida Reacto 5000 2026
