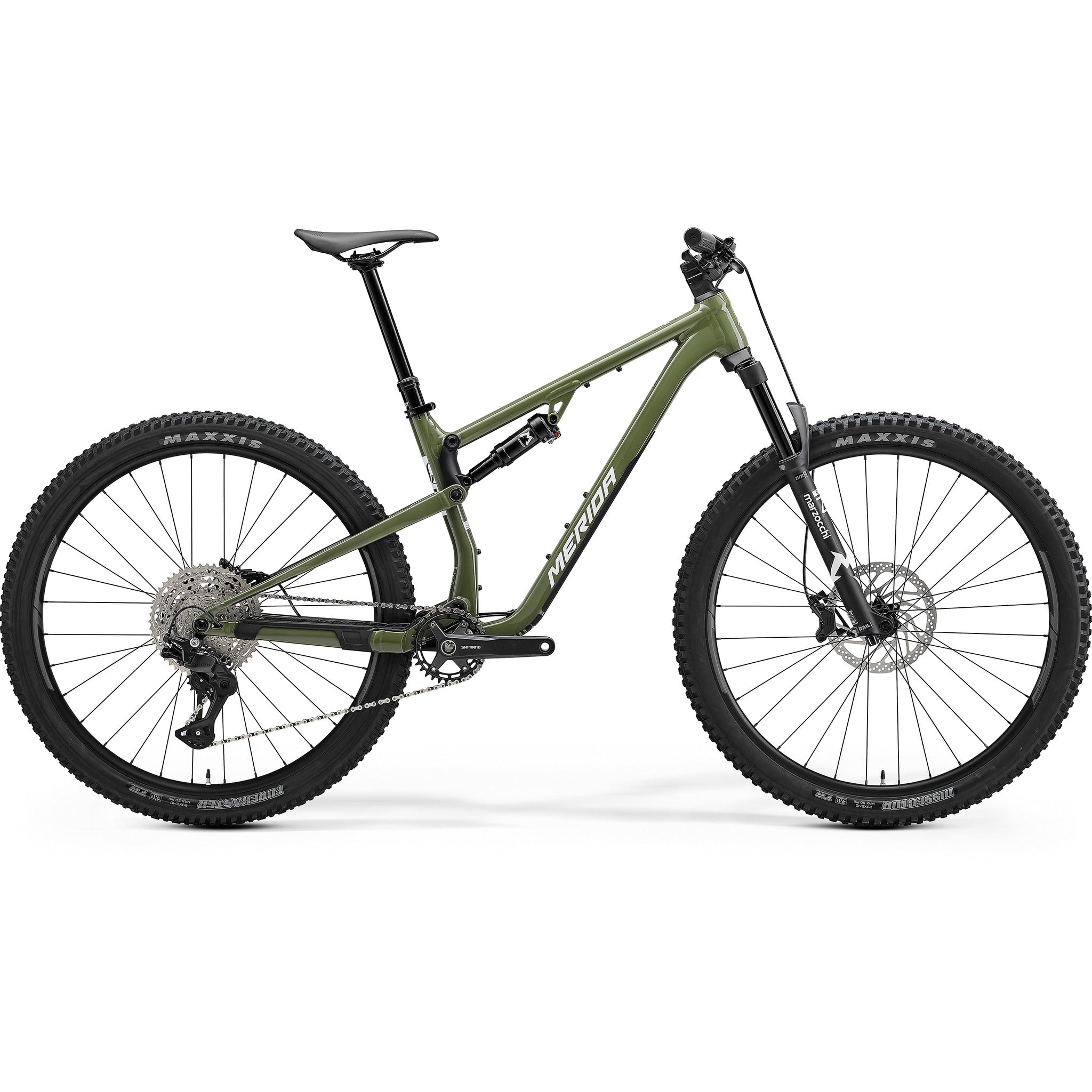

The One-Twenty 600 is the all-rounder of the short travel range, happy grinding out a long day and still keen when the trail turns down. It shares the Lite V aluminium frame with progressive trail geometry, Agilometer sizing, internal cable routing, Boost axles and a threaded bottom bracket.
Marzocchi handles both ends. A Bomber Z2 air fork gives 130mm of travel with a 44mm offset and a platform damper, matched to a Bomber inline shock with a lockout. It is not flashy suspension, but it is easy to set up and consistent once you have.
The drivetrain is a full 1x12 Shimano Deore M6200 group with a 10-51 cassette, an M7200 SGS derailleur and MT520 cranks. The brakes are mismatched on purpose and better for it: a four-piston Deore M6220 up front for power, a two-piston M6200 at the rear for modulation. Comp TR rims with a 29mm internal width are tubeless ready, and the tyres pair a Maxxis Dissector 29x2.4 EXO up front with a faster-rolling Forekaster 29x2.4 at the back. Dropper travel scales from 170mm to 230mm with frame size, and a minitool lives under the saddle.
Features
- Lite V aluminium frame with progressive trail geometry and Agilometer sizing
- Marzocchi Bomber Z2 air fork, 130mm travel, platform damper, 44mm offset
- Marzocchi Bomber inline rear shock with lockout
- 1x12 Shimano Deore M6200 drivetrain, 10-51 cassette, M7200 SGS derailleur
- Four-piston Shimano Deore M6220 front brake with a two-piston M6200 rear
- Maxxis Dissector 29x2.4 EXO front and Forekaster 29x2.4 rear, folding and tubeless ready
- Tubeless-ready rims with 29mm internal width on Shimano Centerlock hubs
- Size-specific dropper post, 170mm to 230mm travel with 25mm of adjustability
- Minitool integrated under the saddle
Specifications
Discipline MTB
Material Alloy
Front Travel 130mm
Wheel Size 29in
Frame - Lite V Aluminium, Progressive trail geometry, agilometer sizing system, rattle free internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, max tyre size - 2.5
Rear Shock - Marzocchi Bomber inline; lockout
Fork - Marzocchi Bomber Z2; Air; 130mm travel; Tapered; 44mm fork offset; platform; 29x2.6 max. wheel size
Headset - Acros ICR Merida external neck; Upper and lower IPS sealing
Stem - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise
Handlebar - Merida Comp TR; aluminium; 780mm wide; 20mm rise
Grips - Merida Comp TR
Brake Type - Hydraulic Disc
Brakes - Front: Shimano Deore M6220; 4 piston Rear: Shimano Deore M6200; 2 piston
Wheels - Rims: Merida Comp TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Double Butted Black stainless w/black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 spoke; Centerlock Rear Hub: Shimano TC500-MS-B; 148x12mm; 32 spoke; Centerlock
Tyres - Front: Maxxis Dissector; 29x2.4; fold; TR EXO Dual Rear: Maxxis Forekaster; 29x2.4; fold; TR Dual
Wheel Size - 29
Speeds - 12
Shifters - Front: Shimano SL-MT500-IL Rear: Shimano Deore M6200
Rear Derailleur - Shimano Deore M7200; SGS
Chainset - Shimano Deore MT520; 32 teeth; Crank Length: 170mm for all sizes
Bottom Bracket - Shimano BB-MT-501; 24mm
Chain - KMC X12
Cassette - Shimano Deore M6200; 10-51 teeth; 12 speed
Saddle - Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool
Seat Post - Merida Expert TR IV; 34.9mm diameter; in-line; 25mm travel adjustability; XShort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm
