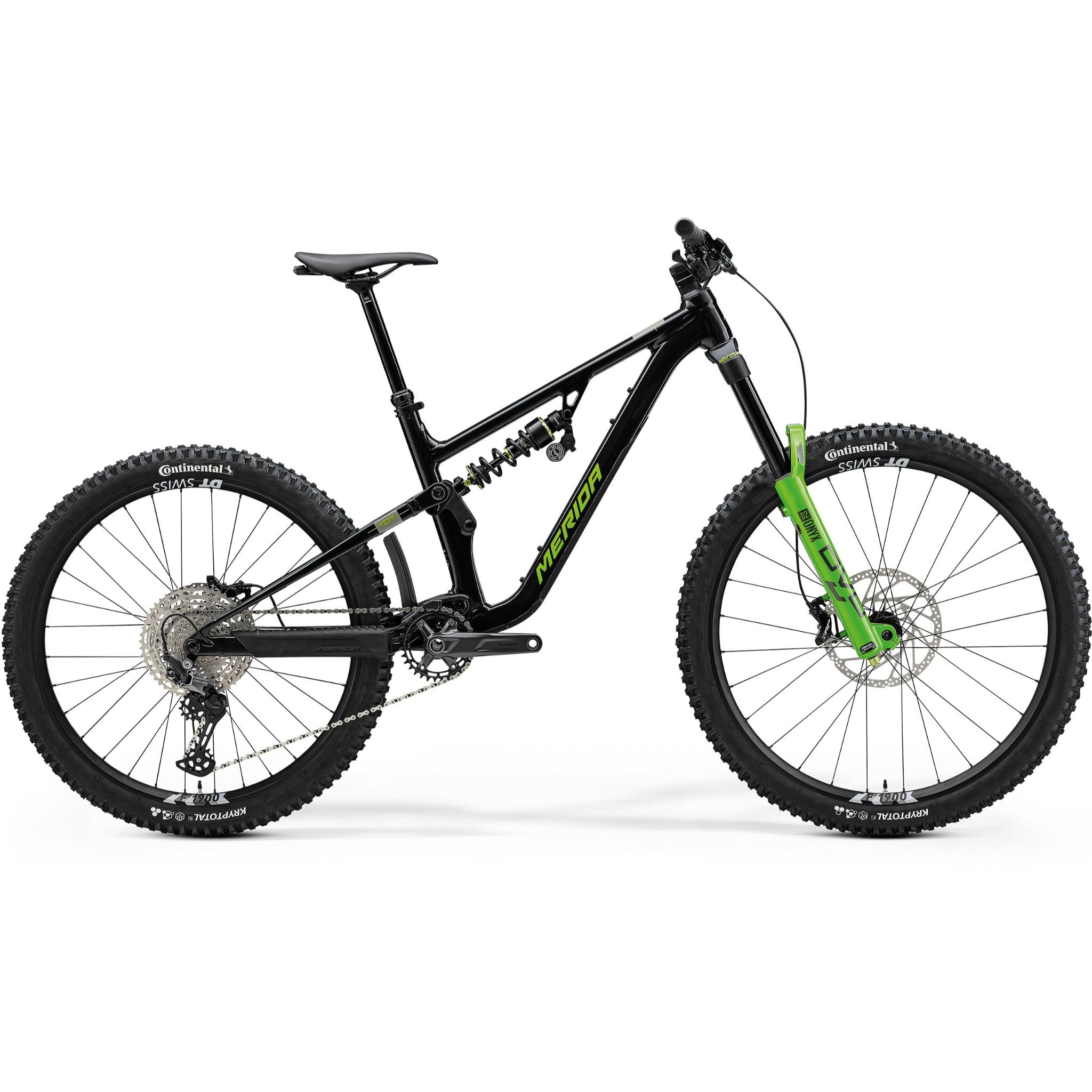

The One-Sixty FR 800 is the hardcore cousin of the One-Sixty 6000, MBUK's Enduro Bike of the Year. The testers singled out the 6000's proportions, supportive suspension and electrifying ride feel on some of the gnarliest trails they rode, and called it totally planted, thoroughly sorted and outrageously capable.
Merida's designers took that prize-winning pedigree and turned the fun up to 11. Built for ripping bike parks, the One-Sixty FR runs mixed wheels across all sizes, with a 29" front and 27.5" rear, and delivers more travel: 180mm up front from a DVO Onyx 38 fork and 171mm of coil-sprung travel at the rear from a DVO Jade X shock with size-specific spring rates. These aren't garage queens, they're built for endless hours of sending it, with the budget spent on the best tyres, brakes and suspension rather than lightweight parts that won't last.
The One-Sixty FR is designed for the toughest conditions and is rated to Category 5. Merida's Agilometer sizing lets you choose your reach independently of your height, the suspension becomes more progressive as you size up, and every size gets a 30-230mm travel-adjustable dropper. TRP Trail Evo 4-piston brakes with 220mm and 203mm rotors, a DT Swiss F1900 wheelset, Continental Kryptotal tyres and a Shimano Deore 1x12 drivetrain complete the build.
Features
- Tough Lite III aluminium frame, rated to Category 5
- 180mm DVO Onyx 38 D2 fork and DVO Jade X D2 coil shock with 171mm travel
- Mixed 29"/27.5" wheels on every size
- TRP Trail Evo 4-piston brakes with 220mm and 203mm rotors
- DT Swiss F1900 wheelset with Continental Kryptotal 2.4" tyres
- Shimano Deore 1x12 drivetrain with ISCG05 chain guide
- 30-230mm travel-adjustable dropper post
Specifications
DisciplineEnduro/
Freeride MaterialAluminium
Front Travel180mm
Rear Travel171mm
Wheel SizeMX (29"/
27.5") WarrantyLifetime (frame)
Frame - Lite III; aluminium; next generation enduro geometry; internal cable routing; long seatpost insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size 2.5"
Shock - DVO Jade X D2; coil; spring rates: XShort and Short 300, Mid 350, Long 400, XLong 450
Fork - DVO Onyx 38 D2; Air; 180mm travel; tapered; 44mm offset; 29"
Speeds - 12
Shift levers - Shimano Deore M6100
Rear derailleur - Shimano Deore M6100; SGS
Bottom bracket - Shimano BB-MT501; 24mm
Chain - KMC X12
Chainset - Shimano Deore MT512; 32 tooth with Merida Expert TR ISCG05; crank length 170mm (all sizes)
Cassette - Shimano Deore M6100; 10-51 teeth; 12 speed
Brake levers - TRP Trail Evo HD-M843
Front brake - TRP Trail Evo HD-M843; 4 piston hydraulic disc brake caliper with TRP RS01E; 220mm rotor
Rear brake - TRP Trail Evo HD-M843; 4 piston hydraulic disc brake caliper with TRP RS01E; 203mm rotor
Grips - Merida Expert EC
Handlebar - Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise, M/L/XL 30mm rise
Stem - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise; 40mm all sizes
Headset - Acros ICR Merida external neck; upper and lower IPS sealing
Saddle - Merida Comp SL; V-mount; made with 25% recycled material
Seatpost - Merida Team TR II; 34.9mm diameter; 0mm layback; all sizes 30-230mm seatpost travel
Wheel size - 29" front, 27.5" rear
Wheelset - DT Swiss F1900; 28mm inner rim width; aluminium; tubeless ready (tubeless tape and valves not included); front 29" 110x15mm, rear 27.5" 148x12mm
Spokes - Double butted black stainless
Front tyre - Continental Kryptotal-F; 29x2.4"; Kevlar bead; TR; Enduro casing; Soft compound
Rear tyre - Continental Kryptotal-R; 27.5x2.4"; Kevlar bead; TR; Downhill casing; Soft compound
One-Sixty FR 800 2025
- Enduro
- 180 / 171mm travel
- MX wheels
- Alloy frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The One-Sixty FR 800 is the hardcore cousin of the One-Sixty 6000, MBUK's Enduro Bike of the Year. The testers singled out the 6000's proportions, supportive suspension and electrifying ride feel on some of the gnarliest trails they rode, and called it totally planted, thoroughly sorted and outrageously capable.
Merida's designers took that prize-winning pedigree and turned the fun up to 11. Built for ripping bike parks, the One-Sixty FR runs mixed wheels across all sizes, with a 29" front and 27.5" rear, and delivers more travel: 180mm up front from a DVO Onyx 38 fork and 171mm of coil-sprung travel at the rear from a DVO Jade X shock with size-specific spring rates. These aren't garage queens, they're built for endless hours of sending it, with the budget spent on the best tyres, brakes and suspension rather than lightweight parts that won't last.
The One-Sixty FR is designed for the toughest conditions and is rated to Category 5. Merida's Agilometer sizing lets you choose your reach independently of your height, the suspension becomes more progressive as you size up, and every size gets a 30-230mm travel-adjustable dropper. TRP Trail Evo 4-piston brakes with 220mm and 203mm rotors, a DT Swiss F1900 wheelset, Continental Kryptotal tyres and a Shimano Deore 1x12 drivetrain complete the build.
Features
- Tough Lite III aluminium frame, rated to Category 5
- 180mm DVO Onyx 38 D2 fork and DVO Jade X D2 coil shock with 171mm travel
- Mixed 29"/27.5" wheels on every size
- TRP Trail Evo 4-piston brakes with 220mm and 203mm rotors
- DT Swiss F1900 wheelset with Continental Kryptotal 2.4" tyres
- Shimano Deore 1x12 drivetrain with ISCG05 chain guide
- 30-230mm travel-adjustable dropper post
Specifications
DisciplineEnduro/
Freeride MaterialAluminium
Front Travel180mm
Rear Travel171mm
Wheel SizeMX (29"/
27.5") WarrantyLifetime (frame)
Frame - Lite III; aluminium; next generation enduro geometry; internal cable routing; long seatpost insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size 2.5"
Shock - DVO Jade X D2; coil; spring rates: XShort and Short 300, Mid 350, Long 400, XLong 450
Fork - DVO Onyx 38 D2; Air; 180mm travel; tapered; 44mm offset; 29"
Speeds - 12
Shift levers - Shimano Deore M6100
Rear derailleur - Shimano Deore M6100; SGS
Bottom bracket - Shimano BB-MT501; 24mm
Chain - KMC X12
Chainset - Shimano Deore MT512; 32 tooth with Merida Expert TR ISCG05; crank length 170mm (all sizes)
Cassette - Shimano Deore M6100; 10-51 teeth; 12 speed
Brake levers - TRP Trail Evo HD-M843
Front brake - TRP Trail Evo HD-M843; 4 piston hydraulic disc brake caliper with TRP RS01E; 220mm rotor
Rear brake - TRP Trail Evo HD-M843; 4 piston hydraulic disc brake caliper with TRP RS01E; 203mm rotor
Grips - Merida Expert EC
Handlebar - Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise, M/L/XL 30mm rise
Stem - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise; 40mm all sizes
Headset - Acros ICR Merida external neck; upper and lower IPS sealing
Saddle - Merida Comp SL; V-mount; made with 25% recycled material
Seatpost - Merida Team TR II; 34.9mm diameter; 0mm layback; all sizes 30-230mm seatpost travel
Wheel size - 29" front, 27.5" rear
Wheelset - DT Swiss F1900; 28mm inner rim width; aluminium; tubeless ready (tubeless tape and valves not included); front 29" 110x15mm, rear 27.5" 148x12mm
Spokes - Double butted black stainless
Front tyre - Continental Kryptotal-F; 29x2.4"; Kevlar bead; TR; Enduro casing; Soft compound
Rear tyre - Continental Kryptotal-R; 27.5x2.4"; Kevlar bead; TR; Downhill casing; Soft compound
