The One-Sixty FR 400 is all about full-on fun at a great price. These aren't bikes for polishing in the garage, they're built for endless hours of sending it. Around a tough aluminium frame, the components are chosen to give you the best tyres, brakes and suspension possible for the money, rather than lightweight kit that won't last the course.
The One-Sixty FR is designed for the toughest conditions and is rated to Category 5. It delivers 180mm of travel up front from a DVO Onyx 38 fork and 171mm at the rear, controlled by a coil-sprung DVO Jade X shock with a size-specific spring rate. A flip chip lets you run it as a mullet, with a 29" front and 27.5" rear, or switch to full 29".
Merida's Agilometer sizing takes your riding style into account, so you can choose a longer or shorter reach independently of your height, and the suspension becomes more progressive as you size up. Every size gets a long-travel dropper post, and Wire Port cable routing plus a reliable threaded bottom bracket round out a seriously capable package. SRAM DB4 4-piston brakes, Continental Kryptotal tyres and a Shimano Cues 1x10 drivetrain complete the build.
Features
- Tough Lite III aluminium frame, rated to Category 5
- 180mm DVO Onyx 38 D3 fork and DVO Jade X coil shock with 171mm travel
- Flip chip for mixed wheels or full 29"
- SRAM DB4 4-piston brakes with 203mm and 200mm rotors
- Continental Kryptotal soft-compound Enduro casing tyres
- Shimano Cues 1x10 drivetrain with 11-48T cassette
- Long-travel dropper post on every size, threaded BB, trail mount and bottle bosses
Sizing
- XShort: 145cm - 165cm
- Short: 155cm - 175cm
- Mid: 165cm - 185cm
- Long: 175cm - 195cm
- XLong: 185cm and over
Merida encourages riders to consider their riding style when choosing a frame size. For example, a 175cm rider could choose a Short frame for agility, Mid for a balanced ride or Long for stability.
Specifications
DisciplineEnduro/
Freeride MaterialAluminium
Front Travel180mm
Rear Travel171mm
Wheel SizeMX (29"/
27.5") WarrantyLifetime
Frame - Lite III; aluminium; next generation enduro geometry; internal cable routing; long seatpost insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size 2.5"
Rear shock - DVO Jade X Core; coil; spring rate: XShort 300lbs, Short 350lbs, Mid 400lbs, Long 450lbs, XLong 500lbs
Fork - DVO Onyx 38 D3; Air; 180mm travel; tapered; 44mm fork offset; 29x2.60" max tyre size
Headset - Acros ICR Merida external neck; upper and lower IPS sealing
Stem - Merida Comp TR; material: aluminium; 35mm diameter; 0 degree rise; length: 40mm
Handlebar - Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
Grips - Merida Comp TR
Brake type - Hydraulic disc
Front brake - SRAM DB4; 4 piston with SRAM CenterLine; 203mm
Rear brake - SRAM DB4; 4 piston with SRAM CenterLine; 200mm
Front tyre - Continental Kryptotal-F; 29x2.4"; Kevlar bead; TR; Enduro casing; Soft compound
Rear tyre - Continental Kryptotal-R; 27.5x2.4"; Kevlar bead; TR; Enduro casing; Soft compound
Wheel size - 29" front, 27.5" rear
Rims - Merida Comp TR II; 28mm inner rim width; material: aluminium; tubeless ready (Stans 30mm tubeless tape installed, valves not included); front 29", rear 27.5"
Spokes - Double butted black stainless with black nipples
Front hub - Novatec SL-Team D041SB-B15; 110x15mm; 32 spoke; 6 bolt
Rear hub - Novatec SL-Team D442SB-B12-A4A-HG; 148x12mm; 32 spoke; 6 bolt
Speeds - 10
Rear derailleur - Shimano Cues U6000; GS
Shift levers - Rear: Shimano Cues U6000
Chain - KMC xGlide
Cassette - Shimano LG300; 11-48 teeth; 10 speed
Chainset - Merida Expert TR II; 32 tooth; crank length: 165mm
Bottom bracket - Samox BSA 24mm EB2401
Pedals - Not included
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seatpost - Merida Expert TR II; 34.9mm diameter; in-line; XShort-Short 150mm, Mid 170mm, Long 200mm, XLong 230mm seatpost travel

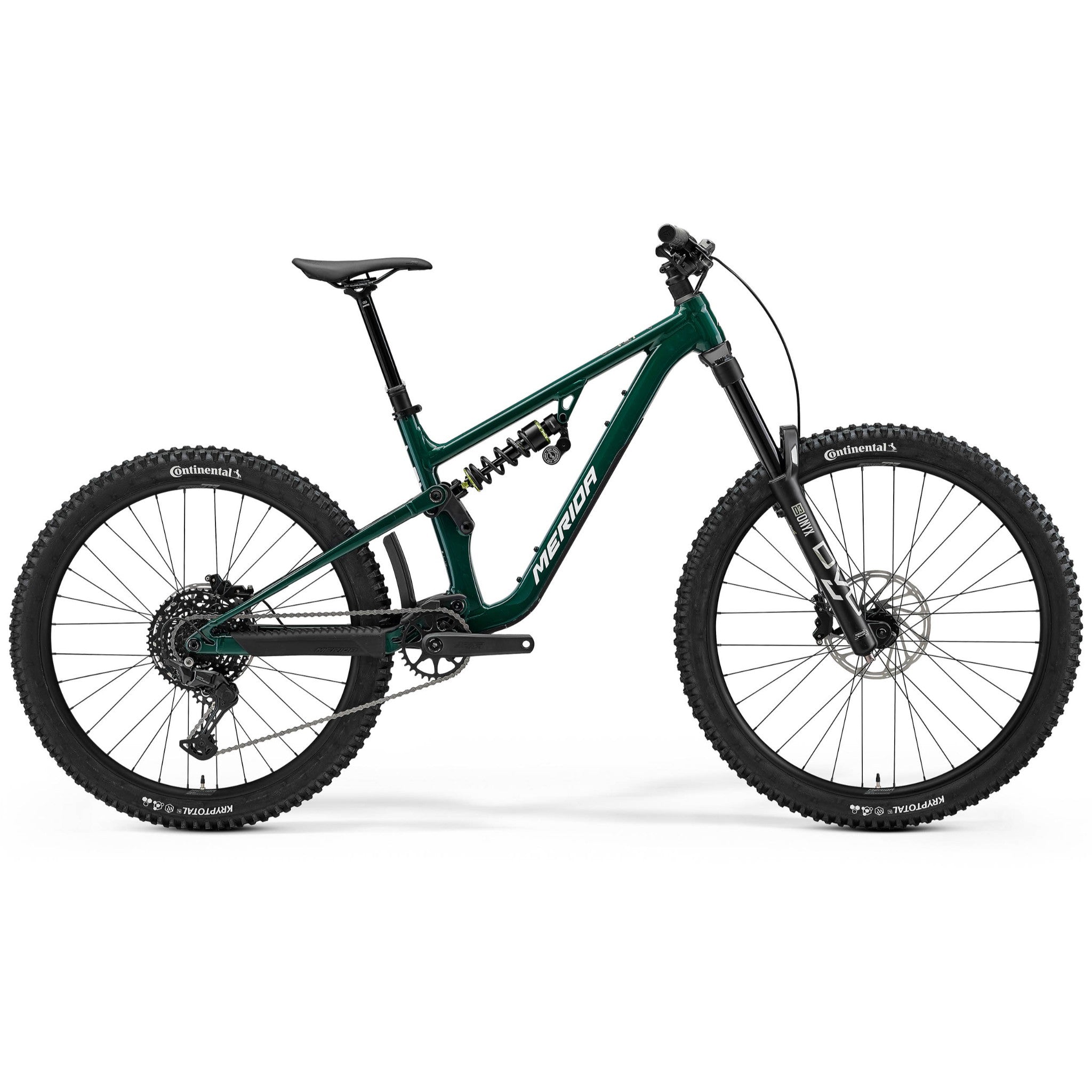

One Sixty FR 400 2026
- Enduro
- 180 / 171mm travel
- Alloy frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The One-Sixty FR 400 is all about full-on fun at a great price. These aren't bikes for polishing in the garage, they're built for endless hours of sending it. Around a tough aluminium frame, the components are chosen to give you the best tyres, brakes and suspension possible for the money, rather than lightweight kit that won't last the course.
The One-Sixty FR is designed for the toughest conditions and is rated to Category 5. It delivers 180mm of travel up front from a DVO Onyx 38 fork and 171mm at the rear, controlled by a coil-sprung DVO Jade X shock with a size-specific spring rate. A flip chip lets you run it as a mullet, with a 29" front and 27.5" rear, or switch to full 29".
Merida's Agilometer sizing takes your riding style into account, so you can choose a longer or shorter reach independently of your height, and the suspension becomes more progressive as you size up. Every size gets a long-travel dropper post, and Wire Port cable routing plus a reliable threaded bottom bracket round out a seriously capable package. SRAM DB4 4-piston brakes, Continental Kryptotal tyres and a Shimano Cues 1x10 drivetrain complete the build.
Features
- Tough Lite III aluminium frame, rated to Category 5
- 180mm DVO Onyx 38 D3 fork and DVO Jade X coil shock with 171mm travel
- Flip chip for mixed wheels or full 29"
- SRAM DB4 4-piston brakes with 203mm and 200mm rotors
- Continental Kryptotal soft-compound Enduro casing tyres
- Shimano Cues 1x10 drivetrain with 11-48T cassette
- Long-travel dropper post on every size, threaded BB, trail mount and bottle bosses
Sizing
- XShort: 145cm - 165cm
- Short: 155cm - 175cm
- Mid: 165cm - 185cm
- Long: 175cm - 195cm
- XLong: 185cm and over
Merida encourages riders to consider their riding style when choosing a frame size. For example, a 175cm rider could choose a Short frame for agility, Mid for a balanced ride or Long for stability.
Specifications
DisciplineEnduro/
Freeride MaterialAluminium
Front Travel180mm
Rear Travel171mm
Wheel SizeMX (29"/
27.5") WarrantyLifetime
Frame - Lite III; aluminium; next generation enduro geometry; internal cable routing; long seatpost insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size 2.5"
Rear shock - DVO Jade X Core; coil; spring rate: XShort 300lbs, Short 350lbs, Mid 400lbs, Long 450lbs, XLong 500lbs
Fork - DVO Onyx 38 D3; Air; 180mm travel; tapered; 44mm fork offset; 29x2.60" max tyre size
Headset - Acros ICR Merida external neck; upper and lower IPS sealing
Stem - Merida Comp TR; material: aluminium; 35mm diameter; 0 degree rise; length: 40mm
Handlebar - Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
Grips - Merida Comp TR
Brake type - Hydraulic disc
Front brake - SRAM DB4; 4 piston with SRAM CenterLine; 203mm
Rear brake - SRAM DB4; 4 piston with SRAM CenterLine; 200mm
Front tyre - Continental Kryptotal-F; 29x2.4"; Kevlar bead; TR; Enduro casing; Soft compound
Rear tyre - Continental Kryptotal-R; 27.5x2.4"; Kevlar bead; TR; Enduro casing; Soft compound
Wheel size - 29" front, 27.5" rear
Rims - Merida Comp TR II; 28mm inner rim width; material: aluminium; tubeless ready (Stans 30mm tubeless tape installed, valves not included); front 29", rear 27.5"
Spokes - Double butted black stainless with black nipples
Front hub - Novatec SL-Team D041SB-B15; 110x15mm; 32 spoke; 6 bolt
Rear hub - Novatec SL-Team D442SB-B12-A4A-HG; 148x12mm; 32 spoke; 6 bolt
Speeds - 10
Rear derailleur - Shimano Cues U6000; GS
Shift levers - Rear: Shimano Cues U6000
Chain - KMC xGlide
Cassette - Shimano LG300; 11-48 teeth; 10 speed
Chainset - Merida Expert TR II; 32 tooth; crank length: 165mm
Bottom bracket - Samox BSA 24mm EB2401
Pedals - Not included
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seatpost - Merida Expert TR II; 34.9mm diameter; in-line; XShort-Short 150mm, Mid 170mm, Long 200mm, XLong 230mm seatpost travel
