At the top of the aluminium One-Sixty range, the 700 pairs the Lite III frame with suspension and a drivetrain you would happily race. The geometry is the brand's Next Generation enduro shape, the rear end runs the FAST kinematic, and a flip chip lets you choose a full 29er or a mullet depending on the trails you ride.
A RockShox Zeb Select air fork provides 170mm of travel on a 44mm offset, and a Vivid Select shock with a platform setting looks after the back end. It is a properly capable pairing: the Zeb chassis is stiff enough for hard, repeated impacts, and the Vivid is at its best on the long, rough descents where an inline shock starts to feel busy.
The drivetrain is SRAM's Eagle 90 Transmission, a direct-mount T-Type setup with an XS-1270 11-52 cassette, Eagle 70 Transmission cranks with a bash guard and a Flattop chain. Shifting stays precise even after the derailleur has taken a knock, which is rather the point of T-Type. Braking comes from SRAM Maven four-piston callipers.
Wheels are Reynolds 309 Enduro Comp rims with a 30mm internal width and tubeless tape pre-installed, laced to Shimano Centerlock hubs, running Continental Kryptotal tyres in Enduro casing and soft compound: a Kryptotal-F 29x2.4 up front, with a Kryptotal-R at the rear in 27.5x2.4 on smaller frames or 29x2.4 on the larger sizes. The dropper offers 170mm to 230mm of travel with 25mm of adjustability, and there is a minitool hidden under the saddle.
Features
- Lite III aluminium frame with Next Generation enduro geometry and Agilometer sizing
- FAST kinematic rear suspension
- Flip chip for a full 29er or mullet wheel setup
- RockShox Zeb Select air fork, 170mm travel, 44mm offset
- RockShox Vivid Select rear shock with platform damping
- SRAM Eagle 90 Transmission T-Type drivetrain, XS-1270 11-52 cassette, Flattop chain
- SRAM Eagle 70 Transmission cranks with bash guard, DUB BSA 73 wide bottom bracket
- SRAM Maven four-piston hydraulic disc brakes
- Reynolds 309 Enduro Comp rims, 30mm internal width, tubeless tape pre-installed
- Continental Kryptotal-F front and Kryptotal-R rear, Enduro casing, soft compound
Specifications
Discipline MTB
Material Alloy
Front Travel 170mm
Wheel Size 29in
Frame - Lite III Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5
Rear Shock - Rock Shox Vivid Select; platform
Fork - Rock Shox Zeb Select; Air; 170mm travel; Tapered; 44mm fork offset; 29x2.6 max. wheel size
Headset - Acros ICR Merida external neck; Upper and lower IPS sealing
Stem - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise
Handlebar - Merida Expert TR II; aluminium; 780mm wide; 30mm rise
Grips - Merida Expert TR; recycled material
Brake Type - Hydraulic Disc
Brakes - Front: Sram Maven; 4 piston Rear: Sram Maven; 4 piston
Wheels - Rims: Reynolds 309 Enduro Comp; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape installed); rear 27.5 up to Size M / L & XL rear full 29 Spokes: Double Butted Black stainless w/black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 spoke; Centerlock Rear Hub: Shimano TC600-HM-B; 148x12mm; 32 spoke; Centerlock
Tyres - Front: Continental Kryptotal-F; 29x2.4; fold; TR; Enduro casing; Soft compund Rear: Continental Kryptotal-R; 27.5x2.4 XS/S/M 29x2.4 L/XL; fold; Enduro casing, soft compound
Wheel Size - 29
Speeds - 12
Shifters - Front: Sram dropper lever MMX Rear: Sram Eagle 90 Transmission MMX
Rear Derailleur - Sram Eagle 90 Transmission; T-Type
Chainset - Sram Eagle 70 Transmission; 32 teeth; 1 guard; Crank Length: 165mm for all sizes
Bottom Bracket - Sram DUB BSA 73 MTB Wide
Chain - Sram Eagle 70 Transmission; Flattop
Cassette - Sram XS-1270 Eagle Transmission; 11-52 teeth; 12 speed
Saddle - Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool
Seat Post - Merida Expert TR IV; 34.9mm diameter; in-line; 25mm travel adjustability; XShort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm

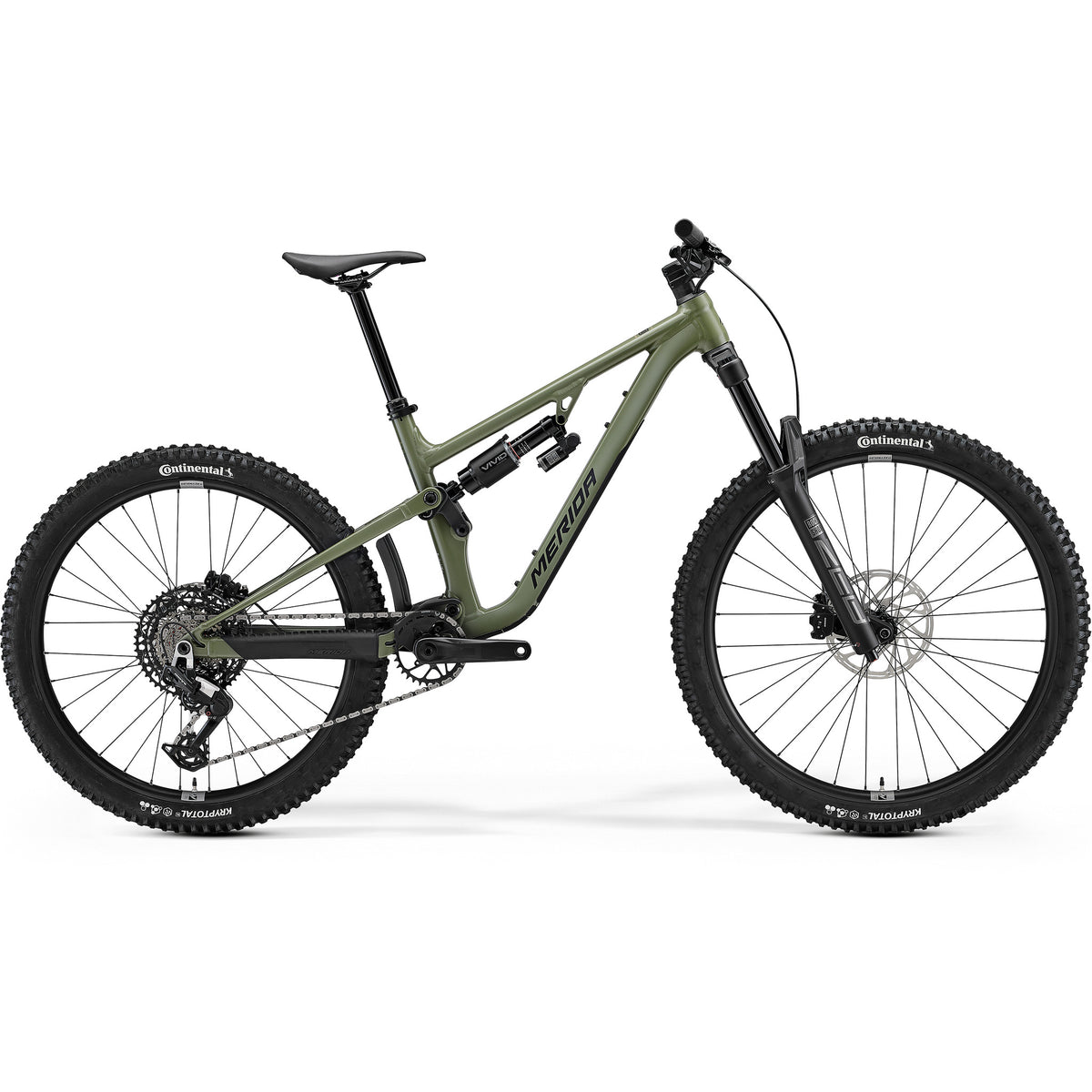

One-Sixty 700 2027
Order within [time] for delivery by [date]
90 Day Returns
At the top of the aluminium One-Sixty range, the 700 pairs the Lite III frame with suspension and a drivetrain you would happily race. The geometry is the brand's Next Generation enduro shape, the rear end runs the FAST kinematic, and a flip chip lets you choose a full 29er or a mullet depending on the trails you ride.
A RockShox Zeb Select air fork provides 170mm of travel on a 44mm offset, and a Vivid Select shock with a platform setting looks after the back end. It is a properly capable pairing: the Zeb chassis is stiff enough for hard, repeated impacts, and the Vivid is at its best on the long, rough descents where an inline shock starts to feel busy.
The drivetrain is SRAM's Eagle 90 Transmission, a direct-mount T-Type setup with an XS-1270 11-52 cassette, Eagle 70 Transmission cranks with a bash guard and a Flattop chain. Shifting stays precise even after the derailleur has taken a knock, which is rather the point of T-Type. Braking comes from SRAM Maven four-piston callipers.
Wheels are Reynolds 309 Enduro Comp rims with a 30mm internal width and tubeless tape pre-installed, laced to Shimano Centerlock hubs, running Continental Kryptotal tyres in Enduro casing and soft compound: a Kryptotal-F 29x2.4 up front, with a Kryptotal-R at the rear in 27.5x2.4 on smaller frames or 29x2.4 on the larger sizes. The dropper offers 170mm to 230mm of travel with 25mm of adjustability, and there is a minitool hidden under the saddle.
Features
- Lite III aluminium frame with Next Generation enduro geometry and Agilometer sizing
- FAST kinematic rear suspension
- Flip chip for a full 29er or mullet wheel setup
- RockShox Zeb Select air fork, 170mm travel, 44mm offset
- RockShox Vivid Select rear shock with platform damping
- SRAM Eagle 90 Transmission T-Type drivetrain, XS-1270 11-52 cassette, Flattop chain
- SRAM Eagle 70 Transmission cranks with bash guard, DUB BSA 73 wide bottom bracket
- SRAM Maven four-piston hydraulic disc brakes
- Reynolds 309 Enduro Comp rims, 30mm internal width, tubeless tape pre-installed
- Continental Kryptotal-F front and Kryptotal-R rear, Enduro casing, soft compound
Specifications
Discipline MTB
Material Alloy
Front Travel 170mm
Wheel Size 29in
Frame - Lite III Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5
Rear Shock - Rock Shox Vivid Select; platform
Fork - Rock Shox Zeb Select; Air; 170mm travel; Tapered; 44mm fork offset; 29x2.6 max. wheel size
Headset - Acros ICR Merida external neck; Upper and lower IPS sealing
Stem - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise
Handlebar - Merida Expert TR II; aluminium; 780mm wide; 30mm rise
Grips - Merida Expert TR; recycled material
Brake Type - Hydraulic Disc
Brakes - Front: Sram Maven; 4 piston Rear: Sram Maven; 4 piston
Wheels - Rims: Reynolds 309 Enduro Comp; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape installed); rear 27.5 up to Size M / L & XL rear full 29 Spokes: Double Butted Black stainless w/black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 spoke; Centerlock Rear Hub: Shimano TC600-HM-B; 148x12mm; 32 spoke; Centerlock
Tyres - Front: Continental Kryptotal-F; 29x2.4; fold; TR; Enduro casing; Soft compund Rear: Continental Kryptotal-R; 27.5x2.4 XS/S/M 29x2.4 L/XL; fold; Enduro casing, soft compound
Wheel Size - 29
Speeds - 12
Shifters - Front: Sram dropper lever MMX Rear: Sram Eagle 90 Transmission MMX
Rear Derailleur - Sram Eagle 90 Transmission; T-Type
Chainset - Sram Eagle 70 Transmission; 32 teeth; 1 guard; Crank Length: 165mm for all sizes
Bottom Bracket - Sram DUB BSA 73 MTB Wide
Chain - Sram Eagle 70 Transmission; Flattop
Cassette - Sram XS-1270 Eagle Transmission; 11-52 teeth; 12 speed
Saddle - Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool
Seat Post - Merida Expert TR IV; 34.9mm diameter; in-line; 25mm travel adjustability; XShort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm
