  • Merida One-Sixty 700 2023

Description

The One-Sixty 700 gets all the cutting edge enduro performance of Merida's radical new design but with a high-value and fully featured all-aluminium frame. That means hard-hitting modern geometry with the new FAST kinematic suspension that delivers a chaos taming ride alongside quality Marzocchi and Fox suspension. Shimano's proven 12-speed Deore drivetrain means reliable shifts time after time, while four-piston brakes make short work of keeping everything under control.

The One-Sixty is a radical, all-new design that pushes Merida's hard-hitting enduro platform to new heights. Just as well, because once it's there it's ready to rip the longest, toughest descents too. Merida's new suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162mm travel) or mixed 29/27.5" setup (171mm travel), the geometry is preserved. There's a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170mm fork to deal with downhill trail chaos. New sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package, while carbon frame models offer on-board tool storage and FidLock magnetic bottle cages.



Merida Sizing -

  • X-Short: 145cm - 165cm
  • Short: 155cm - 175cm
  • Mid: 165cm - 185cm
  • Long: 175cm - 195cm
  • X-Long: 185cm+


Merida's latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.

For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.

Contact us at support@biketart.com if you wish to discuss which may work for you.



Specifications

  • One-Sixty 700
  • Discipline Enduro/Trail

  • Material Aluminium

  • Front Travel 170mm

  • Rear Travel 171mm/162mm

  • Wheel Size MX (XS/S/M), 29" (L/XL)

  • Warranty Lifetime (frame)



FRAME - ONE-SIXTY LITE III - Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
SHOCK - FOX Float X Performance
FORK - Marzocchi Z1; Air; 170mm travel; Tapered; 44mm fork offset; Max tyre size: 29" x 2.6
RIM - MERIDA EXPERT TR
HUBS - Shimano SLX
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR DD 3C MaxxGrip
REAR TYRE - Maxxis DHR II; 27.5" x 2.4" for XS/S & M; 29" x 2.4" for L & XL; Kevlar bead, folding; TR DD 3C MaxxTerra
HUBS - MERIDA EXPERT TR
CRANK - Race Face Aeffect
BOTTOM BRACKET - Race Face BSA 68/73 – 24mm
CASSETTE - Shimano Deore M6100
CHAIN - KMC X12
SHIFTERS - Shimano SL -MT500-IL / Shimano XT
REAR DERAILLEUR - Shimano SLX M7100 Shadow+
BRAKES - Shimano SLX M7120 4 piston hydraulic disc
ROTORS - Shimano RT64 203mm rotor
HEADSET - MERIDA 8158
STEM - MERIDA EXPERT eTRII
STEM SIZE - 40mm
HANDLEBAR - MERIDA TEAM TR
GRIP - MERIDA EXPERT EC
SEAT POST - MERIDA TEAM TR
SADDLE - MERIDA EXPERT SL
SEAT CLAMP - MERIDA EXPERT

PEDALS - Not Included

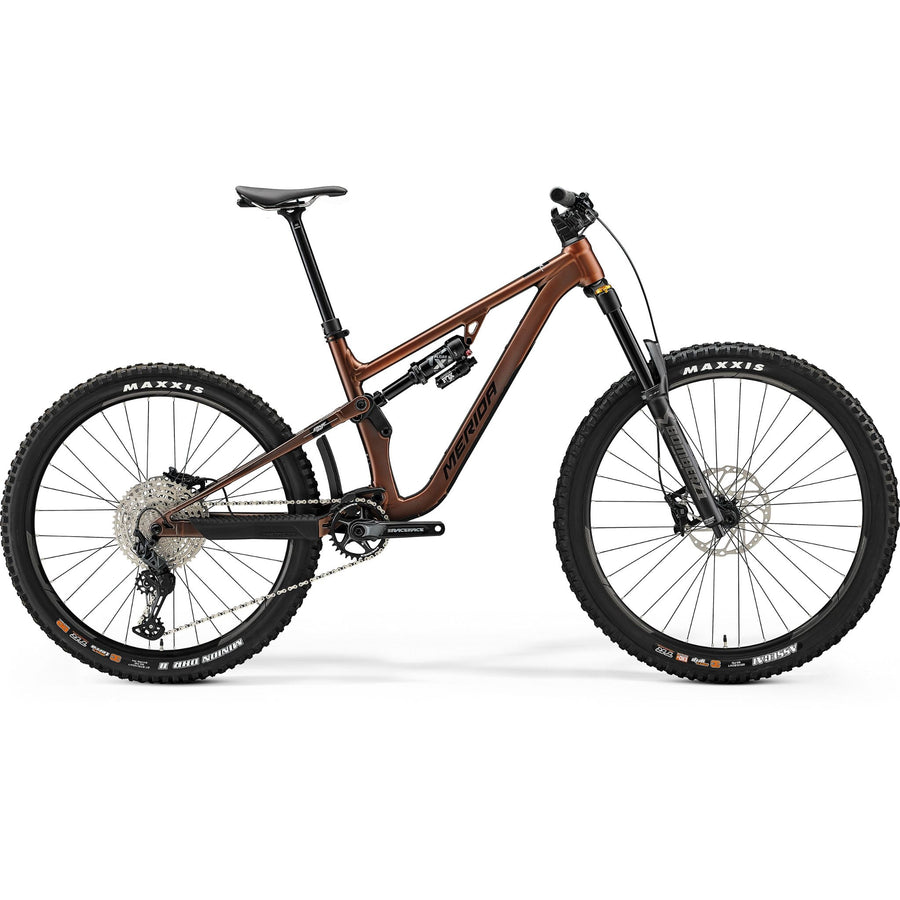

Merida One-Sixty 700 2023

SKU: N237 / Barcode: 4710949850739

The One-Sixty 700 gets all the cutting edge enduro performance of Merida's radical new design but with a high-value and fully featured all-aluminium frame. That means hard-hitting modern geometry with...

Sale price £2,474.95 Regular price RRP £3,300.00 SAVE 25%
Colour

Size

In stock with supplier: despatched in 2-3 days

90 Day Returns -

Description

The One-Sixty 700 gets all the cutting edge enduro performance of Merida's radical new design but with a high-value and fully featured all-aluminium frame. That means hard-hitting modern geometry with the new FAST kinematic suspension that delivers a chaos taming ride alongside quality Marzocchi and Fox suspension. Shimano's proven 12-speed Deore drivetrain means reliable shifts time after time, while four-piston brakes make short work of keeping everything under control.

The One-Sixty is a radical, all-new design that pushes Merida's hard-hitting enduro platform to new heights. Just as well, because once it's there it's ready to rip the longest, toughest descents too. Merida's new suspension system uses a flexstay design with an adjustable rocker, so whether you choose to run it as a full 29er (162mm travel) or mixed 29/27.5" setup (171mm travel), the geometry is preserved. There's a radically steep 79° seat tube angle for goat-like climbing and slack 64° head angle plus 170mm fork to deal with downhill trail chaos. New sizing allows riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package, while carbon frame models offer on-board tool storage and FidLock magnetic bottle cages.



Merida Sizing -

  • X-Short: 145cm - 165cm
  • Short: 155cm - 175cm
  • Mid: 165cm - 185cm
  • Long: 175cm - 195cm
  • X-Long: 185cm+


Merida's latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.

For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.

Contact us at support@biketart.com if you wish to discuss which may work for you.



Specifications

  • One-Sixty 700
  • Discipline Enduro/Trail

  • Material Aluminium

  • Front Travel 170mm

  • Rear Travel 171mm/162mm

  • Wheel Size MX (XS/S/M), 29" (L/XL)

  • Warranty Lifetime (frame)



FRAME - ONE-SIXTY LITE III - Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
SHOCK - FOX Float X Performance
FORK - Marzocchi Z1; Air; 170mm travel; Tapered; 44mm fork offset; Max tyre size: 29" x 2.6
RIM - MERIDA EXPERT TR
HUBS - Shimano SLX
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR DD 3C MaxxGrip
REAR TYRE - Maxxis DHR II; 27.5" x 2.4" for XS/S & M; 29" x 2.4" for L & XL; Kevlar bead, folding; TR DD 3C MaxxTerra
HUBS - MERIDA EXPERT TR
CRANK - Race Face Aeffect
BOTTOM BRACKET - Race Face BSA 68/73 – 24mm
CASSETTE - Shimano Deore M6100
CHAIN - KMC X12
SHIFTERS - Shimano SL -MT500-IL / Shimano XT
REAR DERAILLEUR - Shimano SLX M7100 Shadow+
BRAKES - Shimano SLX M7120 4 piston hydraulic disc
ROTORS - Shimano RT64 203mm rotor
HEADSET - MERIDA 8158
STEM - MERIDA EXPERT eTRII
STEM SIZE - 40mm
HANDLEBAR - MERIDA TEAM TR
GRIP - MERIDA EXPERT EC
SEAT POST - MERIDA TEAM TR
SADDLE - MERIDA EXPERT SL
SEAT CLAMP - MERIDA EXPERT

PEDALS - Not Included
