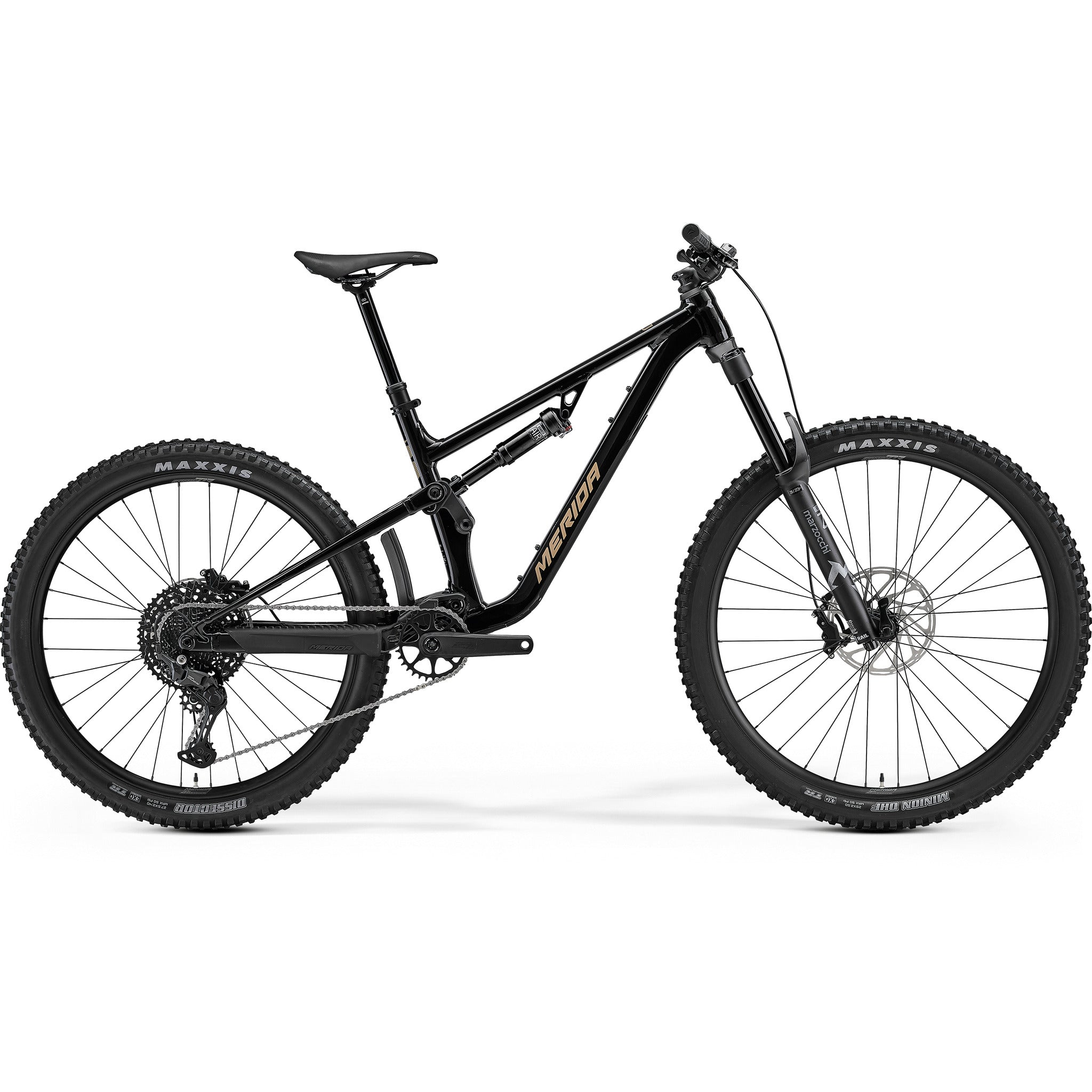

Enduro riding does not have to start with a five-figure bike. The One-Sixty 400 is the entry point to the range, and it keeps the parts that change how a bike rides while trimming the ones that only change the spec sheet. The Lite III aluminium frame uses Next Generation enduro geometry and the FAST kinematic suspension layout, with internal routing, Boost axles, a threaded bottom bracket and a flip chip for either full 29in or mixed wheels.
A Marzocchi Z1 air fork delivers 170mm of travel on a 44mm offset, backed by a Bomber inline shock with a lockout. Braking is SRAM DB4 four-piston front and rear, so there is no shortage of stopping power.
The drivetrain is an 11-speed Shimano CUES U6000 with a SunRace 10-50 Linkglide cassette, built for a long service life rather than a low weight. Tyres are a Maxxis Minion DHF 29x2.5 EXO up front with a Dissector at the rear, 27.5x2.4 on the smaller frames and 29x2.4 on the larger ones, so smaller riders get the shorter rear end that suits them. Dropper travel scales with the frame from 150mm up to 230mm.
Features
- Lite III aluminium frame with Next Generation enduro geometry and Agilometer sizing
- FAST kinematic rear suspension
- Flip chip for a full 29er or mullet wheel setup
- Marzocchi Z1 air fork, 170mm travel, 44mm offset
- Marzocchi Bomber inline rear shock with lockout
- 11-speed Shimano CUES U6000 drivetrain with SunRace 10-50 Linkglide cassette
- SRAM DB4 four-piston hydraulic disc brakes front and rear
- Maxxis Minion DHF 29x2.5 EXO front, Dissector rear in 27.5x2.4 or 29x2.4 by frame size
- Size-specific dropper post, 150mm to 230mm travel
Specifications
Discipline MTB
Material Alloy
Front Travel 170mm
Wheel Size 29in
Frame - Lite III Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5
Rear Shock - Marzocchi Bomber inline; lockout
Fork - Marzocchi Z1; Air; 170mm travel; Tapered; 44mm fork offset; 29x2.6 max. wheel size
Headset - Acros ICR Merida external neck; Upper and lower IPS sealing
Stem - Merida Comp TR; aluminium; 35mm diameter; 0 degree rise
Handlebar - Merida Comp TR II; aluminium; 780mm wide; 35mm rise
Grips - Merida Comp TR
Brake Type - Hydraulic Disc
Brakes - Front: Sram DB4; 4 piston Rear: Sram DB4; 4 piston
Wheels - Rims: Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); rear 27.5 up to Size M / L & XL rear 29 Spokes: Double Butted Black stainless w/black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 spoke; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock
Tyres - Front: Maxxis Minion DHF; 29x2.5; EXO wire; tubeless ready Rear: Maxxis Dissector; 27.5x2.4 XS/S/M 29x2.4 L/XL; EXO wired; tubeless ready
Wheel Size - 29
Speeds - 11
Shifters - Rear: Shimano CUES U6000
Rear Derailleur - Shimano CUES U6000; GS
Chainset - Merida Expert TR II; 32 teeth; Crank Length: 165mm for all sizes
Bottom Bracket - Samox BSA 24mm EB2401
Chain - KMC xGlide
Cassette - SunRace 10-50t ZX11; CS-UX700 EA5; 10-50 teeth; 11 speed; Linkglide
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seat Post - Merida Expert TR II; 34.9mm diameter; in-line; (XShort-Short) - 150mm seat post travel, Mid - 170mm seat post travel, Long - 200mm seat post travel, XLong - 230mm seat post travel
