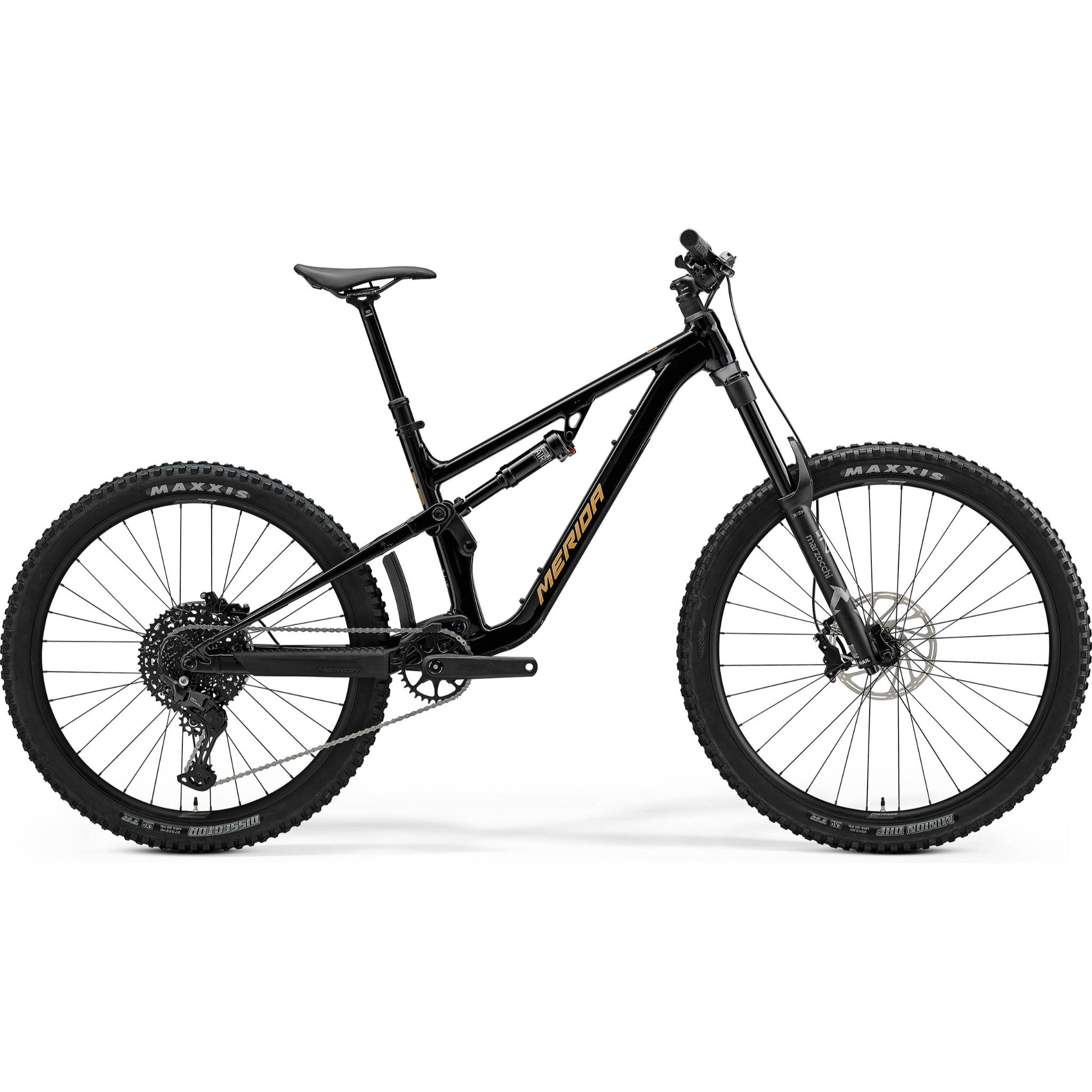

The One-Sixty 400 is Merida's entry-level enduro bike, keeping the price down but the performance high. It rolls on Marzocchi suspension, grippy Maxxis tyres and a durable Shimano Cues drivetrain, so it's ready to race, rip and rally any enduro trail you fancy.
Progressive geometry from Merida's modern aluminium frame is paired with award-winning FAST suspension kinematics, delivering 170mm of travel up front from a Marzocchi Z1 fork and 160mm at the rear from a Bomber Inline shock. Smaller sizes (XShort to Mid) run a mixed setup with a 29" front and 27.5" rear, while Long and XLong run full 29" wheels, and a flip chip lets you switch between the two.
Merida's Agilometer sizing lets you choose your reach by riding style rather than height alone, and every size gets a long-travel dropper, from 150mm up to 230mm. Powerful SRAM DB4 4-piston brakes with 200mm rotors, wide 28mm rims with tubeless tape already fitted and a threaded bottom bracket complete a tough, dependable build.
Features
- Full aluminium frame with FAST suspension kinematics and modern enduro geometry
- 170mm Marzocchi Z1 fork and Marzocchi Bomber Inline shock with 160mm travel
- Mixed wheels on XShort-Mid, full 29" on Long-XLong, with flip chip
- Shimano Cues 1x11 Linkglide drivetrain with 10-50T cassette
- Powerful SRAM DB4 4-piston brakes with 200mm rotors
- Maxxis Minion DHF and Dissector EXO tyres
- Size-specific dropper post from 150mm to 230mm
Sizing
- XShort: 145cm - 165cm
- Short: 155cm - 175cm
- Mid: 165cm - 185cm
- Long: 175cm - 195cm
- XLong: 185cm and over
Merida encourages riders to consider their riding style when choosing a frame size. For example, a 175cm rider could choose a Short frame for agility, Mid for a balanced ride or Long for stability.
Specifications
DisciplineEnduro
MaterialAluminium
Front Travel170mm
Rear Travel160mm
Wheel SizeMX (XS-M), 29" (L-XL)
WarrantyLifetime
Frame - Lite III aluminium; next generation enduro geometry; internal cable routing; long seatpost insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size 2.5"
Rear shock - Marzocchi Bomber Inline; lockout
Fork - Marzocchi Z1; Air; 170mm travel; tapered; 44mm fork offset; 29x2.6" max tyre size
Headset - Acros ICR Merida external neck; upper and lower IPS sealing
Stem - Merida Comp TR; material: aluminium; 35mm diameter; 0 degree rise; length: 40mm
Handlebar - Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
Grips - Merida Comp TR
Brake type - Hydraulic disc
Front brake - SRAM DB4; 4 piston with SRAM CenterLine; 200mm
Rear brake - SRAM DB4; 4 piston with SRAM CenterLine; 200mm
Front tyre - Maxxis Minion DHF; 29x2.5"; EXO; wired; tubeless ready
Rear tyre - Maxxis Dissector; XShort-Mid 27.5x2.4", Long-XLong 29x2.4"; EXO; wired; tubeless ready
Wheel size - 29" front; 27.5" rear (XShort-Mid), 29" rear (Long-XLong)
Rims - Merida Comp TR II; 28mm inner rim width; material: aluminium; tubeless ready (Stans 30mm tubeless tape installed, valves not included); rear 27.5" up to size M, L and XL rear 29"
Spokes - Double butted black stainless with black nipples
Front hub - Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear hub - Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock
Speeds - 11
Rear derailleur - Shimano Cues U6000; GS
Shift levers - Rear: Shimano Cues U6000
Chain - KMC xGlide
Cassette - SunRace ZX11 CS-UX700 EA5; 10-50 teeth; 11 speed; Linkglide
Chainset - Merida Expert TR II; 32 tooth; crank length: 165mm
Bottom bracket - Samox BSA 24mm EB2401
Pedals - Not included
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seatpost - Merida Expert TR II; 34.9mm diameter; in-line; XShort-Short 150mm, Mid 170mm, Long 200mm, XLong 230mm seatpost travel
One-Sixty 400 2026
- Enduro
- 170 / 160mm travel
- Alloy frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
