Description
Everything a young rider needs to become a Champion of tomorrow - and nothing they don’t. The Matts J Champion has a lightweight aluminium frame with 26” wheels, married to the same quality of components offered by Merida adult bikes, but with finishing kit suited to their needs.
A proper suspension fork, dropper seat post and hydraulic disc brakes guarantee control on real mountain bike terrain, while a wide-range Shimano drivetrain make hills easy.
Suits heights from approx. 137-150 cm tall.
Specifications
-
Discipline Aluminium
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel N/A
-
Wheel Size 26"
-
Warranty Lifetime
Frame - TFS - 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing, BSA BB standard. Max tyre size 27" x 2.25"
Fork - X-Fusion RC32 120mm; 120 mm travel; Lockout; 46mm fork offset; 27.5x2.4" max. tyre size
Headset - FSA NO.55R/57SC/57B
Stem - Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Handlebar - Merida CC; material: aluminium; 640mm wide; 15mm rise
Grip - Merida Expert JR
Brake Type - Hydraulic Disc
Front Brake - Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-35; 160mm
Rear Brake - Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-35; 160mm
Front Tyre - Kenda Booster K1227; 26x2.2"; foldable
Rear Tyre - Kenda Booster K1227; 26x2.2"; foldable
Wheel Size - 26"
Rim - Merida CC; 17mm inner rim width; material: aluminium
Spokes - Stainless Black
Front Hub - Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub - Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Speeds - 9
Rear Derailleur - Shimano Cues U4000; GS
Shift Levers - Front: Limotec RM06, Rear: Shimano Cues U4050; short reach
Chain - KMC xGlide
Cassette - SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
Chainset - Prowheel A10B; 30 tooth chainset; material: aluminium; Crank length: 140mm
Bottom Bracket - Squared LL123
Pedals - VP VPE-229
Saddle - Merida Expert JR
Seat Post - Merida Comp JR; 30.9mm diameter; 100mm diameter; in-line; material: aluminium

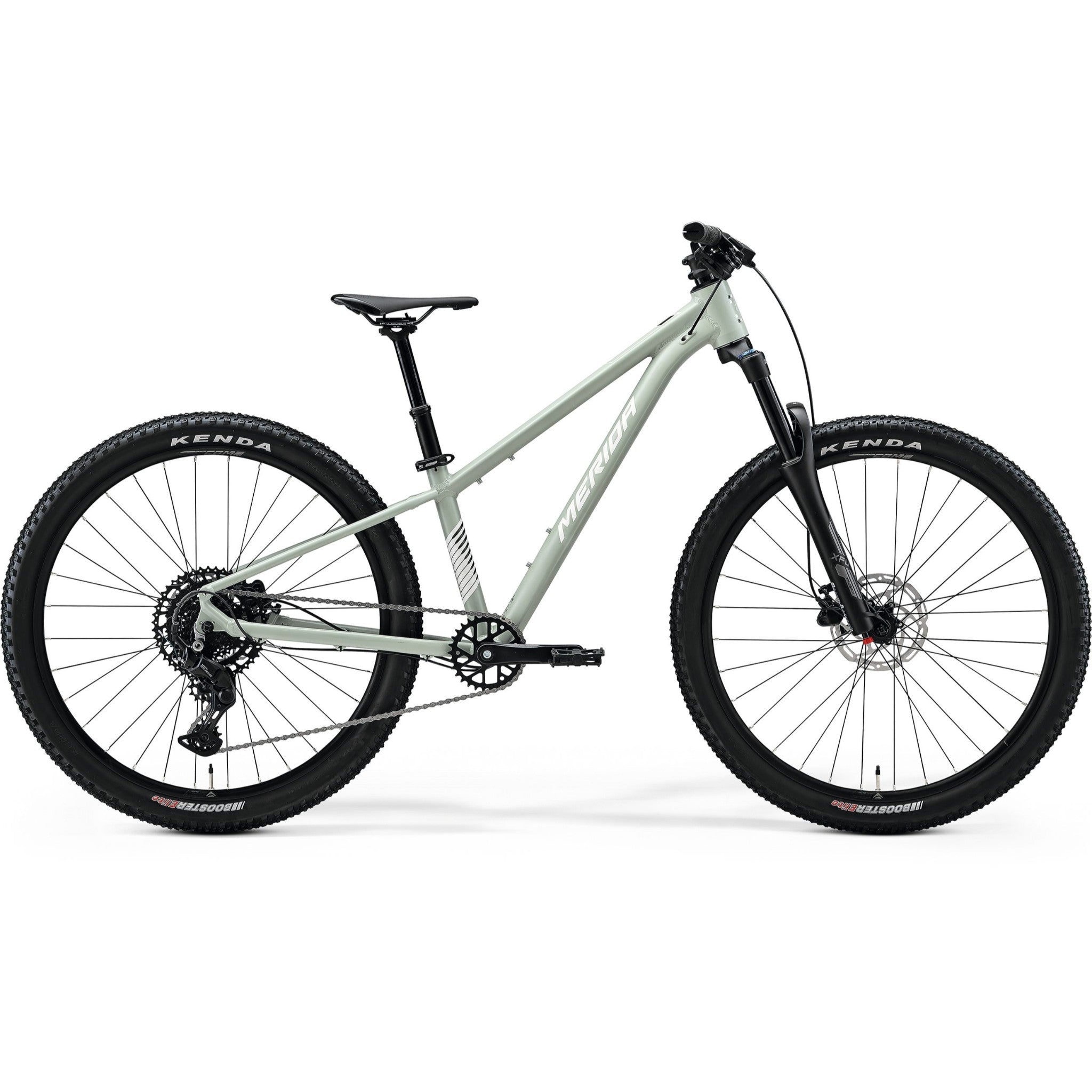

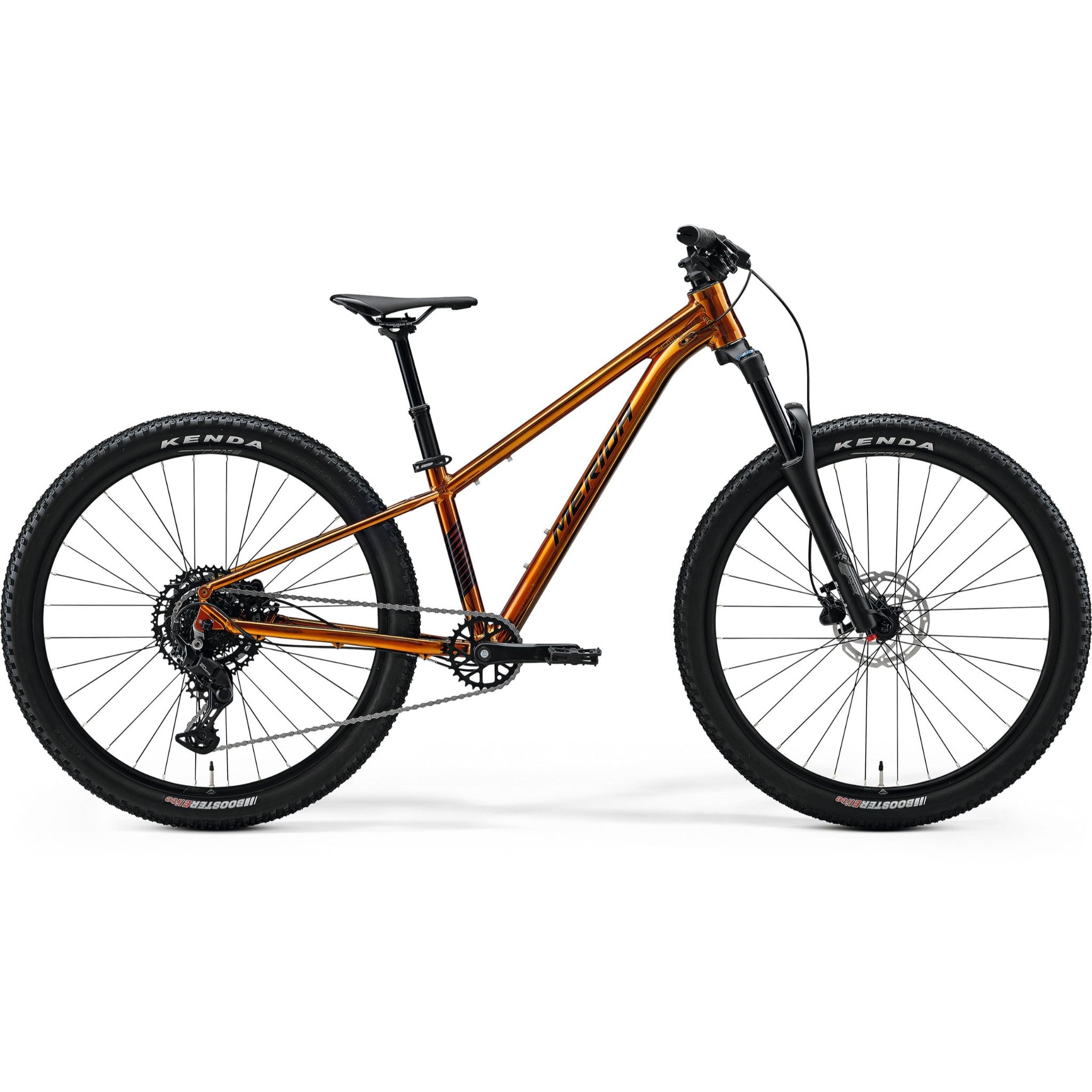

Merida Matts Junior Champion 2026
Everything a young rider needs to become a Champion of tomorrow - and nothing they don’t. The Matts J Champion has a lightweight aluminium frame with 26” wheels, married to...
Order within [time] for delivery by [date]
90 Day Returns
Description
Everything a young rider needs to become a Champion of tomorrow - and nothing they don’t. The Matts J Champion has a lightweight aluminium frame with 26” wheels, married to the same quality of components offered by Merida adult bikes, but with finishing kit suited to their needs.
A proper suspension fork, dropper seat post and hydraulic disc brakes guarantee control on real mountain bike terrain, while a wide-range Shimano drivetrain make hills easy.
Suits heights from approx. 137-150 cm tall.
Specifications
-
Discipline Aluminium
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel N/A
-
Wheel Size 26"
-
Warranty Lifetime
Frame - TFS - 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing, BSA BB standard. Max tyre size 27" x 2.25"
Fork - X-Fusion RC32 120mm; 120 mm travel; Lockout; 46mm fork offset; 27.5x2.4" max. tyre size
Headset - FSA NO.55R/57SC/57B
Stem - Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Handlebar - Merida CC; material: aluminium; 640mm wide; 15mm rise
Grip - Merida Expert JR
Brake Type - Hydraulic Disc
Front Brake - Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-35; 160mm
Rear Brake - Tektro HD-J2820; hydraulic Disc brake; short reach with Tektro TR160-35; 160mm
Front Tyre - Kenda Booster K1227; 26x2.2"; foldable
Rear Tyre - Kenda Booster K1227; 26x2.2"; foldable
Wheel Size - 26"
Rim - Merida CC; 17mm inner rim width; material: aluminium
Spokes - Stainless Black
Front Hub - Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub - Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Speeds - 9
Rear Derailleur - Shimano Cues U4000; GS
Shift Levers - Front: Limotec RM06, Rear: Shimano Cues U4050; short reach
Chain - KMC xGlide
Cassette - SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
Chainset - Prowheel A10B; 30 tooth chainset; material: aluminium; Crank length: 140mm
Bottom Bracket - Squared LL123
Pedals - VP VPE-229
Saddle - Merida Expert JR
Seat Post - Merida Comp JR; 30.9mm diameter; 100mm diameter; in-line; material: aluminium
