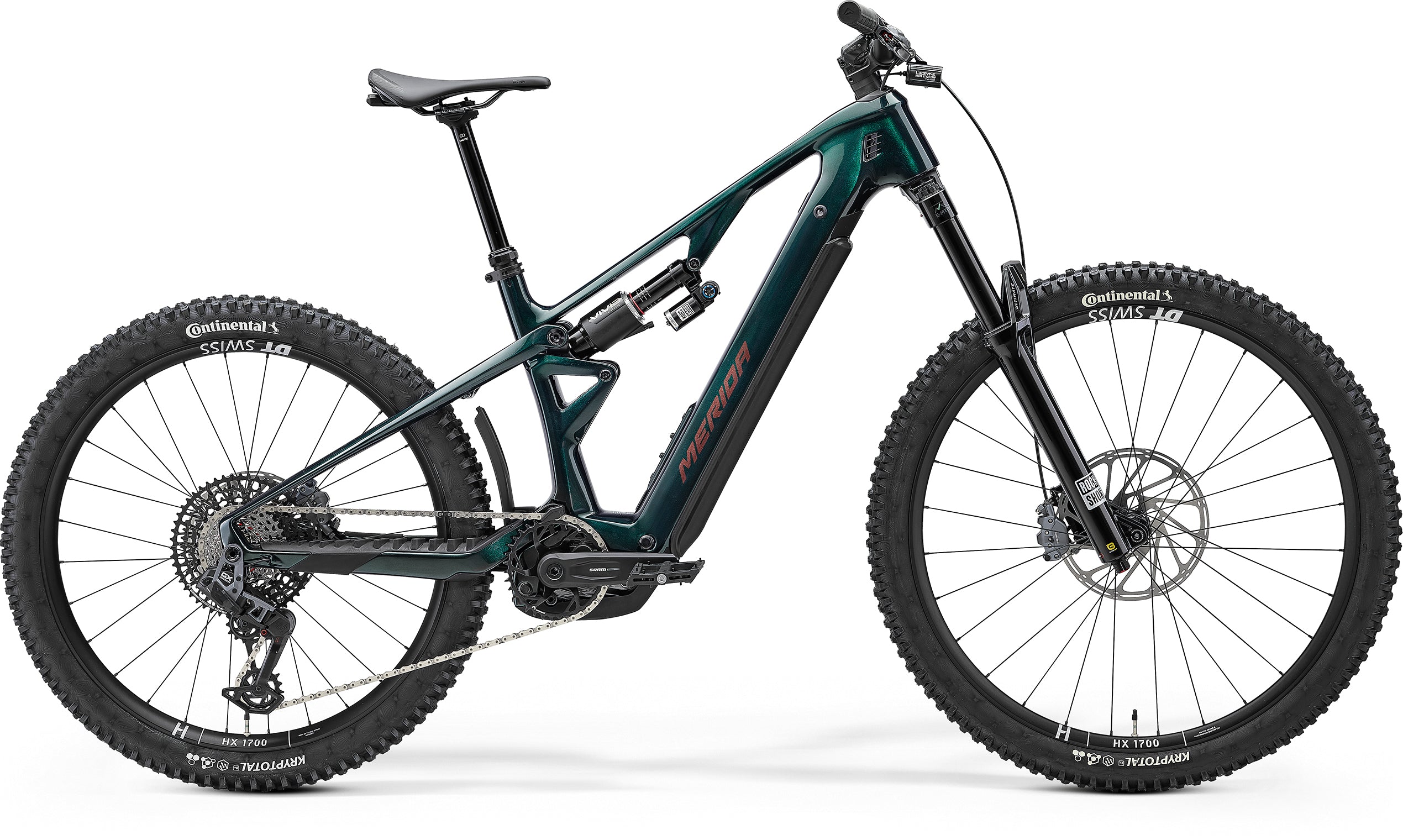

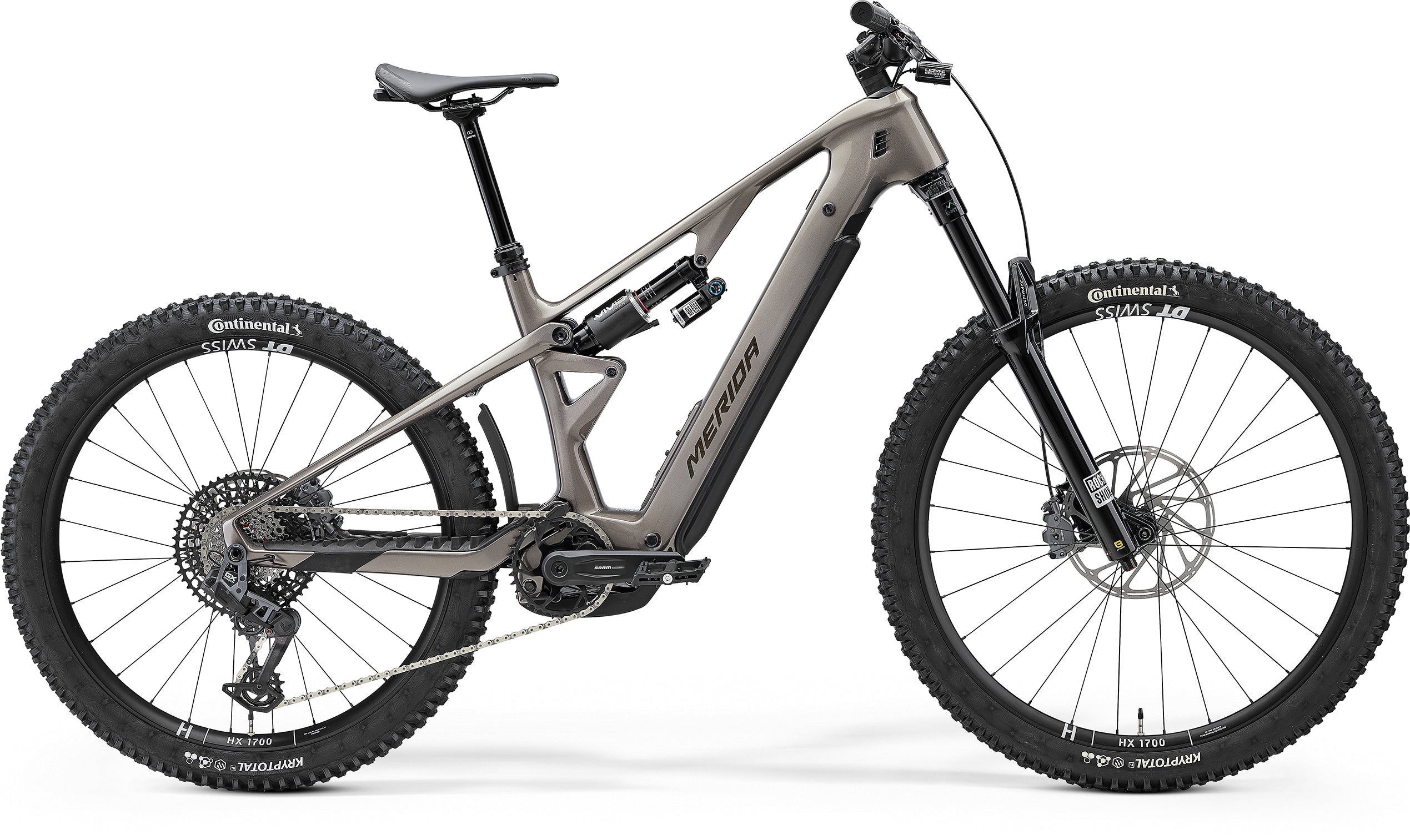

The Merida Lithos 8000 is built to deliver on technical trails and rough race tracks, with the same lightweight carbon Lithos CF frame and race-derived geometry as the rest of the range. With 170mm of fork travel and 160mm at the rear, it is designed to maximise grip and control on any terrain, and it makes a strong case as the competitive privateer's choice.
The Bosch Performance Line CX-R drive unit and 800Wh PowerTube battery provide the power and range for long days and big climbs, with a Bosch Kiox 400C display keeping you informed. Suspension comes from a RockShox Vivid Ultimate shock and a RockShox Zeb Ultimate eMTB fork – both top-tier units that give you the support and sensitivity to ride hard with confidence.
SRAM's wireless GX Eagle Transmission takes care of shifting, SRAM Maven Bronze four-piston brakes on 220/203mm rotors handle the stopping, and a DT Swiss HX 1700 alloy wheelset shod with Continental Kryptotal Enduro tyres rounds out a genuinely capable, race-ready build.
Features
- Bosch Performance Line CX-R drive unit – lightweight, high-output
- RockShox Vivid Ultimate rear shock
- RockShox Zeb Ultimate eMTB fork, 170mm travel
- SRAM GX Eagle Transmission wireless 12-speed drivetrain
- SRAM Maven Bronze four-piston brakes, 220/203mm rotors
- DT Swiss HX 1700 alloy wheelset
- Carbon Lithos CF frame with internal battery and 160mm of rear travel
- Bosch 800Wh PowerTube battery, removable for charging off the bike
- Bosch Kiox 400C display
- Mixed 29in front / 27.5in rear wheel setup – with the option to run full 29in for outright speed
- Continental Kryptotal Enduro-casing tyres, tubeless ready
- Merida AGILOMETER sizing and travel-adjustable dropper post to fine-tune fit and handling
- Compatible with a lighter 600Wh battery (available separately) for more agile handling
- Clean internal cable routing via the WIRE PORT, with semi-external headtube ports for quick access
Specifications
Frame - Lithos CF I ; carbon; 160mm travel; 29 x 2,4 max. tyre size; 148x12mm axle standard, intube
Rear Shock - Rock Shox Vivid Ultimate
Fork - Rockshox Zeb Ultimate eMTB; Air; 170mm travel; Tapered; 44mm fork offset; 29x2.6 max tyre size
Headset - Acros ICR Merida Integrated neck w/ Blocklock
Stem - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount - 40 mm all sizes
Handlebar - Merida Expert eTR; 780mm wide
Grip - Merida Expert TR
Brake Type - Hydraulic disc
Brake Lever - SRAM Maven Bronze
Brake Calipers - Front: SRAM Maven Bronze; 4 piston caliper with Shimano RT64, 220mm rotor Rear: SRAM Maven Bronze; 4 piston caliper with Shimano RT64, 203mm rotor
Tyres - Front: Continental Kryptotal-F; 29x2.4; folding; TR; Enduro casing; Super soft Compound Rear: Continental Kryptotal-R; 27.5x2.4 ; folding; Enduro casing, soft Compound
Wheel Size - 29 / 27.5
Wheels - Rims: Part of Wheelset - DT Swiss HX 1700; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves included) Front Hub: Part of Wheelset - DT Swiss HX 1700; 110x15mm; 6-Bolt Rear Hub: Part of Wheelset - DT Swiss HX 1700; 148x12mm; 6-Bolt; SRAM XD
Speeds - 12
Rear Derailleur - SRAM GX Eagle Transmission AXS
Shift Levers - SRAM dropper lever MMX and SRAM AXS Pod Controller
Chain - SRAM GX Eagle Transmission; Flattop
Cassette - SRAM CS XS 1275 T-TYPE 10-52; 12 speed
Chainset - SRAM Eagle Transmission E-MTB for Bosch; 36 teeth; SRAM S1000 Eagle E-MTB Crank, 160mm all sizes
Pedals - VP Components VP-532
Saddle - Proxim Altius Steel; V-mount adapter; incl. Merida minitool
Seat Post - Merida Team TR II; 34.9mm diameter; 0mm layback; all sizes 30-230mm travel
Motor - Bosch PowerTube 800; 800Wh, Bosch Performance Line CX-R
Battery Capacity - 800Wh
eBike Display - Bosch Kiox 400C
Lithos 8000 2027
