The Merida Lithos 6000 brings a big dose of e-enduro performance and value to any rider or racer. It uses the same lightweight carbon Lithos CF frame as the bikes above it, with 170mm of fork travel and 160mm at the rear, plus the race-derived geometry and kinematics that give the Lithos its planted handling and strong traction – paired here with sensibly chosen, high-value components.
The Bosch Performance Line CX drive unit is a strong, dependable motor, and with a removable 800Wh PowerTube battery and Bosch Kiox 400C display, the 6000 is ready to ride and rip whatever turn the trail takes. Suspension is handled by a RockShox Vivid Base shock and a RockShox Zeb Select eMTB fork, a proven pairing that delivers control where it counts.
Shifting is via SRAM's Eagle 70 Transmission, with SRAM DB6 Stealth four-piston brakes on 220/200mm rotors and a Reynolds 309 Enduro alloy wheelset on Continental Kryptotal Enduro tyres – a tough, reliable spec that keeps the focus on getting out and enjoying the trail.
Features
- Bosch Performance Line CX drive unit
- RockShox Vivid Base rear shock
- RockShox Zeb Select eMTB fork, 170mm travel
- SRAM Eagle 70 Transmission 12-speed drivetrain
- SRAM DB6 Stealth four-piston brakes, 220/200mm rotors
- Reynolds 309 Enduro alloy wheelset
- Carbon Lithos CF frame with internal battery and 160mm of rear travel
- Bosch 800Wh PowerTube battery, removable for charging off the bike
- Bosch Kiox 400C display
- Mixed 29in front / 27.5in rear wheel setup – with the option to run full 29in for outright speed
- Continental Kryptotal Enduro-casing tyres, tubeless ready
- Merida AGILOMETER sizing and travel-adjustable dropper post to fine-tune fit and handling
- Compatible with a lighter 600Wh battery (available separately) for more agile handling
- Clean internal cable routing via the WIRE PORT, with semi-external headtube ports for quick access
Specifications
Frame - Lithos CF I ; carbon; 160mm travel; 29 x 2,4 max. tyre size; 148x12mm axle standard, intube
Rear Shock - Rock Shox Vivid Base
Fork - Rockshox Zeb Select eMTB; Air; 170mm travel; Tapered; 44mm fork offset; 29x2.6 max tyre size
Headset - Acros ICR Merida Integrated neck w/ Blocklock
Stem - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount - 40 mm all sizes
Handlebar - Merida Expert eTR; 780mm wide
Grip - Merida Comp TR
Brake Type - Hydraulic disc
Brake Lever - SRAM DB6 stealth
Brake Calipers - Front: SRAM DB6 stealth; 4 piston caliper with SRAM CenterLine; 220mm rotor Rear: SRAM DB6 stealth; 4 piston caliper with SRAM CenterLine; 200mm rotor
Tyres - Front: Continental Kryptotal-F; 29x2.4; folding; TR; Enduro casing; Soft Compound Rear: Continental Kryptotal-R; 27.5x2.4 ; folding; Enduro casing, soft Compound
Wheel Size - 29 / 27.5
Wheels - Rims: Reynolds 309 Enduro Comp; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape installed); front 29; rear 27.5 Front Hub: Shimano TC500-B; 15x100mm; 32 spokes; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 spokes; Centerlock
Speeds - 12
Rear Derailleur - SRAM Eagle 70 Transmission
Shift Levers - SRAM dropper lever MMX and SRAM Eagle 70 Transmission Shifter
Chain - SRAM Eagle 70 Flattop Chain
Cassette - SRAM CS XS 1270 T-TYPE 10-52 ; 12 speed
Chainset - SRAM Eagle Transmission E-MTB for Bosch; 36 teeth; SRAM S1000 Eagle E-MTB Crank, 160mm all sizes
Pedals - VP Components VPE-533
Saddle - Merida Comp SL; V-mount; incl. Merida minitool
Seat Post - Merida Expert TR II; 34.9mm diameter; 0mm layback; Travel: XS: 125mm - S: 150mm - M: 170mm - L: 200mm - XL: 230mm
Motor - Bosch PowerTube 800; 800Wh, Bosch Performance Line CX
Battery Capacity - 800Wh
eBike Display - Bosch Kiox 400C

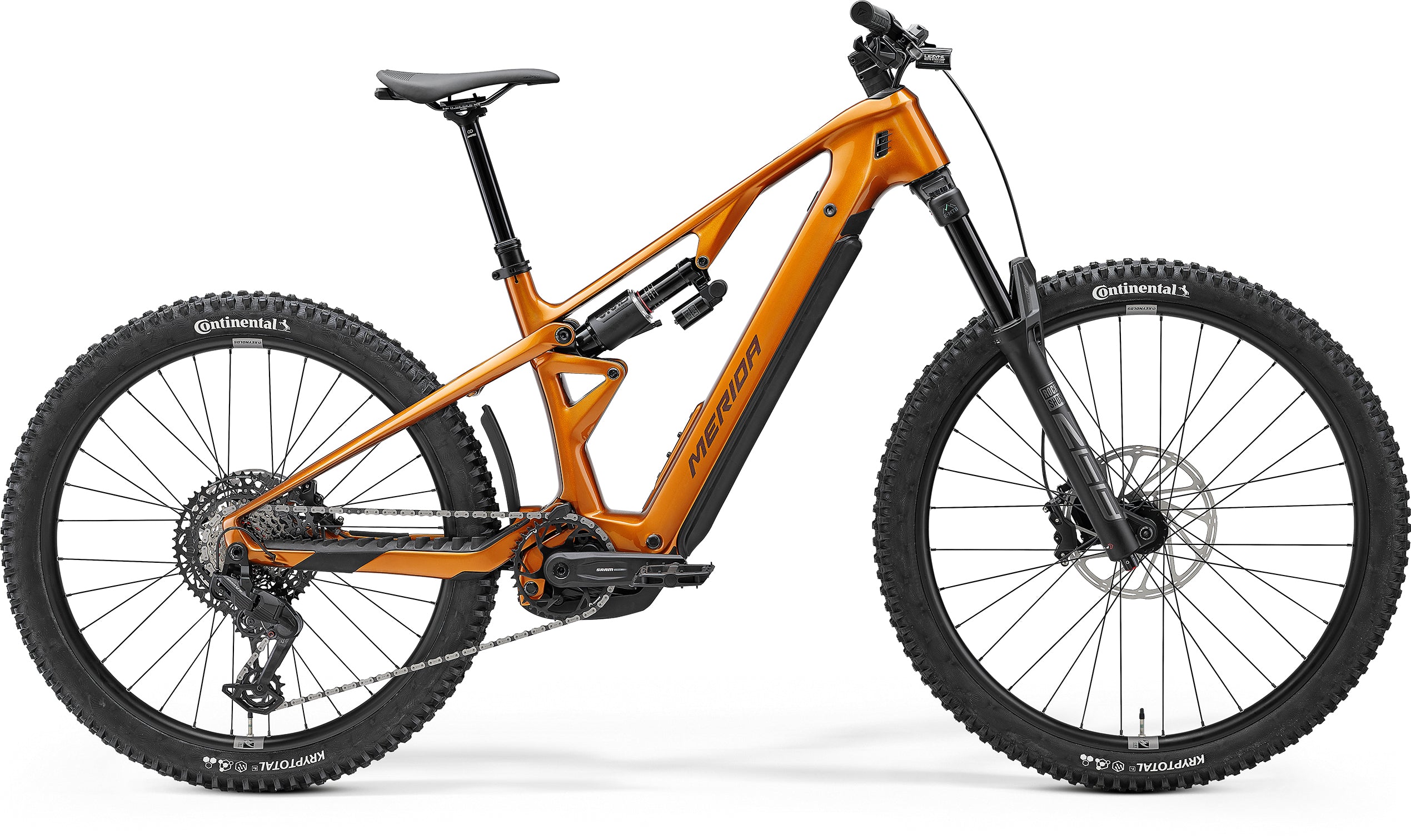

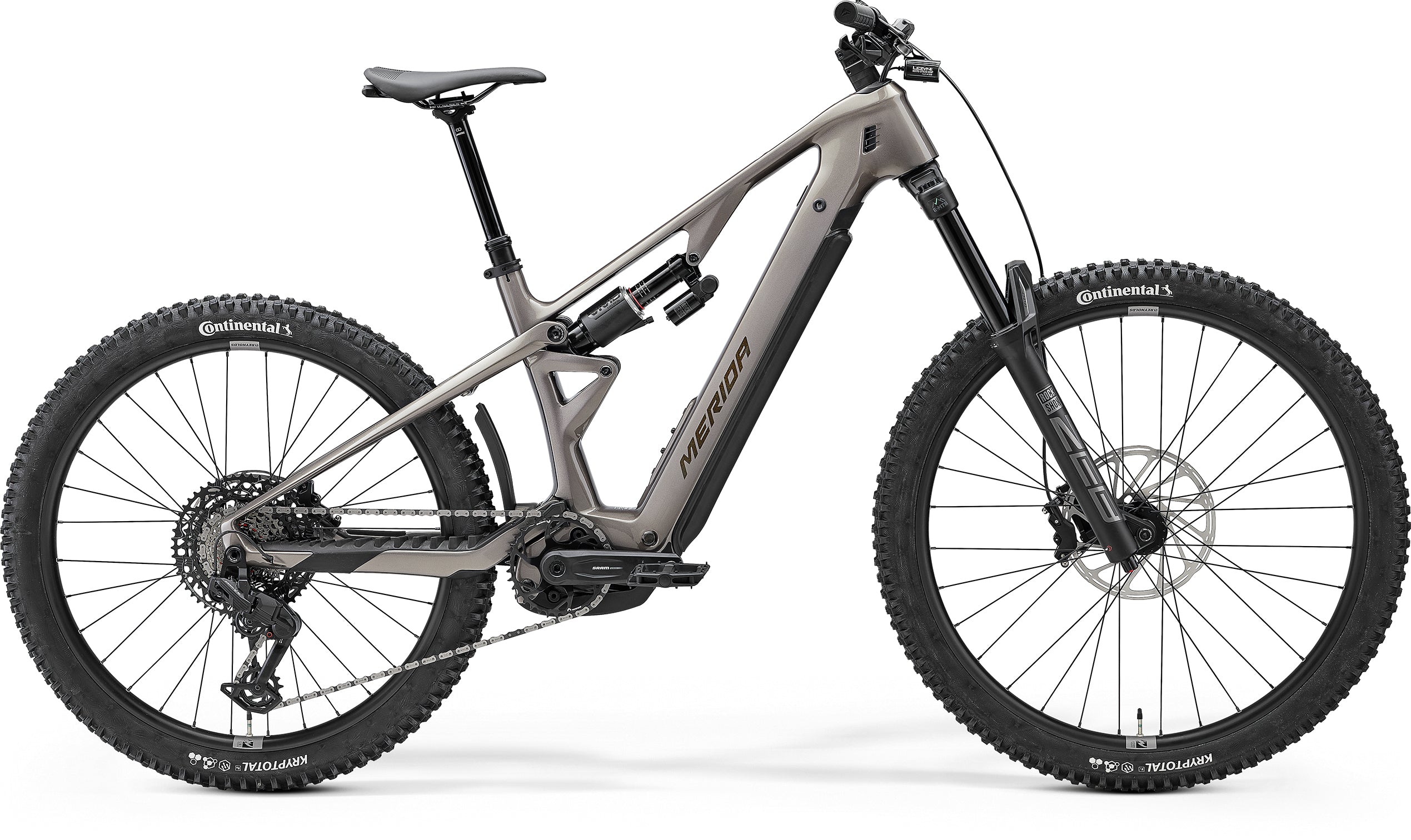

Lithos 6000 2027
