The Merida Lithos 10K sits at the top of Merida's enduro e-MTB range, built for riders who want serious capability when the trails get rough, steep and relentless. The full carbon Lithos CF frame keeps weight down for sharper, more composed handling, and with 170mm of fork travel matched to 160mm at the rear, it has the composure to be pushed hard on demanding descents and across back-to-back race stages.
Power comes from Bosch's Performance Line CX-R drive unit – the lighter, higher-output version of Bosch's proven motor – paired with an 800Wh PowerTube battery for genuine all-day range, and managed through a Bosch Kiox 400C display. Suspension is led by a Fox Float X Factory shock with Live Valve Neo, which adjusts its damping automatically to suit the terrain and your speed, matched to an inverted Fox Podium Factory fork for a planted, controlled front end.
The rest of the build is finished to match. SRAM's wireless X0/XX Eagle Transmission handles shifting, SRAM Maven Ultimate four-piston brakes on 220/200mm rotors deliver the stopping power a fast e-enduro bike needs, and a DT Swiss HXC 1500 carbon wheelset keeps things stiff and responsive on Continental Kryptotal Enduro tyres.
Features
- Bosch Performance Line CX-R drive unit – lightweight, high-output
- Fox Float X Factory rear shock with Live Valve Neo automatic damping
- Inverted Fox Podium Factory fork, 170mm travel
- SRAM X0/XX Eagle Transmission wireless 12-speed drivetrain
- SRAM Maven Ultimate four-piston brakes, 220/200mm rotors
- DT Swiss HXC 1500 carbon wheelset
- Carbon Lithos CF frame with internal battery and 160mm of rear travel
- Bosch 800Wh PowerTube battery, removable for charging off the bike
- Bosch Kiox 400C display
- Mixed 29in front / 27.5in rear wheel setup – with the option to run full 29in for outright speed
- Continental Kryptotal Enduro-casing tyres, tubeless ready
- Merida AGILOMETER sizing and travel-adjustable dropper post to fine-tune fit and handling
- Compatible with a lighter 600Wh battery (available separately) for more agile handling
- Clean internal cable routing via the WIRE PORT, with semi-external headtube ports for quick access
Specifications
Frame - Lithos CF I ; carbon; 160mm travel; 29 x 2,4 max. tyre size; 148x12mm axle standard, intube
Rear Shock - Fox Float X Factory Live Valve Neo
Fork - Fox Podium Factory; 170mm travel; tapered; 44mm fork offset; 29x2.6 max tyre size
Headset - Acros ICR Merida Integrated neck w/ Blocklock
Stem - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount - 40 mm all sizes
Handlebar - Race Face Era; 780mm wide
Grip - Merida Expert TR
Brake Type - Hydraulic disc
Brake Lever - SRAM Maven Ultimate
Brake Calipers - Front: SRAM Maven Ultimate; 4 piston caliper with SRAM HS2; 220mm rotor Rear: SRAM Maven Ultimate; 4 piston caliper with SRAM HS2; 200mm rotor
Tyres - Front: Continental Kryptotal-F; 29x2.4; folding; TR; Enduro casing; Super soft Compound Rear: Continental Kryptotal-R; 27.5x2.4 ; folding; Enduro casing, soft Compound
Wheel Size - 29 / 27.5
Wheels - Rims: Part of Wheelset - DT Swiss HXC 1500; 30mm inner rim width; carbon; Tubeless ready (tubeless tape and valves included) Front Hub: Part of Wheelset - DT Swiss HXC 1500; 110x20mm; 6-Bolt Rear Hub: Part of Wheelset - DT Swiss HXC 1500; 148x12mm; 6-Bolt; SRAM XD
Speeds - 12
Rear Derailleur - SRAM X0 Eagle Transmission AXS
Shift Levers - SRAM dropper lever MMX and SRAM AXS Pod Ultimate Controller
Chain - SRAM X0 Eagle Transmission; Flattop
Cassette - SRAM CS XS 1295 T-TYPE 10-51; 12 speed
Chainset - SRAM XX Eagle Transmission E-MTB for Bosch; 36 teeth with SRAM XO Eagle E-MTB Crank, 160mm all sizes
Pedals - VP Components VP-532
Saddle - Proxim Altius Triox; V-mount adapter; incl. Merida minitool
Seat Post - Merida Team TR II; 34.9mm diameter; 0mm layback; all sizes 30-230mm travel
Motor - Bosch PowerTube 800; 800Wh, Bosch Performance Line CX-R
Battery Capacity - 800Wh
eBike Display - Bosch Kiox 400C

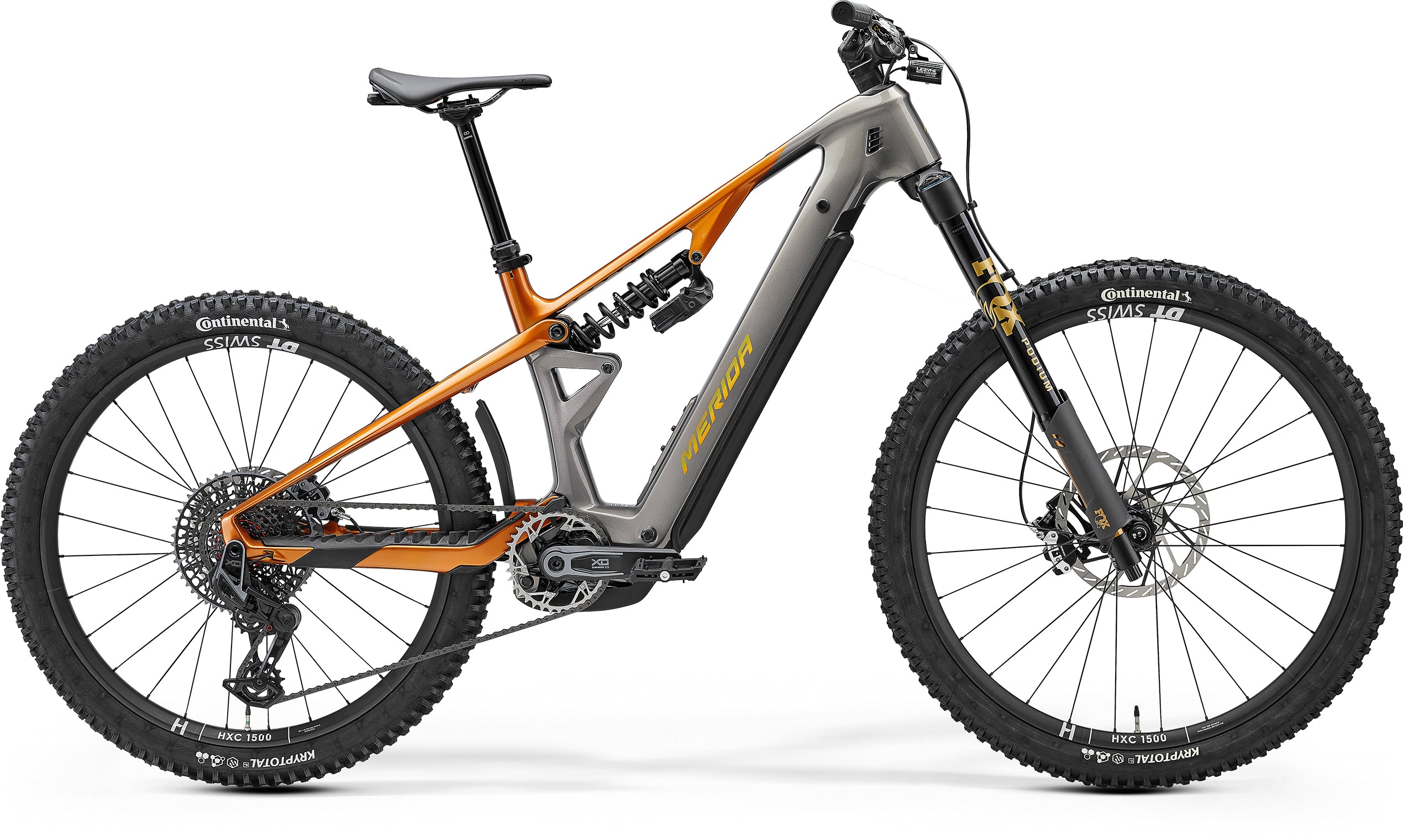

Lithos 10K 2027
