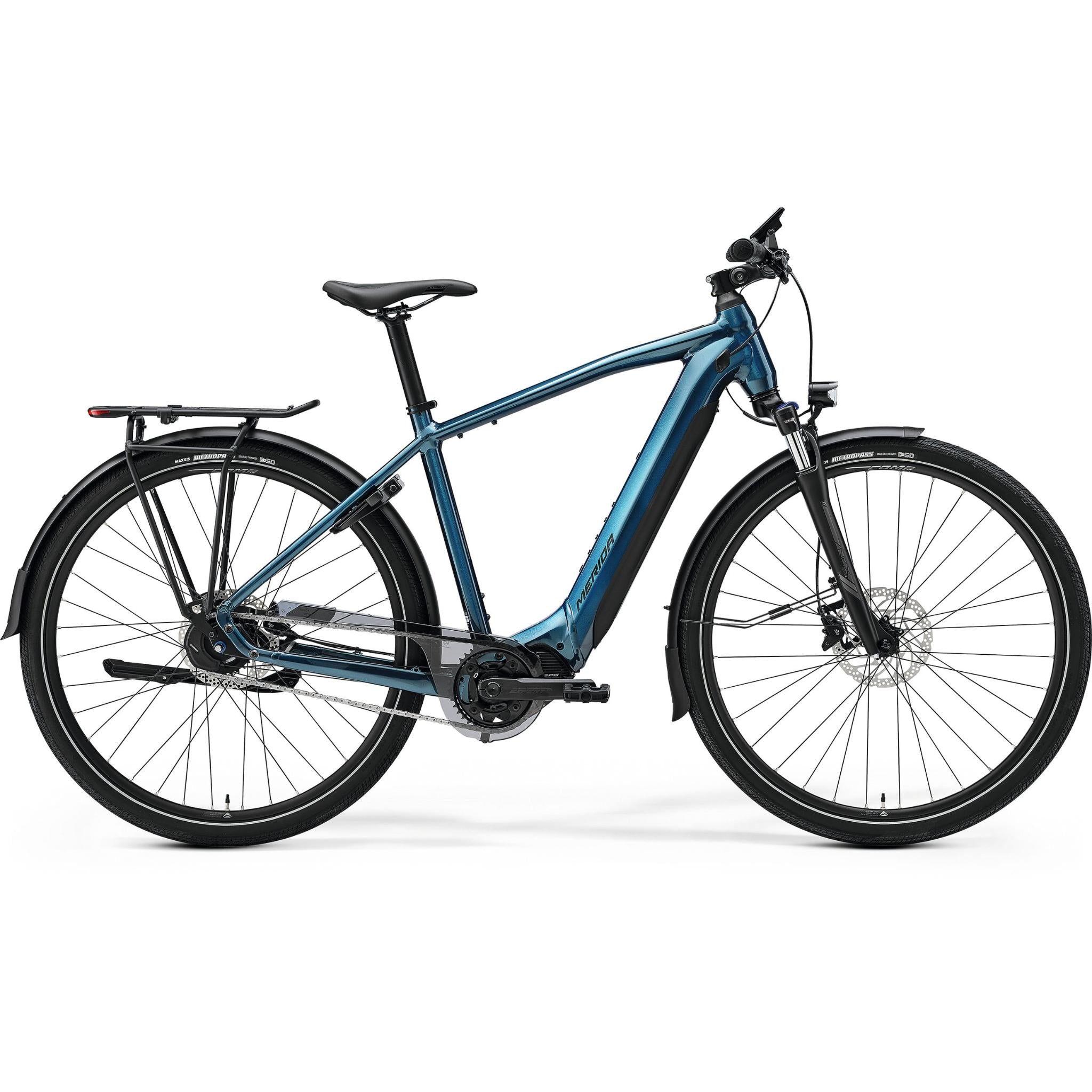

The eSpresso 775 EQ is a comfortable, practical electric hybrid built for urban riding with minimal maintenance. Standard-fit mudguards, lights, frame lock, rack and kickstand mean you're ready to ride from the moment you leave the shop.
A powerful Shimano EP6 motor delivers 85Nm of torque from a 750Wh battery mounted low in the frame for good balance and a natural ride feel. Low-maintenance Shimano Nexus 5-speed hub gearing keeps the drivetrain clean and reliable, and Shimano hydraulic disc brakes with 180mm rotors give confident stopping. Fast-rolling 700c wheels with wide 50mm reflective tyres suit town, gravel tracks and cycle paths alike.
Features
- Shimano EP6 drive unit with 85Nm torque
- Lightweight frame with internal 750Wh battery
- Low-maintenance Shimano Nexus Inter-5E hub gearing
- Suntour NEX E25 coil fork, 63mm travel
- Shimano MT402 hydraulic disc brakes, 180mm rotors
- 700c wheels with 50mm Continental reflective tyres
- Mudguards, lights, Abus frame lock, rack and kickstand included
Specifications
DisciplineHybrid /
Commute Material6066 Aluminium
Front Travel63mm
Wheel Size700c
Frame - Lite IV hydroformed 6066 triple-butted aluminium, internal battery, 142x12mm axle, internal cable routing, max tyre 700x50c with mudguards
Fork - Suntour NEX E25 coil, 63mm travel, max tyre 700x52c
Motor - Shimano STEPS EP6, 85Nm
Battery - Simplo Trend Power internal Gen 2, 750Wh
Display - Shimano SC-EN610
Mode Switch - Shimano SW-EN600-L
Charger - Trend Power Simplo EU, 4A
Gears - 5-speed internal hub
Shifter - Shimano SW-EN600-R
Chain - KMC Z1eHX EPT
Chainset - Samox P2 03, 38t, 165mm, with Sunnywheel chainguard
Rear Cog - Shimano CS-C7000, 27t
Brake Levers - Shimano MT402
Brakes - Shimano MT402-3A 2-piston hydraulic, RT30 180mm front / RT-EM300 180mm rear
Grips - Merida Expert TK
Handlebar - Merida Expert aluminium, 660mm, 15mm rise
Stem - Merida Expert CT adjustable, 31.8mm, XS-M 90mm / L-XL 110mm
Headset - Merida 8156
Pedals - VP VPE-891
Saddle - Merida Expert TK II, V-mount
Seatpost - Merida Expert CC aluminium, 34.9mm, in-line
Rims - Merida Comp TK aluminium, 20mm inner
Spokes - Black stainless
Front Hub - Shimano QC400, 100x9mm, 32h, Centerlock
Rear Hub - Shimano Nexus Inter-5E, 135x9mm, 36h, Centerlock
Tyres - Continental Contact Cruiser 700x50c, reflective strip
Lights - Herrmans H-Black MR4 E 120 lumen front / Spanninga Commuter Glow XE rear
Extras - Mudguards, kickstand, Abus frame lock, Merida MIK HD rack with spring clip and strap
eSpresso 775 EQ 2024
- Electric · Hybrid/Commute
- Hardtail · 63mm fork
- 700c wheels
- Alloy frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
