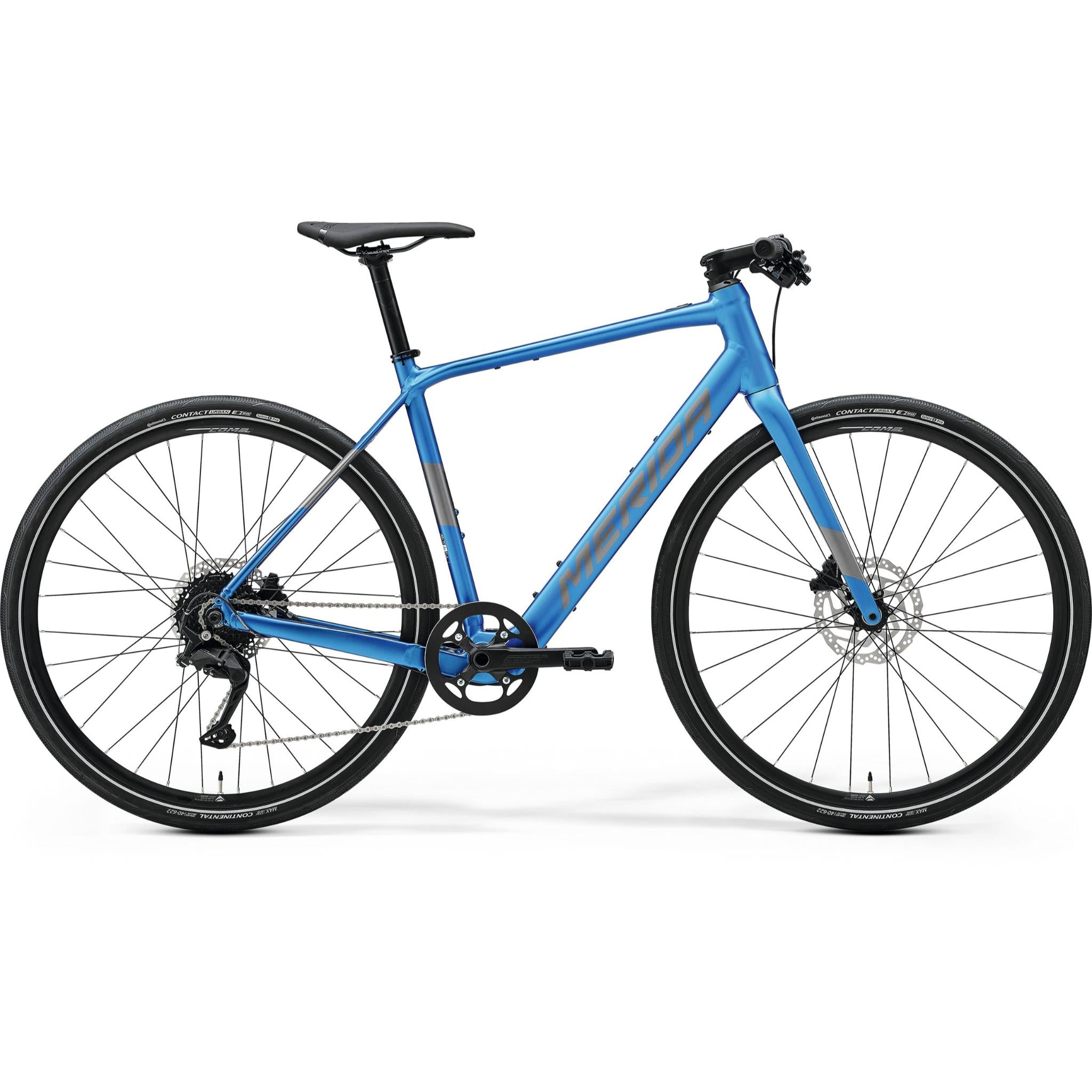

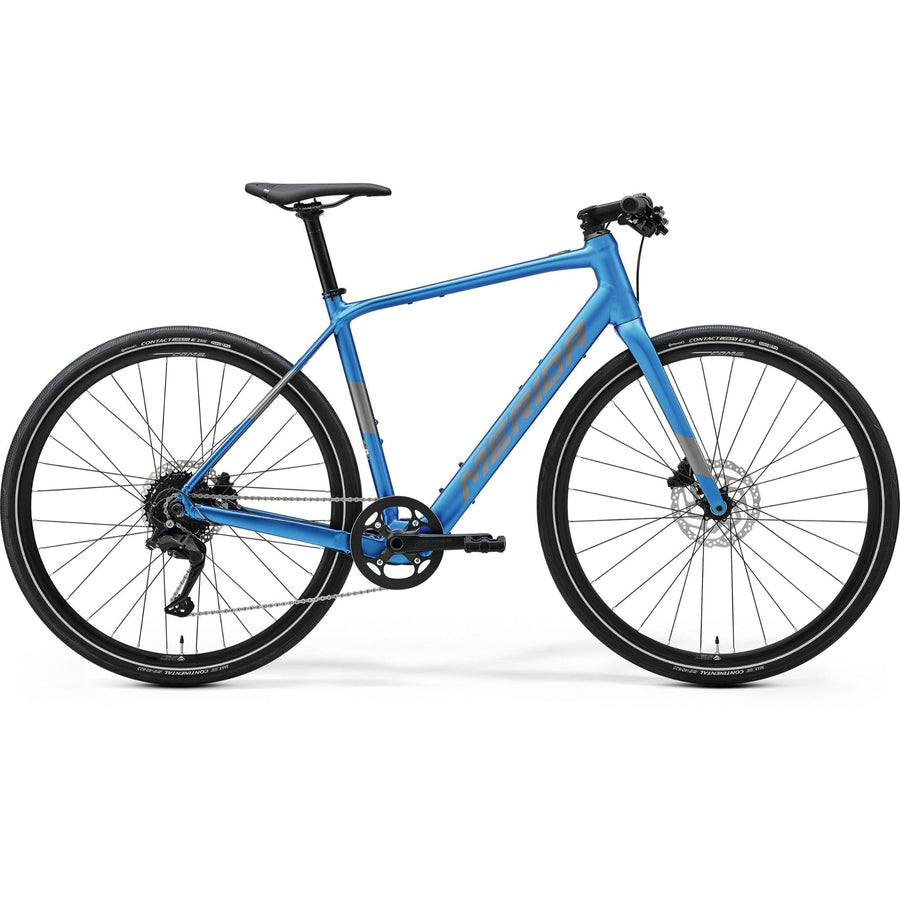

The regular Merida Speeder is a fast efficient electric commuting or leisure bike.

The addition of a power unit is almost unnoticeable when the bike's seen in profile. The smooth power delivery and drag free motor help preserve your energy, making commuting far more appealing.

MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube.

The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it's not engaged.

The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features.

The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat.

• MAHLE ebikemotion X35+ hub motor gives natural feeling assistance
• Triple butted aluminium frame with built-in 250 Wh battery
• Sleek 'normal bike' silhouette and low weight
• Flat handlebars for a sporty but upright riding position
• Fast-rolling 700c wheels with comfortable 40 mm tyres
• Smooth Shimano 9-speed drivetrain and powerful Shimano hydraulic disc brakes

SPECIFICATION -

FRAME - Lite II - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards
MOTOR - Mahle X35+ Hub motor; 40Nm
BATTERY - Mahle B1-D; 250Wh
BATTERY CAPACITY - 250Wh
EBIKE DISPLAY - Colour coded iWoc power button
CHARGER - Mahle charger-C; 2A
POWER BUTTON - Mahle One Remote
MODE SWITCH - Mahle One Remote
FORK - Mission CX CF3; carbon. Max. tyre size: 700 x 42c
GEARS - 9
SHIFTERS - Shimano U4000
REAR DERAILLEUR - Shimano CUES U3020; SGS
BOTTOM BRACKET - EB2401
CHAIN - Shimano LG500
CHAINSET - Merida Comp TK; 42 tooth chainset;
CASSETTE - Shimano LG300; 11-36 teeth; 9 speed
BRAKE LEVER - Shimano MT200
FRONT BRAKE - Shimano MT200 / UR300 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
REAR BRAKE - Shimano MT200 / UR300; 2 piston hydraulic disc brake caliper with Shimano RT26; 180mm rotor
GRIP - Merida Comp EC
HANDLEBAR - Merida Expert CC; aluminium; 620mm wide; Flat
STEM - Merida Expert IR II; aluminium; 31.8mm diameter; 5 degree rise; length: 80mm, (XS), 90mm, (S), 100mm, (M), 110mm (L/XL)
HEAD SET - Merida 8158
PEDAL - VP Components - VPE-891
SADDLE - Merida Comp SL with V-mount
SEAT POST - Merida Expert; aluminium; 30.9mm diameter; in-line
WHEEL SIZE - 700c
RIMS - Merida Comp SL; 17mm inner rim width; 22mm rim depth; aluminium
SPOKES - Black stainless
FRONT HUB - VP CLK170F; 100 x 12mm; 28 spokes; Centerlock with Merida Expert SL axle
REAR HUB - Mahle X35+ Hub motor; 40Nm
FRONT TYRE - Continental Contact Urban; 700 x 40c; wire bead
REAR TYRE - Continental Contact Urban; 700 x 40c; wire bead
FRONT LIGHT - CG-119PG front light
REAR LIGHT - CG-404RG rear light
