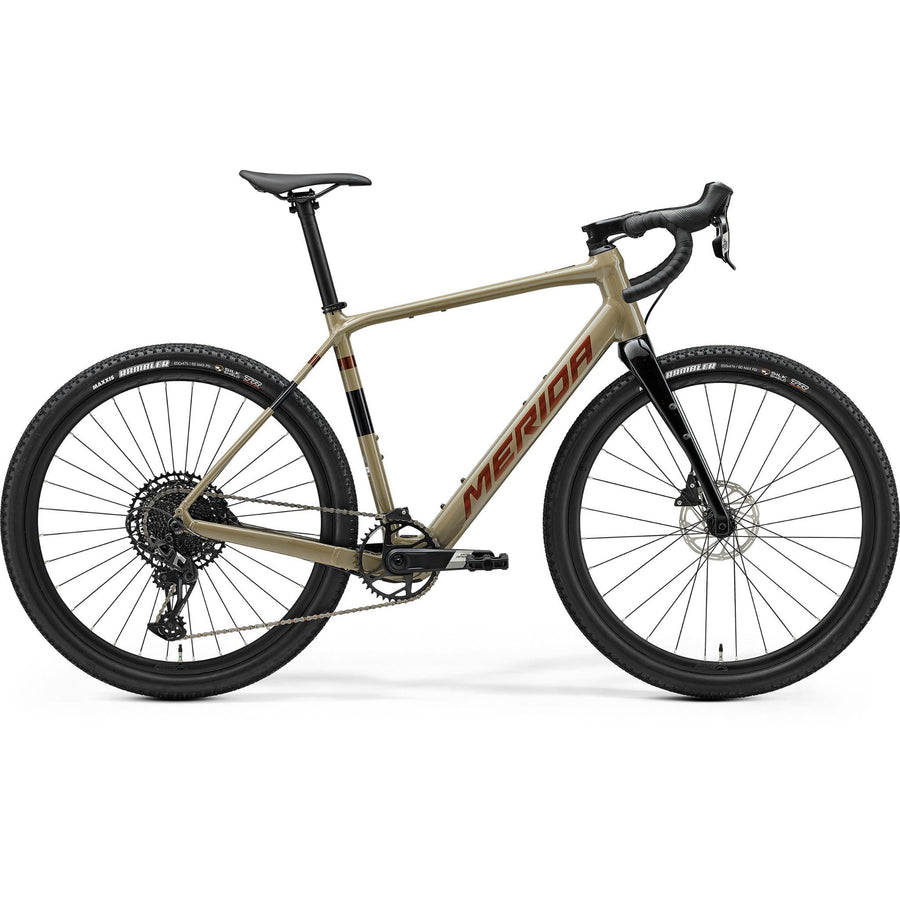

A gravel bike with motor assistance, allowing you to go further, tackle more and generally just grin a lot. MAHLE's ebike-motion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube. The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it's not engaged. The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features.
The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat. The eSilex can be run with either 700c or 650b wheels.
Specifications
-
Discipline Gravel
-
Material Aluminium
-
Front Travel Rigid
-
Rear Travel N/A
-
Wheel Size 650b
-
Warranty Lifetime
Frame - Lite II - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards, 27.5 x 47c
Fork - Merida SILEX CF2; carbon
Headset - Merida 8158
Stem - Merida Team CC III; material: aluminium; 31.8mm diameter; -6 degree rise; length: 80mm
Handlebar - Merida Expert GRII; material: aluminium; (XS-S) - 400mm, M - 420mm, (L-XL) - 440mm
Grip - Merida Road Expert
Brake Type - Hydraulic Disc
Front Brake - SRAM Apex with SRAM Centerline; 160mm
Rear Brake - SRAM Apex with SRAM Centerline; 160mm
Front Tyre - Maxxis Rambler; 650Bx47; ShieldWall / TLR
Rear Tyre - Maxxis Rambler; 650Bx47; ShieldWall / TLR
Wheel Size - 650b
Rim - Merida Expert CX; 19mm inner rim width; 24mm rim depth; material: aluminium; Tubeless ready (tubeless tape and valves not included)
Spokes - Black stainless ; black nipples
Front Hub - Shimano HB-TC500; 100x12mm; 28 spoke; Centerlock
Speeds - 12
Rear Derailleur - SRAM Apex Eagle
Chain - SRAM SX Eagle
Cassette - SRAM PG-1210 Eagle; 11-50 teeth; 12 Speed
Chainset - SRAM Apex 1 Wide Crankset; 40 tooth chainset; Crank: (XS-M/L) - 170mm, (L-XL) - 175mm
Bottom Bracket - SRAM DUB BSA 68 Road Wide
Pedals - VP VPE-891
Saddle - Merida Comp SL; V-mount; incl. Merida minitool
Seat Post - Merida Expert CC; material: carbon; 30.9mm diameter; in-line
Motor - Mahle ix250Wh Battery Pack; 250Wh, Mahle X30 Drive Unit
Battery Capacity - 250Wh
eSilex+ 600 2026
