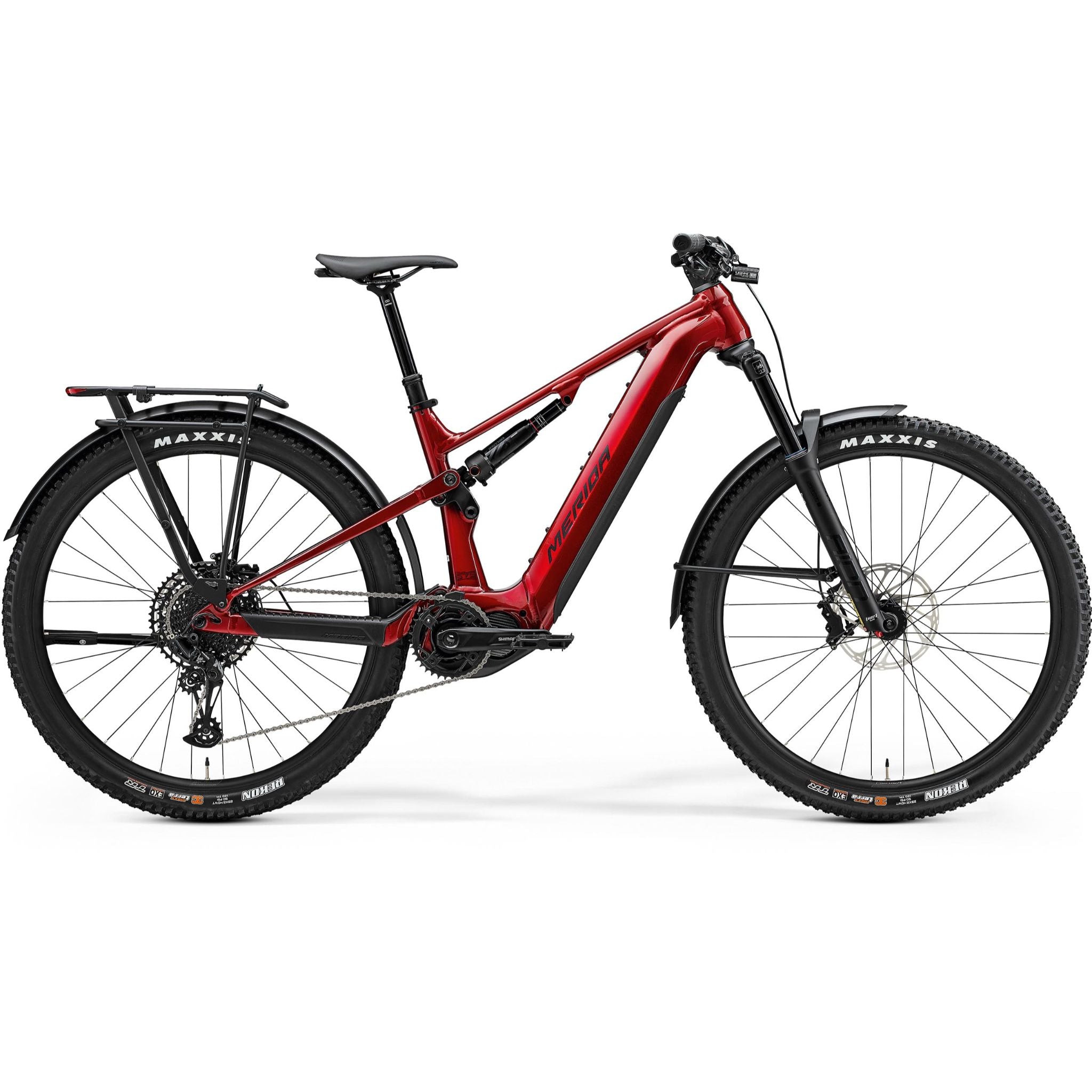

The eOne-Forty 675 EQ is a versatile, long-range electric trail bike that comes fully equipped for everyday riding, with lights, a carrier rack, kickstand and full mudguards fitted. It's just as at home on the commute as it is on your favourite trails.
The Shimano EP801 motor delivers 85Nm of torque, and the impressive 750Wh removable battery can be boosted with a 360Wh range extender, available separately. The suspension platform and geometry are influenced by Merida's award-winning trail and enduro bikes, giving confident, capable off-road handling with 150mm of travel up front and 143mm at the rear.
Merida's simplified Agilometer sizing and low standover heights let you choose the handling you want: size up for off-road stability or go shorter for agility. The bike runs full 29" wheels, with the option to switch to a mixed setup, and the build includes a SRAM Eagle 70 Transmission drivetrain, SRAM DB8 4-piston brakes with 200mm rotors and a size-specific dropper post.
Features
- Durable Lite IV hydroformed aluminium frame with 143mm rear wheel travel
- Shimano EP801 motor with 85Nm of torque
- Removable 750Wh battery, optional 360Wh range extender
- 150mm SR Suntour Aion 36X fork and RockShox Super Deluxe Select shock
- SRAM Eagle 70 Transmission 12-speed drivetrain
- SRAM DB8 4-piston brakes with 200mm rotors
- Full 29" Merida tubeless-ready wheels, with the option to run a mixed setup
- Lights, carrier rack, kickstand and full mudguards fitted
Specifications
DisciplineTrail
MaterialAluminium
Front Travel150mm
Rear Travel143mm
Wheel Size29"
WarrantyLifetime (frame)
Frame - Lite IV, hydroformed 6061 double butted aluminium with integrated battery. Internal cable routing via Smart Entry ports. Tapered head tube, 148x12mm axle standard. Max tyre size 27.5x2.8"
Motor - Shimano EP801; 85Nm
Battery - Trendpower internal battery Gen 2; 750Wh
Display - Shimano SC-EN600
Charger - Trendpower EU Smart Charger; 4A
Mode switch - Shimano SW-EN600-L
Shock - RockShox Super Deluxe Select
Fork - SR Suntour SF25-Aion 36X; Boost axle standard
Speeds - 12
Shift levers - Limotech RM10 (for SRAM MMX) dropper lever and SRAM Eagle 70 Transmission shifter
Rear derailleur - SRAM Eagle 70
Bottom bracket - Part of Shimano Steps motor
Chain - SRAM Eagle 70 Flattop
Chainset - SRAM XX Eagle Transmission E-MTB for Steps; 36 tooth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide
Cassette - SRAM PG-1270 Eagle; 10-50 teeth; 12 speed
Brake levers - SRAM DB8
Front brake - SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
Rear brake - SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
Grips - Merida Expert EC
Handlebar - Merida Expert eTR; 780mm wide; XS-S 20mm rise, M-XL 30mm rise
Stem - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40mm all sizes
Headset - Acros ICR Merida external neck with Blocklock
Pedals - VP VPE-533
Saddle - Merida Comp SL; 28% recycled material; V-mount; including Merida mini tool
Seatpost - Merida Expert TR II; 34.9mm diameter; in-line; XS 125mm, S 150mm, M/L 200mm, XL 230mm seatpost travel
Rims - Merida Expert TR II; 28mm inner rim width; aluminium; tubeless ready (tubeless tape and valves not included); 29"
Spokes - Black stainless
Front hub - Novatec SL-Elite D041SB-B15; 110x15mm; 32 spoke; 6 bolt
Rear hub - Novatec SL-Team D462SB-S3S-B12-11S; 148x12mm; 32 spoke; 6 bolt; with Merida Expert TR axle including removable lever and 6/4mm Allen key
Front tyre - Maxxis Rekon; 29x2.4"; Kevlar bead, folding; 3C EXO MaxxTerra
Rear tyre - Maxxis Rekon; 29x2.4"; Kevlar bead, folding; TR 3C EXO MaxxTerra
Front light - Lezyne E-Bike Power StVZO E115
Rear light - Spanninga Commuter Glow XE integrated in Merida MIK HD carrier
Other - Massload MA-013 carrier rack, Atranvelo ED-100-PC kickstand and full mudguards
eOne-Forty 675 EQ 2025
- Electric · Trail / Enduro
- 150 / 143mm travel
- 29″ wheels
- Alloy frame
