The eOne-Eighty FR 800 is the full-bore, attack-ready version of Merida's already hard-hitting eOne-Eighty. The FR spec adds a RockShox Vivid Coil Ultimate shock and seriously powerful SRAM Maven brakes, so it's equipped for the most challenging features you could want to send it down.
Driving it is the proven Bosch Performance Line CX Gen 5 motor, pumping out up to 120Nm of torque and 750W of peak power following Bosch's free Performance Upgrade 2.0 software update, all fed by a large, user-removable 800Wh battery. In short, it's a downhill bike with a built-in uplift.
A 180mm RockShox Zeb Ultimate fork matches the coil shock up front, and the mixed-wheel setup, with a 29" front and 27.5" rear, keeps it agile. SRAM's Eagle 70 Transmission handles the shifting, Reynolds 309 Enduro Comp rims and Maxxis Assegai and Minion DHR II tyres take the hits, and the shock comes with a size-specific spring rate out of the box.
Features
- Tough Lite I aluminium frame with 180mm rear wheel travel
- Mixed wheel sizes as standard for fun, agile handling
- 180mm RockShox Zeb Ultimate fork and Vivid Coil Ultimate shock
- Bosch Performance Line CX Gen 5 motor, up to 120Nm and 750W peak
- User-removable 800Wh battery
- SRAM Eagle 70 Transmission 12-speed drivetrain
- SRAM Maven Base 4-piston brakes with 220mm and 200mm rotors
- Reynolds 309 Enduro Comp rims with tough Maxxis tyres
Sizing
- XShort: 145cm - 165cm
- Short: 155cm - 175cm
- Mid: 165cm - 185cm
- Long: 175cm - 195cm
- XLong: 185cm and over
Merida encourages riders to consider their riding style when choosing a frame size. For example, a 175cm rider could choose a Short frame for agility, Mid for a balanced ride or Long for stability.
Specifications
DisciplineBikepark/
Enduro MaterialAluminium
Front Travel180mm
Rear Travel180mm
Wheel SizeMX (29"/
27.5") WarrantyLifetime
Frame - Lite I; all aluminium; 180mm travel; 148x12mm bolt-through axle standard; removable in-tube battery; max tyre size 27.5x2.6"
Fork - RockShox Zeb Ultimate eMTB; Air; 180mm travel; tapered; 44mm fork offset
Rear shock - RockShox Vivid Coil Ultimate; coil spring rates: XShort and Short 300lbs, Mid 350lbs, Long 400lbs, XLong 450lbs
Stem - Merida Expert eTRII; material: aluminium; 35mm diameter; 0 degree rise; GoPro and Supernova mount; length: 50mm
Handlebar - Merida Expert eTR; 780mm wide
Grips - Merida Expert TR
Front brake - SRAM Maven Base; 4 piston with SRAM CenterLine; 220mm
Rear brake - SRAM Maven Base; 4 piston with SRAM CenterLine; 200mm
Front tyre - Maxxis Assegai; 29x2.5"; Kevlar bead; TR EXO+ 3C MaxxGrip
Rear tyre - Maxxis Minion DHR II; 27.5x2.4"; Kevlar bead; 3C DD TR MaxxTerra
Wheel size - 29" front, 27.5" rear
Rims - Reynolds 309 Enduro Comp; 30mm inner rim width
Spokes - Black stainless; black nipples
Front hub - Novatec SL-Elite D041SB-B15; 110x15mm; 32 spoke; 6 bolt
Rear hub - Novatec SL-Team D462SB-S3S-B12-11S; 148x12mm; 32 spoke; 6 bolt
Rear derailleur - SRAM Eagle 70 Transmission
Shift levers - Front: SRAM dropper lever MMX, Rear: SRAM Eagle 70 Transmission shifter
Chain - SRAM Eagle 70 Flattop
Cassette - SRAM CS XS 1270 T-Type; 10-52 teeth; 12 speed
Chainset - SRAM Eagle Transmission E-MTB for Bosch; 36 tooth; cranks: SRAM S1000 Eagle E-MTB; 160mm
Pedals - VP VPE-532
Saddle - Merida Comp SL; V-mount; incl. Merida mini tool
Seatpost - Merida Expert TR II; 34.9mm diameter; in-line; XS 125mm, S 150mm, M 170mm, L 200mm, XL 230mm seatpost travel
Motor - Bosch Performance Line CX, Gen 5; up to 120Nm; 750W peak
Battery - 800Wh
Display - Bosch Purion 400

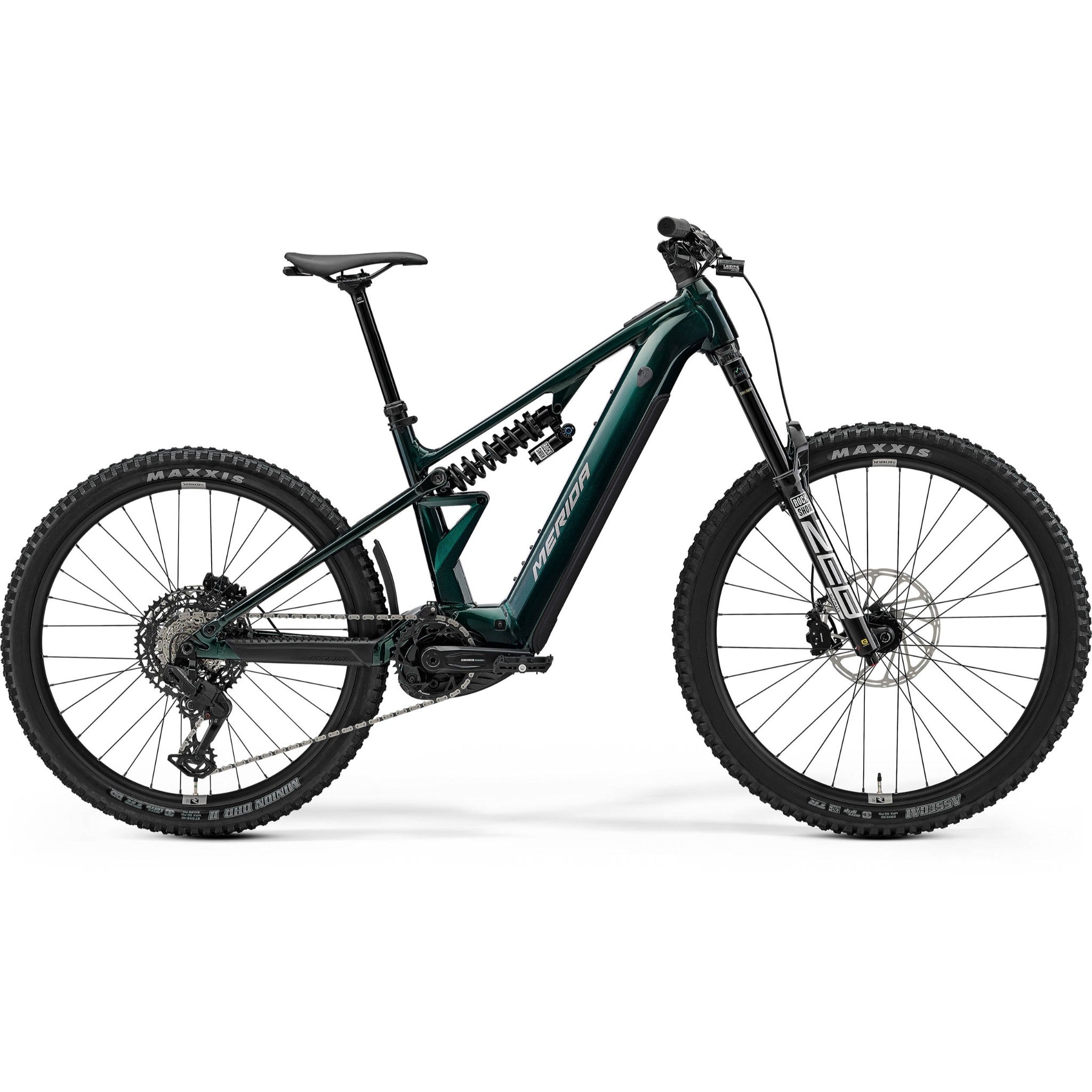

eOne-Eighty FR 800 2026
