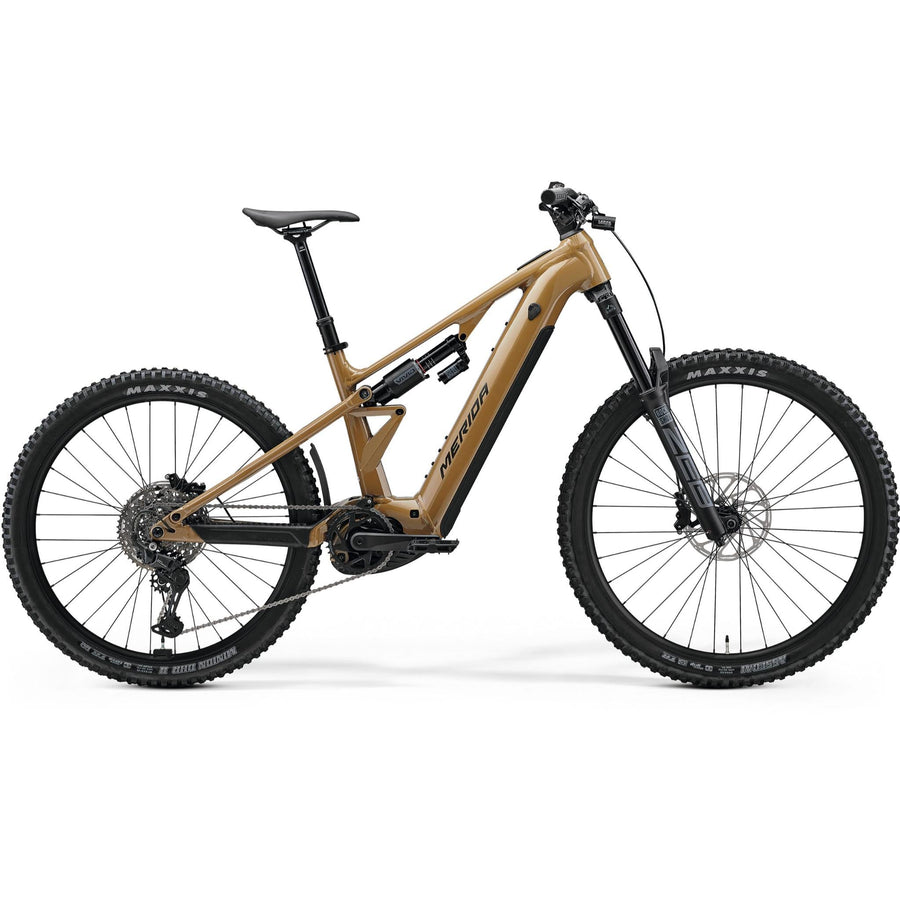

The eOne-Eighty 500 is built for taking on the gnarliest trails wherever you find them.
With 180mm of travel at either end from our robust aluminium frame, a RockShox Zeb Base fork and Vivid Base shock mean this bike is ready to eat up rock gardens for breakfast, drops for lunch and some gaps for dinner - or whatever you're hungry for.
'Merida’s new eOne-Eighty is the most capable long-travel e-bike I’ve ever tested' - MBR Magazine
'The eONE-EIGHTY is a perfect match for both freeriders and beginners alike!' - ebike-mtb.com
At the heart of the eOne-Eighty is the Bosch Performance Line CX drive unit, offering 85nm of smoothly delivered torque. This rider favourite motor runs silent and is proudly one of the most reliable e-mtb units on the market.
Features:
- Bosch Performance Line CX 85Nm motor
- Bosch Power Tube 800Wh battery
- Rock Shox Zeb Base 180mm air fork
- Rock Shox Vivid Base shock
- Shimano CUES 10 speed transmission
- SRAM DB4 4-piston hydraulic disc brakes
Merida Sizing -
- X-Short: 145cm - 165cm
- Short: 155cm - 175cm
- Mid: 165cm - 185cm
- Long: 175cm - 195cm
- X-Long: 185cm+
Merida's latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.
For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.
Contact us at support@biketart.com if you wish to discuss which may work for you.
Specifications
-
Discipline Enduro
-
Material Aluminium
-
Front Travel 180mm
-
Rear Travel 180mm
-
Wheel Size 29" / 27.5"
-
Warranty Lifetime
Frame - LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6”
Rear Shock - Rock Shox Vivid Base
Fork - Rock Shox Zeb Baser eMTB; Air; 180mm travel; Tapered; 44mm fork offset
Headset - Acros ICR Merida External neck w/ Blocklock
Stem - Merida Expert eTR II; material: aluminium; 35mm diameter; 0 degree rise; Supernova mount; length: 40mm
Handlebar - Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
Grip - Merida Comp TR
Brake Type - Hydraulic Disc
Front Brake - SRAM DB4 stealth; 4 piston with SRAM CenterLine; 200mm
Rear Brake - SRAM DB4 stealth; 4 piston with SRAM CenterLine; 200mm
Front Tyre - Maxxis Assegai; 29x2.5 "; kevlar bead; TR EXO+ 3C MaxxGrip
Rear Tyre - Maxxis Minion DHR II; 27.5x2.4 "; kevlar bead; 3C DD TR MaxxTerra
Wheel Size - 29" / 27.5"
Rim - Merida Expert TR II; 110x15mm; 148x12mm; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29"; rear 27.5"
Spokes - Black stainless ; black nipples
Front Hub - Shimano TC500; 15x100mm; 32 spoke; Centerlock
Rear Hub - Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock
Speeds - 10
Rear Derailleur - Shimano CUES U6000; GS
Shift Levers - Front: Shimano SL -MT500-L Rear: Shimano CUES U6000-10
Chain - Shimano LG500
Cassette - Shimano Cues LG400; 11-48 teeth; 10 Speed
Chainset - FSA Direct Mount Steel Chainring; 36 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 160mm
Pedals - VP VPE-533
Saddle - Merida Comp SL; V-mount; incl. Merida minitool
Seat Post - Merida Expert TR II; 34.9mm diameter; in-line; XS - 125mm, S - 150mm, M - 170mm, L - 200mm, XL - 230mm seat post travel
Motor - Bosch PowerTube 800 ; 800Wh, Bosch Performance Line CX
Battery Capacity - 800Wh
eBike Display - Bosch Purion 200
eOne-Eighty 500 2026
