Description
The eFloat HD 700 EQ is ideal for people who need a versatile e-bike for load carrying but don't want the inconvenience of a traditional cargo e-bike.
Merida's robust aluminium frame is fitted with a heavy-duty rear rack and headtube-mounted front rack, boosting the cargo carrying capacCity to 50 kg, so you can get whatever you want wherever it needs to go.
Thanks to 29" wheels with fast-rolling 2.25" tyres, and the Bosch CX drive unit with 800wh removable battery, it's a breeze to ride around too.
SIZING -
- S: 155-165cm
- M: 160-177cm
Specifications
-
Discipline Commute/Leisure
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel N/A
-
Wheel Size 29"
-
Warranty Lifetime
Frame - Lite II; aluminium; 148 x12mm axle standard; intube battery; max. tyre size 29" x 2.4" with fender
Fork - SR Suntour Mobie 34-D-Boost; Air; 120mm travel
Headset - Acros ICR Merida Integrated neck w/ Blocklock
Stem - Merida Expert TK III; material: aluminium; 31.8mm diameter;; length: (S-M) - 70mm, (L-XL) - 90mm
Handlebar - Merida Expert; material: aluminium; 680mm wide; 15mm rise
Grip - Merida Expert TK
Brake Type - Hydraulic Disc
Front Brake - Shimano Cues U8000; 4 piston with Shimano RT CL800; 180mm
Rear Brake - Shimano Cues U8000; 4 piston with Shimano RT CL800; 180mm
Front Tyre - Schwalbe Energizer Plus Performance; 622-55; wired, reflecting line
Rear Tyre - Schwalbe Energizer Plus Performance; 622-55; wired, reflecting line
Wheel Size - 29"
Rim - Merida Comp TR II; 110x15mm; 148x12mm; 28mm inner rim width; material: aluminium; Tubeless ready (tubeless tape and valves not included); 29"
Spokes - Black stainless ; black nipples
Front Hub - Shimano TC500; 15x100mm; 32 spoke; Centerlock
Rear Hub - Shimano TC500; 12x148mm; 32 spoke; Centerlock
Speeds - 11
Rear Derailleur - Shimano XT LG
Shift Levers - Front: Shimano SL -MT500-L Rear: Shimano XT
Chain - Shimano LG500
Cassette - Shimano LG400; 11-50 teeth; 11 Speed
Chainset - FSA Direct Mount Steel MT Chainring and Chainguard; 38 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 165mm
Pedals - VP VPE-541P
Saddle - Merida Expert TK II; V-mount
Seat Post - Merida Comp TR IV; 34.9mm diameter; in-line; 150mm seat post travel
Motor - Bosch PowerTube 800 ; 800Wh, Bosch Performance Line CX
Battery Capacity - 800Wh
eBike Display - Bosch Kiox 500

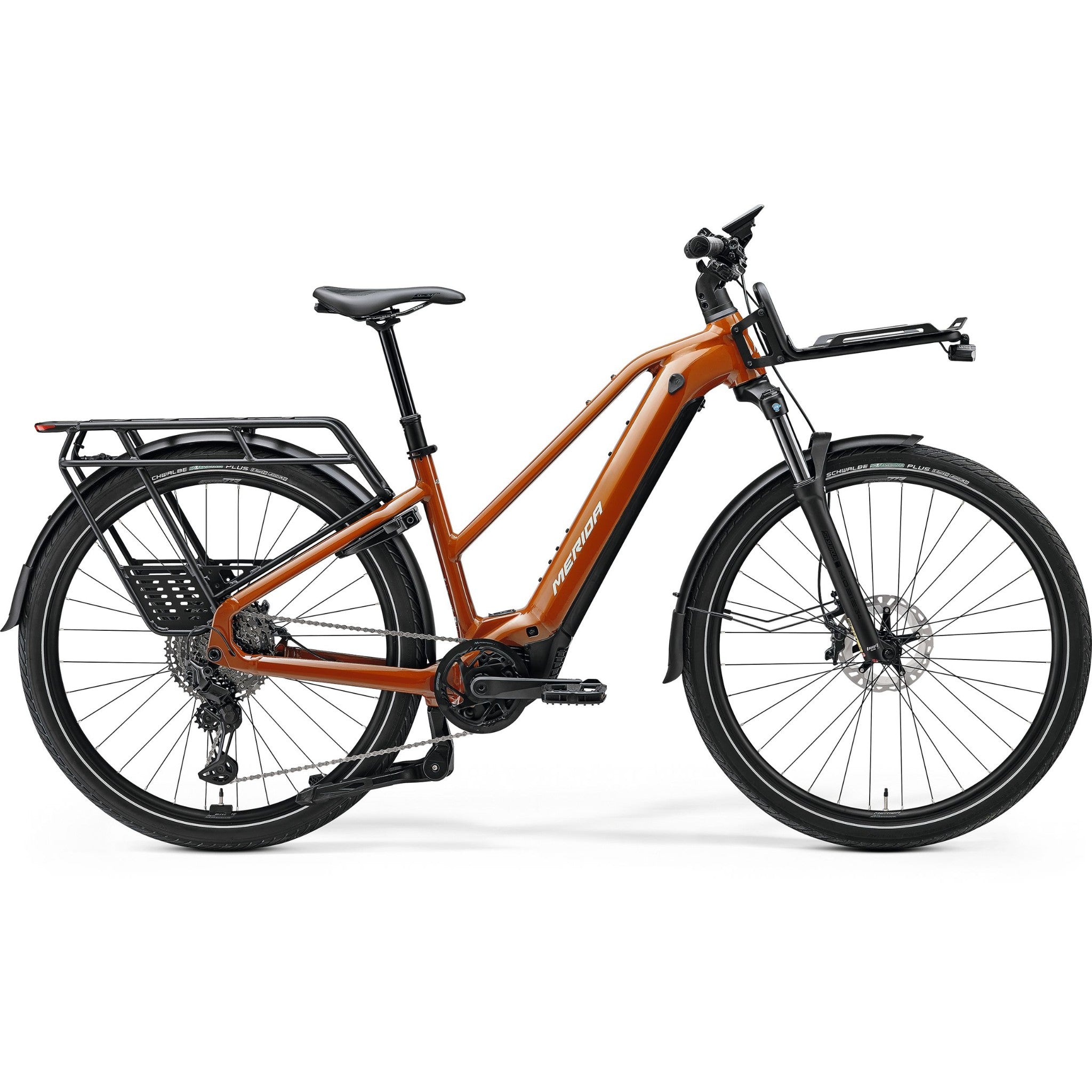

Merida eFloat HD 700 EQ Womens 2026
