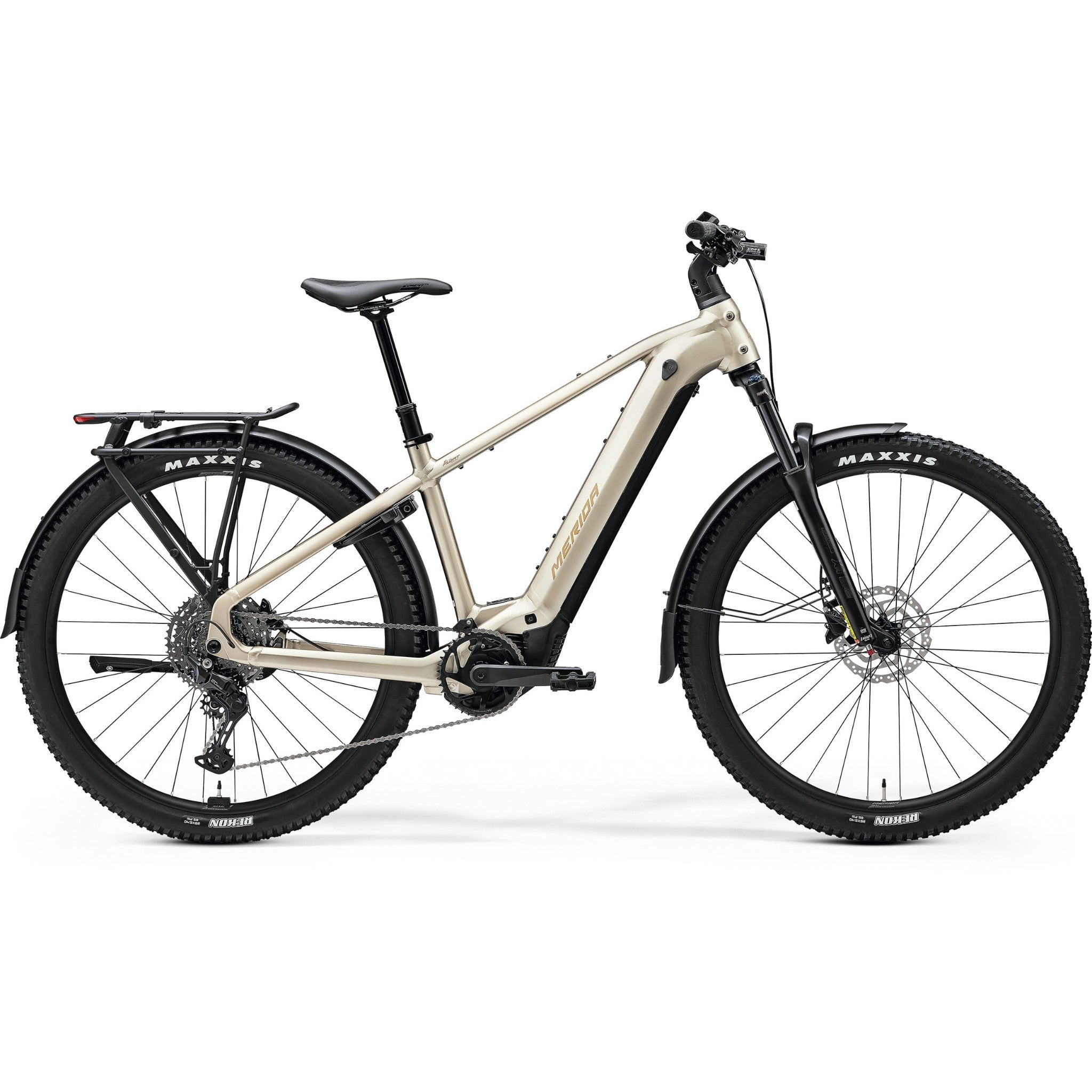

The eFloat CC 500 EQ is an electric hybrid built for comfortable commuting miles and relaxed weekend rides. Its strong, light Merida aluminium frame is fitted with reliable components, ready to give you many miles of easy, enjoyable riding.
Grippy 2.4" Maxxis tyres on smooth-rolling 29" wheels and a 120mm SR Suntour air fork take broken road surfaces and off-road trails in their stride, and a 150mm dropper seatpost lets you drop the saddle out of the way on steeper or rougher sections.
It comes fully equipped with lights, a lock, mudguards, a rear rack and a kickstand, making it an ideal city companion too. The Bosch Performance Line CX Gen 5 motor, with up to 120Nm of torque, and a large 800Wh PowerTube battery give smooth, dependable support on the hills and plenty of range for longer days out.
Features
- Lite II aluminium frame with in-tube battery and room for 29x2.4" tyres with mudguards
- Bosch Performance Line CX Gen 5 motor with up to 120Nm of torque
- Large-capacity Bosch PowerTube 800Wh battery
- 120mm SR Suntour X1 Boost air fork
- Shimano Cues 1x10 drivetrain with 11-48T cassette
- Merida Comp TR IV dropper seatpost with 150mm travel
- Fully equipped with lights, lock, mudguards, rear rack and kickstand
Specifications
DisciplineLeisure/
Commute MaterialAluminium
Front Travel120mm
Rear TravelHardtail
Wheel Size29"
WarrantyLifetime
Frame - Lite II; aluminium; max tyre size 29x2.4" with mudguard; 148x12mm axle standard; in-tube battery
Fork - SR Suntour X1-Boost; Air; 120mm travel
Headset - Acros ICR Merida integrated neck with Blocklock
Stem - Merida Expert TK III; material: aluminium; 31.8mm diameter; length: S-M 70mm, L-XL 90mm
Handlebar - Merida Expert CC; material: aluminium; 720mm wide; 10mm rise
Grips - Merida Comp TK
Brake type - Hydraulic disc
Front brake - Shimano MT200; 2 piston with Shimano RT10; 180mm
Rear brake - Shimano MT200; 2 piston with Shimano RT10; 180mm
Front tyre - Maxxis Metropass AT; 29x2.4"; wired
Rear tyre - Maxxis Metropass AT; 29x2.4"; wired
Wheel size - 29"
Rims - Merida Comp TR II; 28mm inner rim width; material: aluminium; tubeless ready (tubeless tape and valves not included); 29"
Spokes - Black stainless; black nipples
Front hub - Shimano TC500; 15x100mm; 32 spoke; Centerlock
Rear hub - Shimano TC500; 12x148mm; 32 spoke; Centerlock
Speeds - 10
Rear derailleur - Shimano Cues U6000; GS
Shift levers - Front: Shimano SL-MT500-L, Rear: Shimano Cues U6000-10
Chain - Shimano LG500
Cassette - Shimano Cues LG400; 11-48 teeth; 10 speed
Chainset - FSA direct mount steel chainring; 38 tooth; cranks: FSA CK-220 wide e-bike forged crankset; 165mm
Pedals - VP VPE-891
Saddle - Merida Expert TK II; V-mount
Seatpost - Merida Comp TR IV; 34.9mm diameter; in-line; 150mm seatpost travel
Motor - Bosch Performance Line CX, Gen 5; up to 120Nm; 750W peak
Battery - Bosch PowerTube 800; 800Wh
Display - Bosch Purion 200
eFloat CC 500 EQ 2026
- Electric · Hybrid/Commute
- Hardtail · 120mm fork
- Alloy frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The eFloat CC 500 EQ is an electric hybrid built for comfortable commuting miles and relaxed weekend rides. Its strong, light Merida aluminium frame is fitted with reliable components, ready to give you many miles of easy, enjoyable riding.
Grippy 2.4" Maxxis tyres on smooth-rolling 29" wheels and a 120mm SR Suntour air fork take broken road surfaces and off-road trails in their stride, and a 150mm dropper seatpost lets you drop the saddle out of the way on steeper or rougher sections.
It comes fully equipped with lights, a lock, mudguards, a rear rack and a kickstand, making it an ideal city companion too. The Bosch Performance Line CX Gen 5 motor, with up to 120Nm of torque, and a large 800Wh PowerTube battery give smooth, dependable support on the hills and plenty of range for longer days out.
Features
- Lite II aluminium frame with in-tube battery and room for 29x2.4" tyres with mudguards
- Bosch Performance Line CX Gen 5 motor with up to 120Nm of torque
- Large-capacity Bosch PowerTube 800Wh battery
- 120mm SR Suntour X1 Boost air fork
- Shimano Cues 1x10 drivetrain with 11-48T cassette
- Merida Comp TR IV dropper seatpost with 150mm travel
- Fully equipped with lights, lock, mudguards, rear rack and kickstand
Specifications
DisciplineLeisure/
Commute MaterialAluminium
Front Travel120mm
Rear TravelHardtail
Wheel Size29"
WarrantyLifetime
Frame - Lite II; aluminium; max tyre size 29x2.4" with mudguard; 148x12mm axle standard; in-tube battery
Fork - SR Suntour X1-Boost; Air; 120mm travel
Headset - Acros ICR Merida integrated neck with Blocklock
Stem - Merida Expert TK III; material: aluminium; 31.8mm diameter; length: S-M 70mm, L-XL 90mm
Handlebar - Merida Expert CC; material: aluminium; 720mm wide; 10mm rise
Grips - Merida Comp TK
Brake type - Hydraulic disc
Front brake - Shimano MT200; 2 piston with Shimano RT10; 180mm
Rear brake - Shimano MT200; 2 piston with Shimano RT10; 180mm
Front tyre - Maxxis Metropass AT; 29x2.4"; wired
Rear tyre - Maxxis Metropass AT; 29x2.4"; wired
Wheel size - 29"
Rims - Merida Comp TR II; 28mm inner rim width; material: aluminium; tubeless ready (tubeless tape and valves not included); 29"
Spokes - Black stainless; black nipples
Front hub - Shimano TC500; 15x100mm; 32 spoke; Centerlock
Rear hub - Shimano TC500; 12x148mm; 32 spoke; Centerlock
Speeds - 10
Rear derailleur - Shimano Cues U6000; GS
Shift levers - Front: Shimano SL-MT500-L, Rear: Shimano Cues U6000-10
Chain - Shimano LG500
Cassette - Shimano Cues LG400; 11-48 teeth; 10 speed
Chainset - FSA direct mount steel chainring; 38 tooth; cranks: FSA CK-220 wide e-bike forged crankset; 165mm
Pedals - VP VPE-891
Saddle - Merida Expert TK II; V-mount
Seatpost - Merida Comp TR IV; 34.9mm diameter; in-line; 150mm seatpost travel
Motor - Bosch Performance Line CX, Gen 5; up to 120Nm; 750W peak
Battery - Bosch PowerTube 800; 800Wh
Display - Bosch Purion 200
