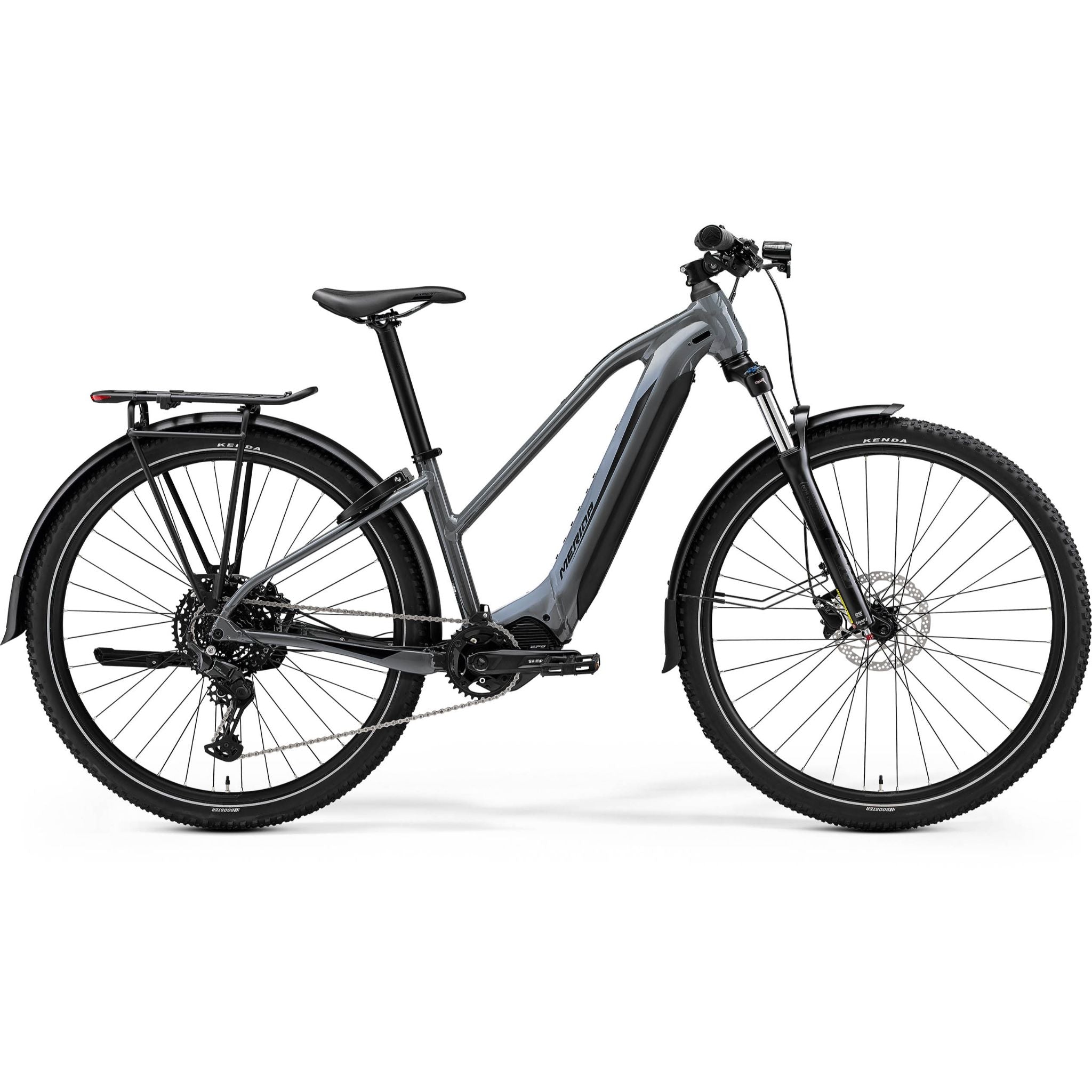

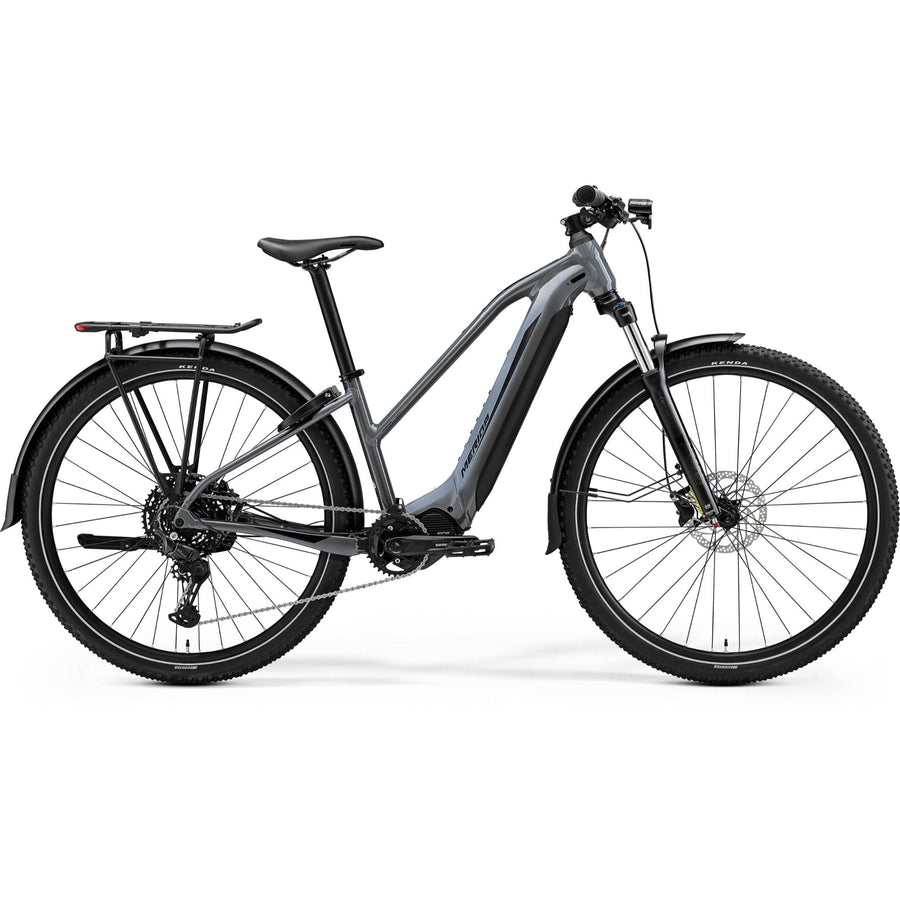

The eBig Tour 400 is the cycling equivalent of an SUV: stylish, practical and ready for just about anything. Its 29" wheels roll effortlessly, and the fast, grippy 2.2" Kenda Booster tyres fit neatly inside the full-length mudguards for year-round riding.
The dropped top tube gives a really low standover height, making it easy to get on and off and helping you feel more confident on the bike. Power comes from Shimano's EP6 motor with 85Nm of torque and a 630Wh battery integrated into the frame. Technical touches from Merida's award-winning eOne-Sixty carry over too, including a satellite charging socket, a double-compound battery compartment cover and a neat bottle boss system with tidy cable routing.
It comes fully equipped for everyday use, with reflective tyres, a rack with an integrated rear light, a Lezyne front light, an integrated frame lock and a kickstand. A 100mm SR Suntour fork smooths out rough surfaces, and the Shimano Cues drivetrain and hydraulic disc brakes are reliable and easy to live with.
Features
- Lightweight aluminium frame with low step-through design and integrated 630Wh battery
- Shimano EP6 motor with 85Nm of torque
- 100mm SR Suntour XCM34 Boost fork with lockout
- Mudguards, rack, front and rear lights, frame lock and kickstand fitted
- 29" wheels with high-volume Kenda Booster tyres for city or countryside
- Shimano Cues drivetrain and Shimano MT200 hydraulic disc brakes
- Satellite charging port and tidy integrated cable routing
Specifications
DisciplineLeisure
MaterialAluminium
Front Travel100mm
Rear TravelHardtail
Wheel Size29"
WarrantyLifetime (frame)
Frame - eBig Tour Lite IV
Fork - SR Suntour XCM34-Boost LOR DS
Motor unit - PC-049, battery cover
Motor - Shimano EP6
Battery - Shimano EN806
Charger - Shimano EC-E6002
Display - Shimano SC-EN500
Speed sensor - Shimano EW-SS301
Rims - Merida Comp CC II
Hubs - Shimano TC500-B / Shimano TC500-HM-B
Front tyre - Kenda Booster
Rear tyre - Kenda Booster
Chainring - Shimano CRE70-B
Cranks - Shimano FC-EN600
Cassette - Shimano LG300
Chain - Shimano LG500
Shift levers - Shimano Cues U6000
Rear derailleur - Shimano Cues U6000
Brakes - Shimano MT200
Rotors - Shimano RT30 / Tektro TR-35
Headset - Merida 8155
Stem - Merida Expert CT; 90mm all sizes
Handlebar - Merida Expert CC
Grips - Merida Expert TK
Seatpost - Merida Expert CC
Seat clamp - Merida Expert
Saddle - Merida Expert TK
Lights - Lezyne E-Bike Hecto StVZO E65 / Spanninga Commuter Glow XE
Frame lock - Abus 5650 LH-3
Rack - Merida MA008-1 with spring clamp
Kickstand - Massload CL-KA98
Mudguards - Sunnywheel SW-FA311-65A / SW-FA311-65E1
Pedals - VP VPE-537
eBig Tour 400 2024
- Electric · Hybrid/Commute
- Hardtail · 100mm fork
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The eBig Tour 400 is the cycling equivalent of an SUV: stylish, practical and ready for just about anything. Its 29" wheels roll effortlessly, and the fast, grippy 2.2" Kenda Booster tyres fit neatly inside the full-length mudguards for year-round riding.
The dropped top tube gives a really low standover height, making it easy to get on and off and helping you feel more confident on the bike. Power comes from Shimano's EP6 motor with 85Nm of torque and a 630Wh battery integrated into the frame. Technical touches from Merida's award-winning eOne-Sixty carry over too, including a satellite charging socket, a double-compound battery compartment cover and a neat bottle boss system with tidy cable routing.
It comes fully equipped for everyday use, with reflective tyres, a rack with an integrated rear light, a Lezyne front light, an integrated frame lock and a kickstand. A 100mm SR Suntour fork smooths out rough surfaces, and the Shimano Cues drivetrain and hydraulic disc brakes are reliable and easy to live with.
Features
- Lightweight aluminium frame with low step-through design and integrated 630Wh battery
- Shimano EP6 motor with 85Nm of torque
- 100mm SR Suntour XCM34 Boost fork with lockout
- Mudguards, rack, front and rear lights, frame lock and kickstand fitted
- 29" wheels with high-volume Kenda Booster tyres for city or countryside
- Shimano Cues drivetrain and Shimano MT200 hydraulic disc brakes
- Satellite charging port and tidy integrated cable routing
Specifications
DisciplineLeisure
MaterialAluminium
Front Travel100mm
Rear TravelHardtail
Wheel Size29"
WarrantyLifetime (frame)
Frame - eBig Tour Lite IV
Fork - SR Suntour XCM34-Boost LOR DS
Motor unit - PC-049, battery cover
Motor - Shimano EP6
Battery - Shimano EN806
Charger - Shimano EC-E6002
Display - Shimano SC-EN500
Speed sensor - Shimano EW-SS301
Rims - Merida Comp CC II
Hubs - Shimano TC500-B / Shimano TC500-HM-B
Front tyre - Kenda Booster
Rear tyre - Kenda Booster
Chainring - Shimano CRE70-B
Cranks - Shimano FC-EN600
Cassette - Shimano LG300
Chain - Shimano LG500
Shift levers - Shimano Cues U6000
Rear derailleur - Shimano Cues U6000
Brakes - Shimano MT200
Rotors - Shimano RT30 / Tektro TR-35
Headset - Merida 8155
Stem - Merida Expert CT; 90mm all sizes
Handlebar - Merida Expert CC
Grips - Merida Expert TK
Seatpost - Merida Expert CC
Seat clamp - Merida Expert
Saddle - Merida Expert TK
Lights - Lezyne E-Bike Hecto StVZO E65 / Spanninga Commuter Glow XE
Frame lock - Abus 5650 LH-3
Rack - Merida MA008-1 with spring clamp
Kickstand - Massload CL-KA98
Mudguards - Sunnywheel SW-FA311-65A / SW-FA311-65E1
Pedals - VP VPE-537
