This is the top of the dirt jump range, aimed squarely at riders spending real time on jump lines, slopestyle features and pump track berms. The Dirt 700 uses the same tough TFS aluminium frame with 26in wheels and a 135x10mm bolt-on rear axle, and it is gyro compatible if barspins and tailwhips are on the menu.
A RockShox Pike DJ air fork takes the sting out of landings with 100mm of travel on a 15x100mm axle. DT Swiss D1900 wheels with 30mm internal rims and tape already installed are built to shrug off abuse, and Maxxis DTH 26x2.3 tyres suit hard-packed dirt and concrete. Braking is deliberately mixed: a SRAM DB4 four-piston at the rear where you want control, with a lighter Tektro MD-M280 up front. The drivetrain is singlespeed, 32t to a 13t cog on 160mm cranks and a KMC Z1 wide chain.
Features
- TFS aluminium dirt jump frame, 135x10mm bolt-on rear axle, BSA threaded bottom bracket, gyro compatible
- RockShox Pike DJ air fork, 100mm travel, 15x100mm axle, 40mm offset, tapered steerer
- DT Swiss D1900 wheels, 30mm internal rims, tubeless tape installed
- SRAM DB4 four-piston rear brake with a Tektro MD-M280 front calliper
- Singlespeed drivetrain: 32t chainring to a 13t cog, KMC Z1 wide chain, 160mm cranks
- Maxxis DTH 26x2.3 tyres, clearance for up to 26x2.5
- 780mm bar with 20mm rise on a 35mm clamp stem
Specifications
Discipline MTB
Material Alloy
Front Travel 100mm
Wheel Size 26in
Frame - TFS - aluminum; 135 x10mm axle standard; BSA BB Standard, Max tyre size 26 x 2.5
Fork - Rock Shox Pike DJ; Air; 100mm travel; 15x100mm; 26x2.5 max. wheel size; 40mm fork offset; tapered
Headset - FSA NO.57
Stem - Merida Expert TR II; aluminium; 35mm diameter; 0 degree rise
Handlebar - Merida Comp TR; aluminium; 780mm wide; 20mm rise
Grips - Merida Comp DR
Brake Type - Hydraulic Disc
Brakes - Front: Tektro MD-M280; 2 piston Rear: Sram DB4; 4 piston
Wheels - Rims: DT Swiss D1900; 30mm inner rim width; 110x15mmmm; 135x10mm bolt onmm; 13t; tubeless tape ready (tape installed)
Tyres - Front: Maxxis DTH; 26x2.3 Rear: Maxxis DTH; 26x2.3
Wheel Size - 26
Speeds - 1
Chainset - Merida Expert TR II; 32 teeth; Crank Length: 160mm for all sizes
Bottom Bracket - Samox BSA 24mm EB2401
Chain - KMC Z1 wide
Cassette - 13t singlespeed cog
Saddle - Merida Comp DR
Seat Post - Merida Comp DR; aluminium; 27.2mm diameter; in-line; 250mm length

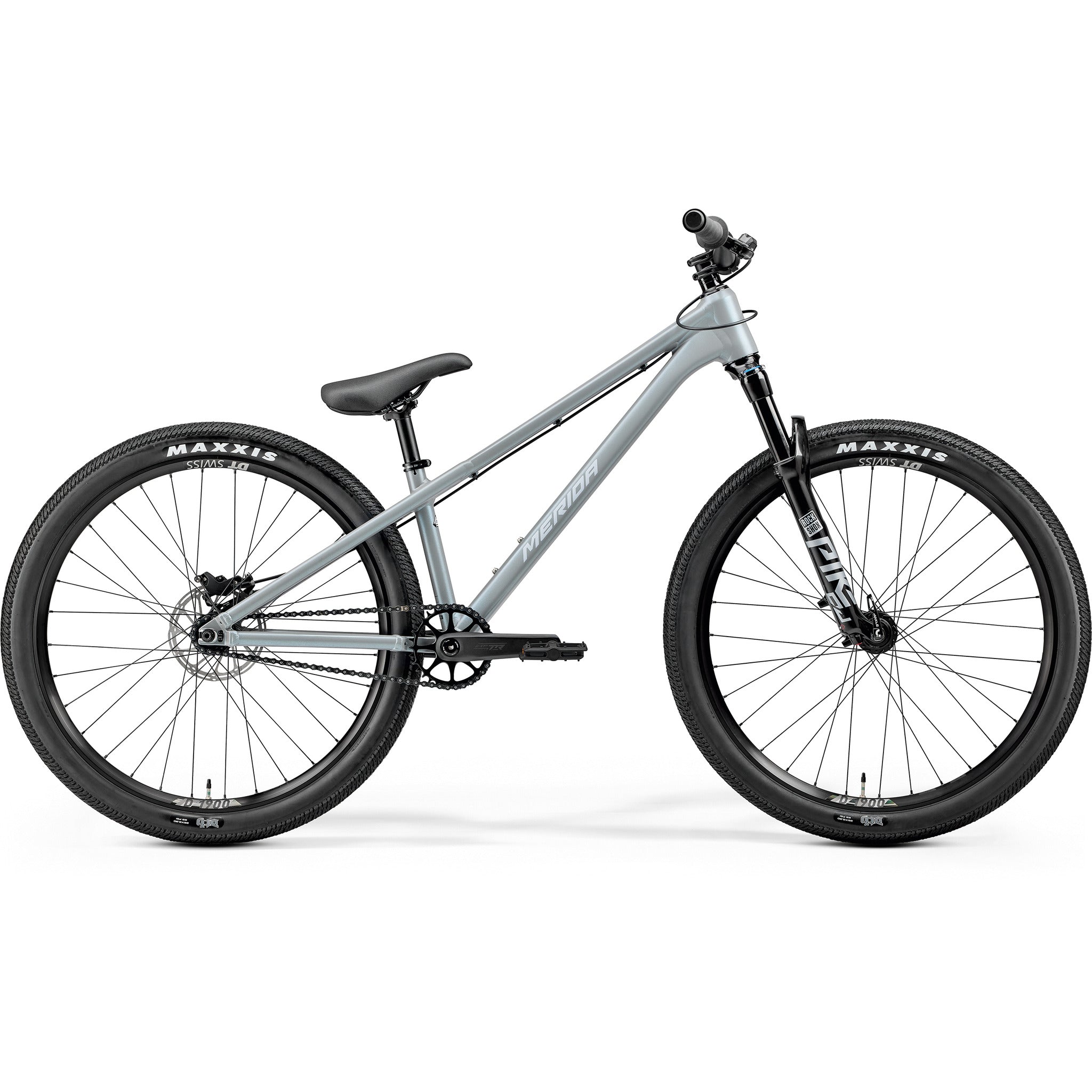

Dirt 700 2027
