Description

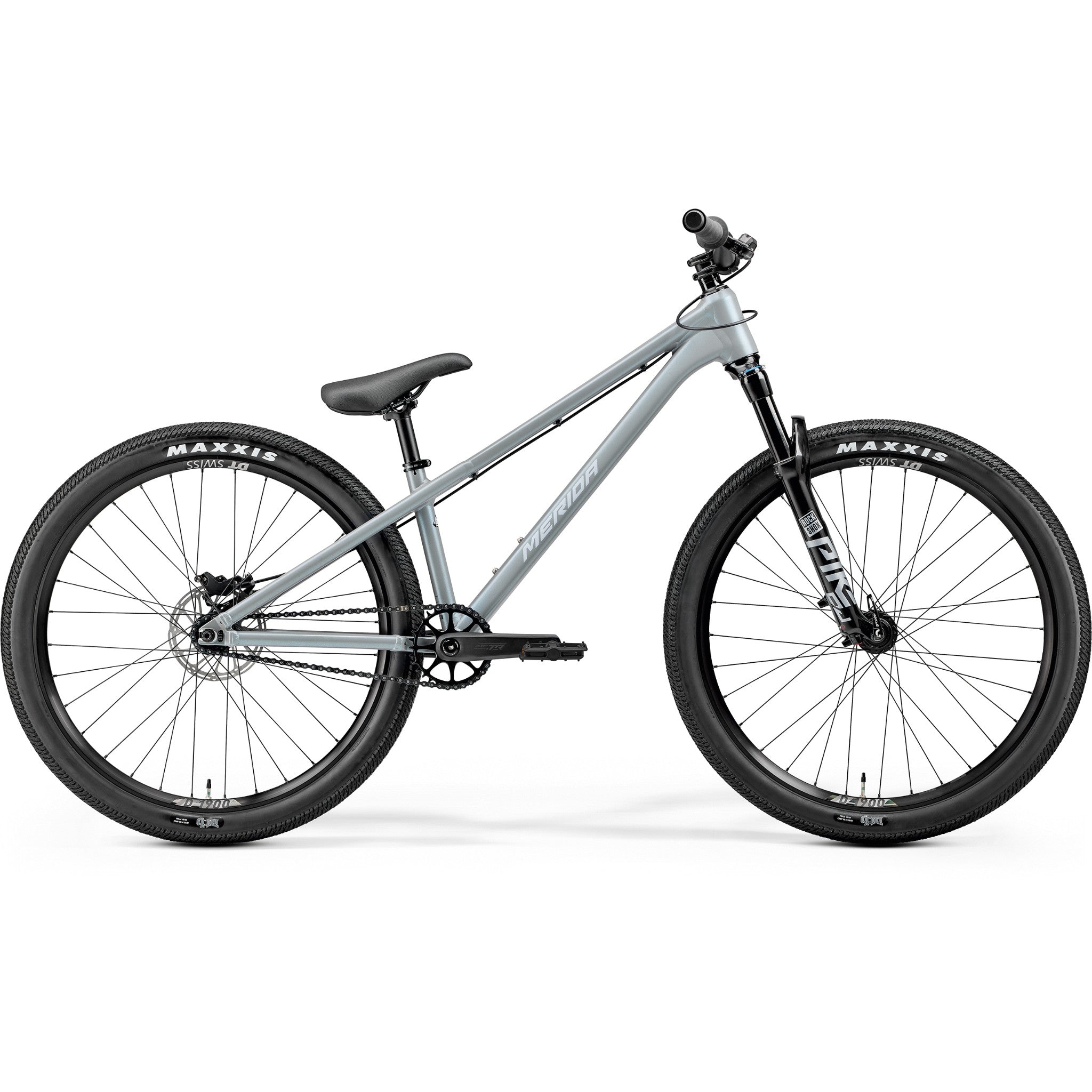

Super tough dirt jump bike, ready for sessions at the local jump lines
A super-tough aluminium frame is paired with some of the best dirt-jump-ready gear on the market, with the benchmark RockShox Pike DJ fork taking the sting out of landings and the robust 26" DT Swiss wheelset able to take a licking without flinching. We've used a controllable hydraulic SRAM four-piston rear brake with a cable-operated front - and the bike is Compatible with gyros if barspins and tailwhips are on the menu.
Key features -
- Tough 6061 aluminium frame with ability to run standard gyro
- Dirt-jump specific RockShox Pike DJ 100mm fork
- Hydraulic SRAM 4-piston rear brake plus cable operated front
- Tough 160 mm cranks
- DT Swiss D1900 26" wheelset
- Singlespeed gearing
Specifications
-
Discipline Dirt Jump
-
Material Aluminium
-
Front Travel 100mm
-
Rear Travel Hardtail
-
Wheel Size 26"
-
Warranty Lifetime
Frame - TFS - aluminium; 135 x10mm axle standard; BSA BB Standard, Max tyre size 26 x 2.5"
Fork - RockShox Pike DJ; Air; 100 mm travel; 15x100mm; 26x2.5" max. tyre size; 40mm fork offset; tapered
Headset - FSA NO.57
Stem - Merida Expert TR II; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
Handlebar - Merida Comp TR; material: aluminium; 780mm wide; 20mm rise
Grip - Merida Comp DR
Brake Type - Hydraulic Disc
Front Brake - Tektro MD-M280; 2 piston with Tektro TR-160-52; 160mm
Rear Brake - SRAM DB4; 4 piston with SRAM CenterLine; 160mm
Front Tyre - Maxxis DTH; 26x2.3"
Rear Tyre - Maxxis DTH; 26x2.3"
Wheel Size - 26"
Rim - DT Swiss D1900; 30mm inner rim width; 110x15mmmm; 135x10mm bolt onmm; 13t; tubeless tape ready (tape installed)
Spokes - Part of wheelset - DT Swiss D1900
Front Hub - Part of wheelset - DT Swiss D1900
Rear Hub - Part of wheelest - DT Swiss D1900
Speeds - 1
Chain - KMC Z1 wide
Cassette - 13 teeth single speed
Chainset - Merida Expert TR II; 32 tooth chainset; Crank length: 160mm
Bottom Bracket - Samox BSA 24mm EB2401
Pedals - Not included
Saddle - Merida Comp DR
Seat Post - Merida Comp DR; material: aluminium; 27.2mm diameter; in-line; 250mm length
