Pump tracks, dirt jumps and anywhere with a lip and a landing: that is what the Dirt 500 is for. The TFS aluminium frame takes 26in wheels on a 135x10mm rear axle with a BSA threaded bottom bracket, and it is deliberately simple, so there is very little to go wrong when you case one.
A Manitou Circus Expert air fork gives 100mm of travel on a 110x20mm axle to save your hands on flat landings, and the drivetrain is singlespeed, 32t to a 14t cog on a KMC Z1 chain and 160mm cranks. Alexrims MD30 rims with a 30mm internal width sit on Novatec hubs, Kenda K-Rad 26x2.3 tyres roll fast on hardpack and concrete, and Shimano MT200 hydraulic discs keep things in check. Pedals are included, so it is ready to ride out of the box.
Features
- TFS aluminium dirt jump frame, 135x10mm rear axle, BSA threaded bottom bracket
- Manitou Circus Expert air fork, 100mm travel, 110x20mm axle, tapered steerer
- Singlespeed drivetrain: 32t chainring to a 14t cog, KMC Z1 chain, 160mm cranks
- Shimano MT200 hydraulic disc brakes
- Alexrims MD30 tubeless-ready rims, 30mm internal width, 32H, on Novatec hubs
- Kenda K-Rad K905 26x2.3 tyres, clearance for up to 26x2.5
- 780mm bar with 20mm rise, 35mm clamp stem and platform pedals included
Specifications
Discipline MTB
Material Alloy
Front Travel 100mm
Wheel Size 26in
Frame - TFS - aluminum; 135 x10mm axle standard; BSA BB Standard, Max tyre size 26 x 2.5
Fork - Manitou Circus Expert, Air; 100mm travel; 110x20mm; 41mm fork offset; tapered
Headset - FSA NO.57SC
Stem - Merida Comp TR; aluminium; 35mm diameter; 0 degree rise
Handlebar - Merida Comp TR; aluminium; 780mm wide; 20mm rise
Grips - Merida Comp DR
Brake Type - Hydraulic Disc
Brakes - Front: Shimano MT200; 2 piston Rear: Shimano MT200; 2 piston
Wheels - Rims: Alexrims MD30; 30mm inner rim width; aluminum; 32H; tubeless ready Spokes: Black stainless Front Hub: Novatec DH61SB-HL; 110x20mm; 32 spoke; 6 bolt Rear Hub: Novatec D256SBT; 135x10 M10mm; 32 spoke; 6 bolt; 14t
Tyres - Front: Kenda K-Rad K905 ; 26x2.3; wire Rear: Kenda K-Rad K905 ; 26x2.3; wire
Wheel Size - 26
Speeds - 1
Chainset - Merida Expert TR II; 32 teeth; Crank Length: 160mm for all sizes
Bottom Bracket - Samox BSA 24mm EB2401
Chain - KMC Z1 narrow
Cassette - 14t singlespeed cog
Pedals - VP VPE-536
Saddle - Merida Comp DR
Seat Post - Merida Comp DR; aluminium; 27.2mm diameter; in-line; 250mm length

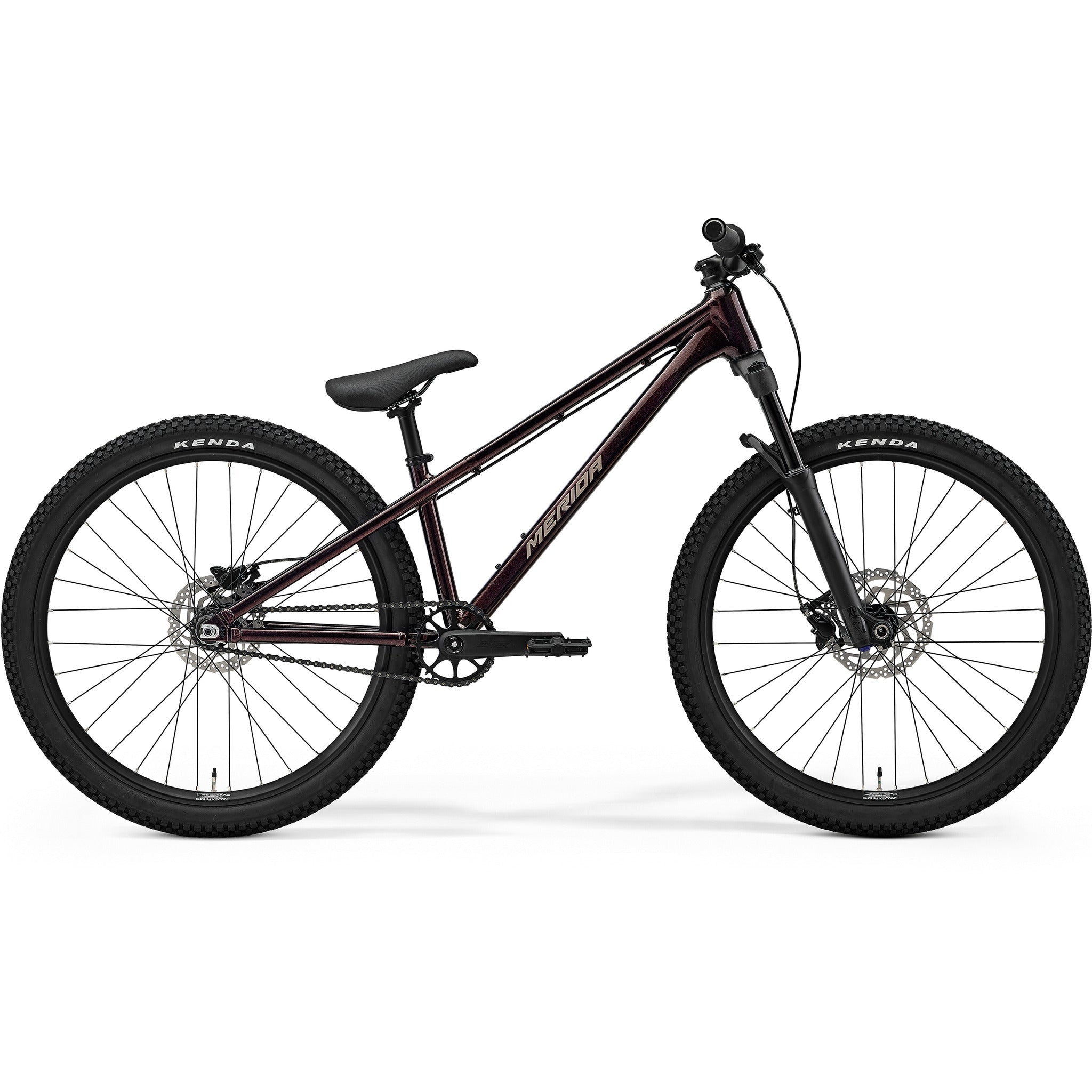

Dirt 500 2027
