Description

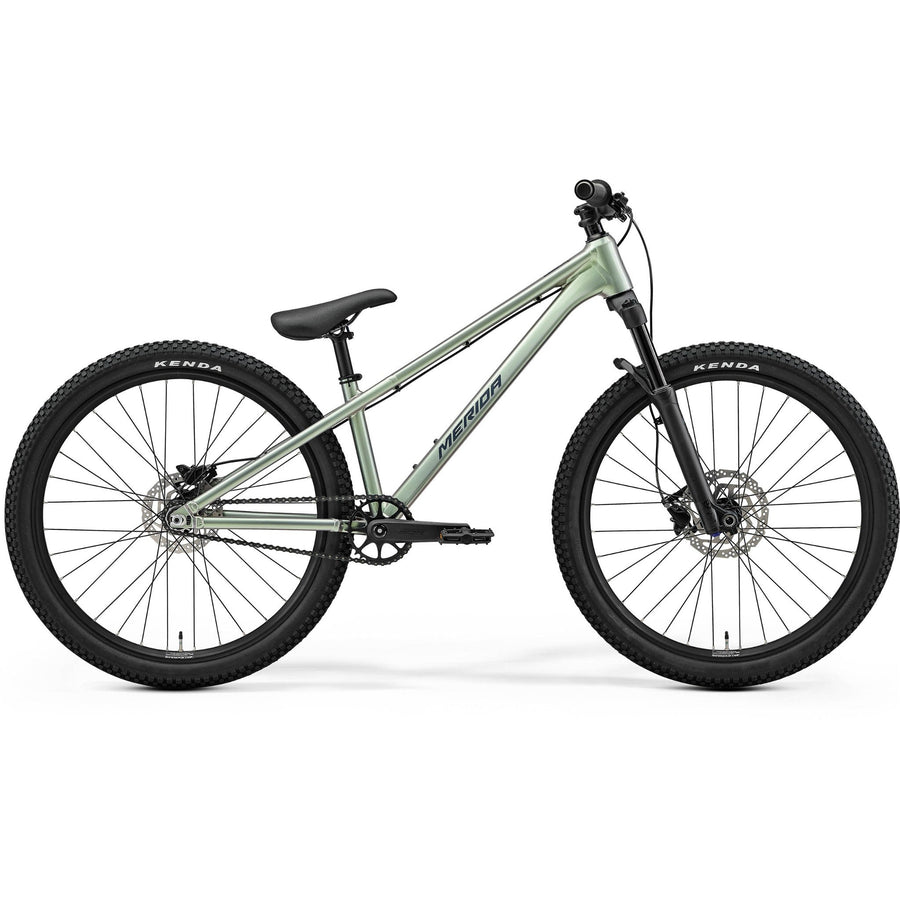

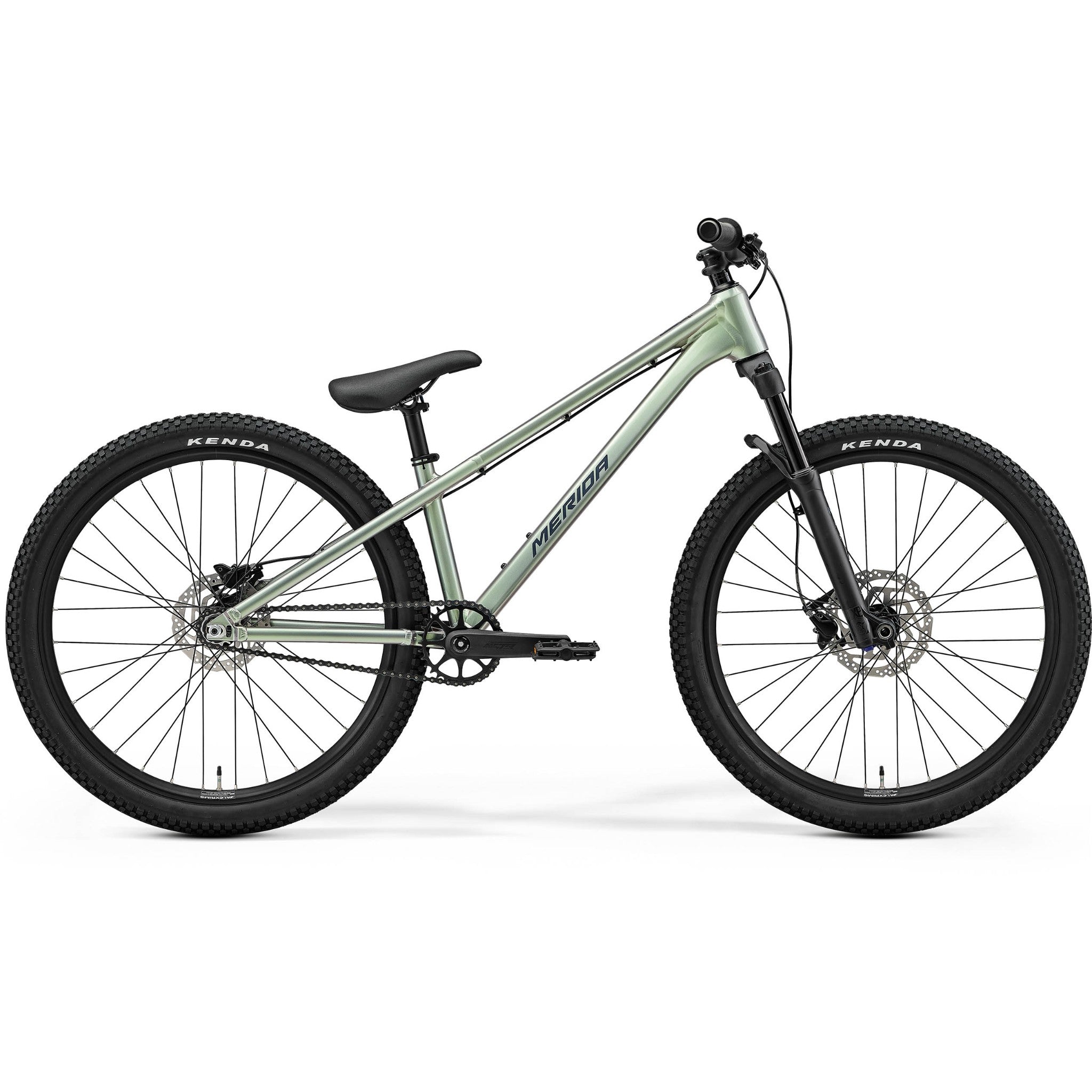

Merida's new dirt jump and pump track bike won't break the budget - or break, full stop. Built tough from 6061 aluminium, it's got 26" wheels and a singlespeed setup for bombproof reliability.
Designed to deliver the most fun for your money, a Manitou Circus 100mm fork will save your hands when you case it, while tough Alex rims and fast Kenda tyres are ready to rip pump track berms.
Specifications
-
Discipline Dirt Jump
-
Material Aluminium
-
Front Travel 100mm
-
Rear Travel N/A
-
Wheel Size 26"
-
Warranty Lifetime
Frame - TFS - aluminum; 135 x10mm axle standard; BSA BB Standard, Max tyre size 26 x 2.5"
Fork - Manitou Circus Expert, Air; 100 mm travel; 110x20mm; 41mm fork offset; tapered
Headset - FSA NO.57SC
Stem - Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
Handlebar - Merida Comp TR; material: aluminium; 780mm wide; 20mm rise
Grip - Merida Comp DR
Brake Type - Hydraulic Disc
Front Brake - Shimano MT200; 2 piston with Shimano RT26; 180mm
Rear Brake - Shimano MT200; 2 piston with Shimano RT26; 160mm
Front Tyre - Kenda K-Rad K905 ; 26x2.3"; wired
Rear Tyre - Kenda K-Rad K905 ; 26x2.3"; wired
Wheel Size - 26"
Rim - Alexrims MD30; 30mm inner rim width; material: aluminum; 32H; tubeless ready
Spokes - Black stainless
Front Hub - Novatec DH61SB-HL; 110x20mm; 32 Spoke; 6 bolt
Rear Hub - Novatec D256SBT; 135x10 M10mm; 32 Spoke; 6 bolt; 14t
Speeds - 1
Chain - KMC Z1 narrow
Cassette - 14 teeth single speed
Chainset - Merida Expert TR II; 32 tooth chainset; Crank length: 160mm
Bottom Bracket - Samox BSA 24mm EB2401
Pedals - VP VPE-536
Saddle - Merida Comp DR
Seat Post - Merida Comp DR; material: aluminium; 27.2mm diameter; in-line; 250mm length
