Built around the same TFS IV aluminium frame, air fork and CUES drivetrain as the standard Crossway 300, this version is sized XS to M for shorter riders.
The SR Suntour NVX32 air fork is the part worth knowing about: 63mm of travel, a lockout for smooth surfaces, and air pressure you can tune to your own weight, which tends to matter more on lighter frames and lighter riders. Behind it sit 700x45C Maxxis Metropass tyres on tubeless ready 25mm rims, a 20-speed Shimano CUES drivetrain with a 46-30 chainset and 11-39 cassette, and Shimano MT200 hydraulic disc brakes. Rack, mudguard and kickstand mounts are all there.
Features
- Sized XS to M on the standard Crossway 300 frame and build
- SR Suntour NVX32 air fork with 63mm of travel and a lockout, tunable to rider weight
- 20-speed Shimano CUES drivetrain: U4010 46-30 chainset with an 11-39 ten-speed cassette
- 700x45C Maxxis Metropass tyres with a reflective stripe
- Tubeless ready Merida Comp CC II rims, 25mm inner width
- Shimano MT200 two-piston hydraulic disc brakes
- Rack, mudguard and kickstand mounts, with clearance for tyres up to 700x50c
Specifications
Discipline Hybrid/Commute
Material Aluminium
Front Travel 63mm
Wheel Size 700c
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour NVX32; Air; 63mm travel; Lockout; 29x2.25 max. wheel size
Headset - Merida M2346 Neck
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 17° degree rise
Handlebar - Merida Comp CC; aluminium; 680mm wide; 15mm rise
Grips - Merida Comp TK
Brake Type - Hydraulic Disc
Brakes - Front: Shimano MT200; 2 piston Rear: Shimano MT200; 2 piston
Wheels - Rims: Merida Comp CC II; 25mm inner rim width; aluminium; tubeless ready Spokes: Black stainless Front Hub: Shimano QC300; for SR Suntour 5TA; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Maxxis Metropass; 700x45C; wire; reflective stripe Rear: Maxxis Metropass; 700x45C; wire; reflective stripe
Wheel Size - 700c
Speeds - 20
Shifters - Front: Shimano CUES U6000 Rear: Shimano CUES U6000
Front Derailleur - Shimano CUES U6010
Rear Derailleur - Shimano CUES U6020; 10 speed
Chainset - Shimano CUES U4010; 46-30 teeth; Crank Length: (XXS-S) - 170mm, (M-XL) - 175mm
Bottom Bracket - Shimano MT501
Chain - KMC xGlide
Cassette - Shimano LG300; 11-39 teeth; 10 speed
Pedals - VP VPE-889P
Saddle - Merida Comp TK
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; 5mm layback

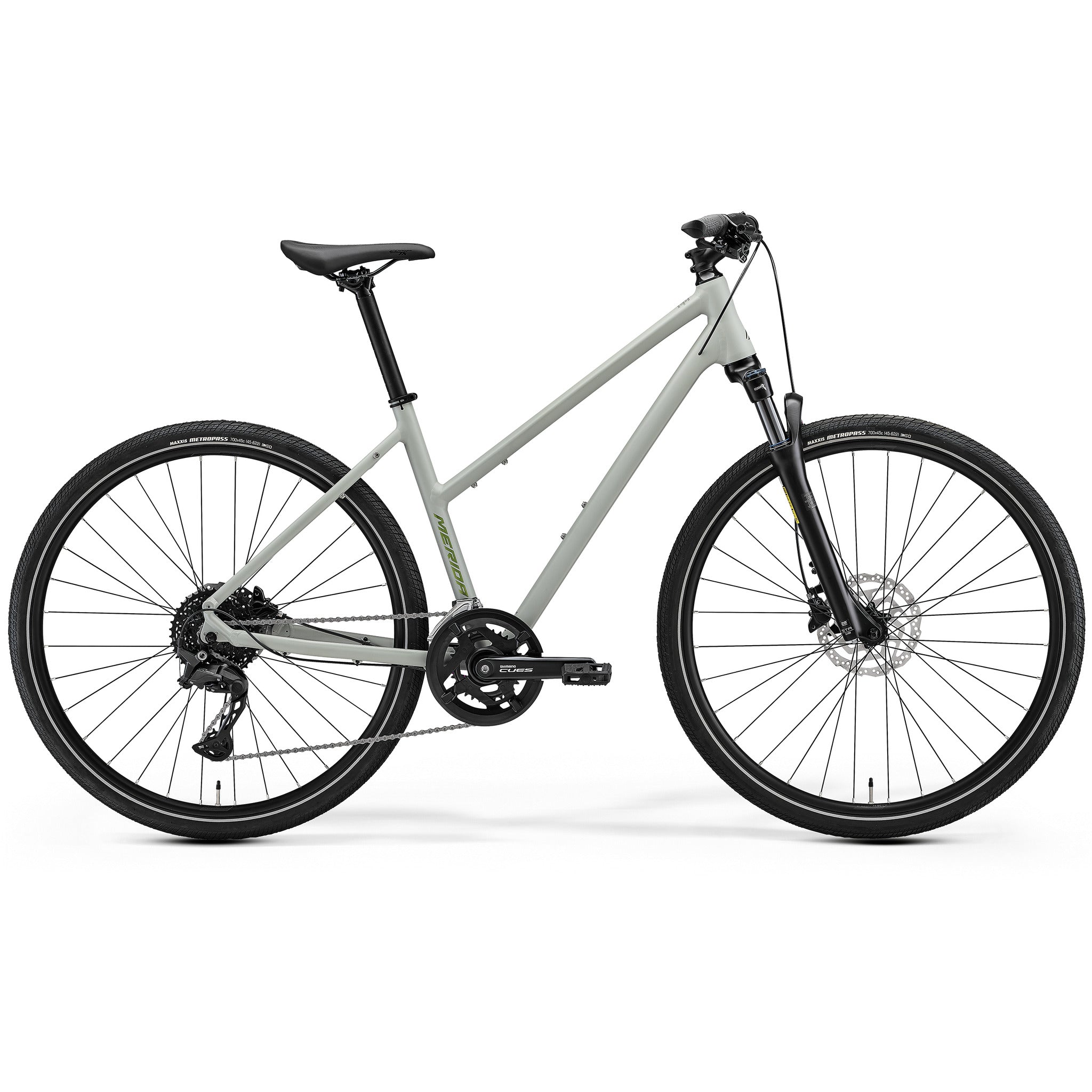

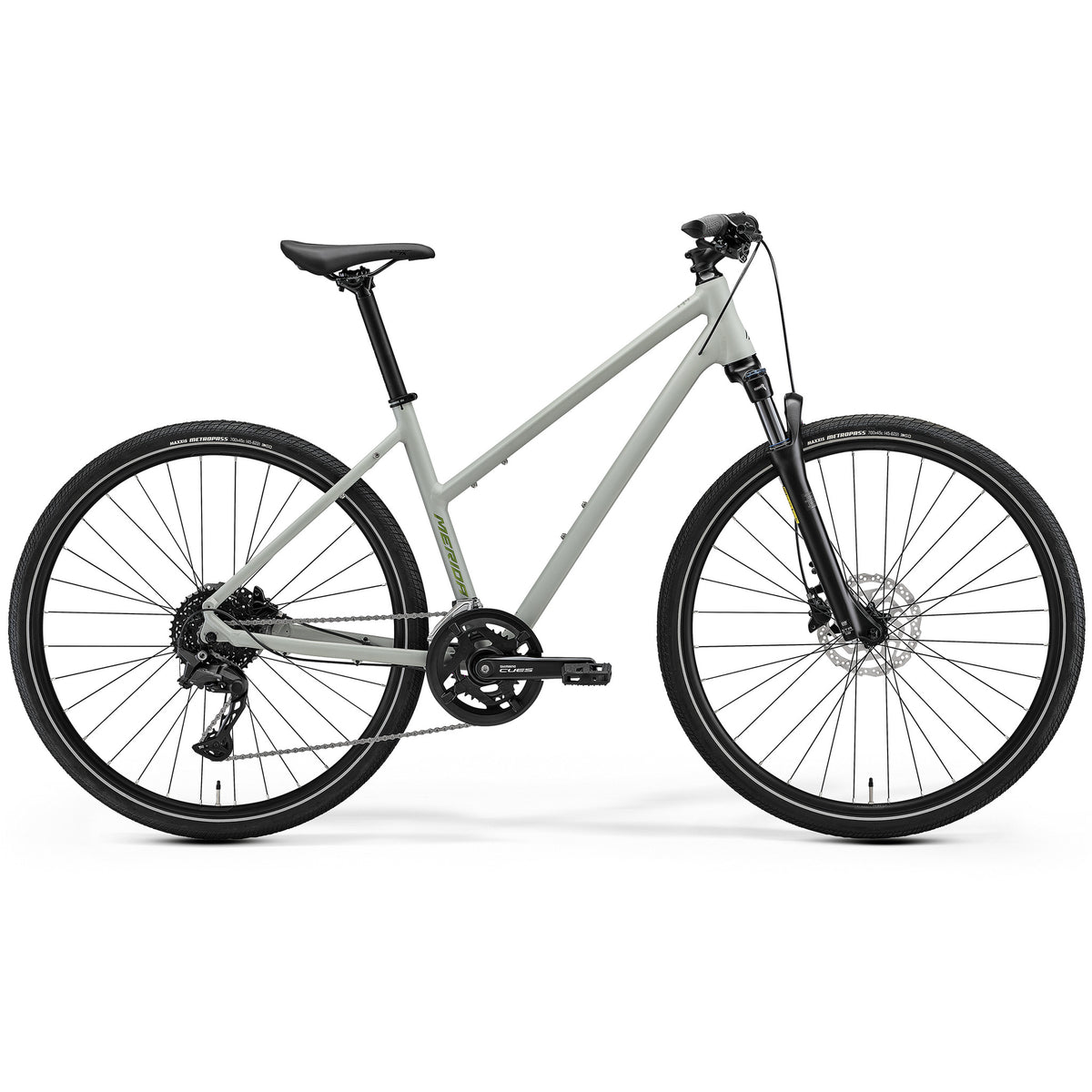

Crossway 300 Women's 2027
