An air-sprung fork is what separates the Crossway 300 from the models below it. The SR Suntour NVX32 gives 63mm of travel, can be set up to suit your weight rather than an average one, and has a lockout for when you want a firm front end on smooth road. Paired with 700x45C Maxxis Metropass tyres on tubeless ready 25mm rims, it makes for a hybrid that is genuinely happy on Sustrans trails and towpaths as well as the commute.
Gearing steps up too: 20-speed Shimano CUES with a 46-30 U4010 chainset and an 11-39 ten-speed cassette, which gives you a taller top gear for open roads without giving up the low end. Shimano MT200 hydraulic discs do the stopping, and the TFS IV aluminium frame keeps the practical stuff - internal routing, tyre clearance to 700x50c and mounts for a rack, mudguards and a kickstand.
Features
- SR Suntour NVX32 air fork with 63mm of travel and a lockout
- 20-speed Shimano CUES drivetrain: U4010 46-30 chainset with an 11-39 ten-speed cassette
- 700x45C Maxxis Metropass tyres with a reflective stripe
- Tubeless ready Merida Comp CC II rims, 25mm inner width, on Shimano Centerlock hubs
- Shimano MT200 two-piston hydraulic disc brakes
- TFS IV double butted technoformed 6061 aluminium frame with internal cable routing and up to 700x50c tyre clearance
- Rack, mudguard and kickstand mounts, 680mm bar with 15mm rise, Merida Comp TK saddle and grips
Specifications
Discipline Hybrid/Commute
Material Aluminium
Front Travel 63mm
Wheel Size 700c
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour NVX32; Air; 63mm travel; Lockout; 29x2.25 max. wheel size
Headset - Merida M2346 Neck
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 17° degree rise
Handlebar - Merida Comp CC; aluminium; 680mm wide; 15mm rise
Grips - Merida Comp TK
Brake Type - Hydraulic Disc
Brakes - Front: Shimano MT200; 2 piston Rear: Shimano MT200; 2 piston
Wheels - Rims: Merida Comp CC II; 25mm inner rim width; aluminium; tubeless ready Spokes: Black stainless Front Hub: Shimano QC300; for SR Suntour 5TA; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Maxxis Metropass; 700x45C; wire; reflective stripe Rear: Maxxis Metropass; 700x45C; wire; reflective stripe
Wheel Size - 700c
Speeds - 20
Shifters - Front: Shimano CUES U6000 Rear: Shimano CUES U6000
Front Derailleur - Shimano CUES U6010
Rear Derailleur - Shimano CUES U6020; 10 speed
Chainset - Shimano CUES U4010; 46-30 teeth; Crank Length: (XXS-S) - 170mm, (M-XL) - 175mm
Bottom Bracket - Shimano MT501
Chain - KMC xGlide
Cassette - Shimano LG300; 11-39 teeth; 10 speed
Pedals - VP VPE-889P
Saddle - Merida Comp TK
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; 5mm layback

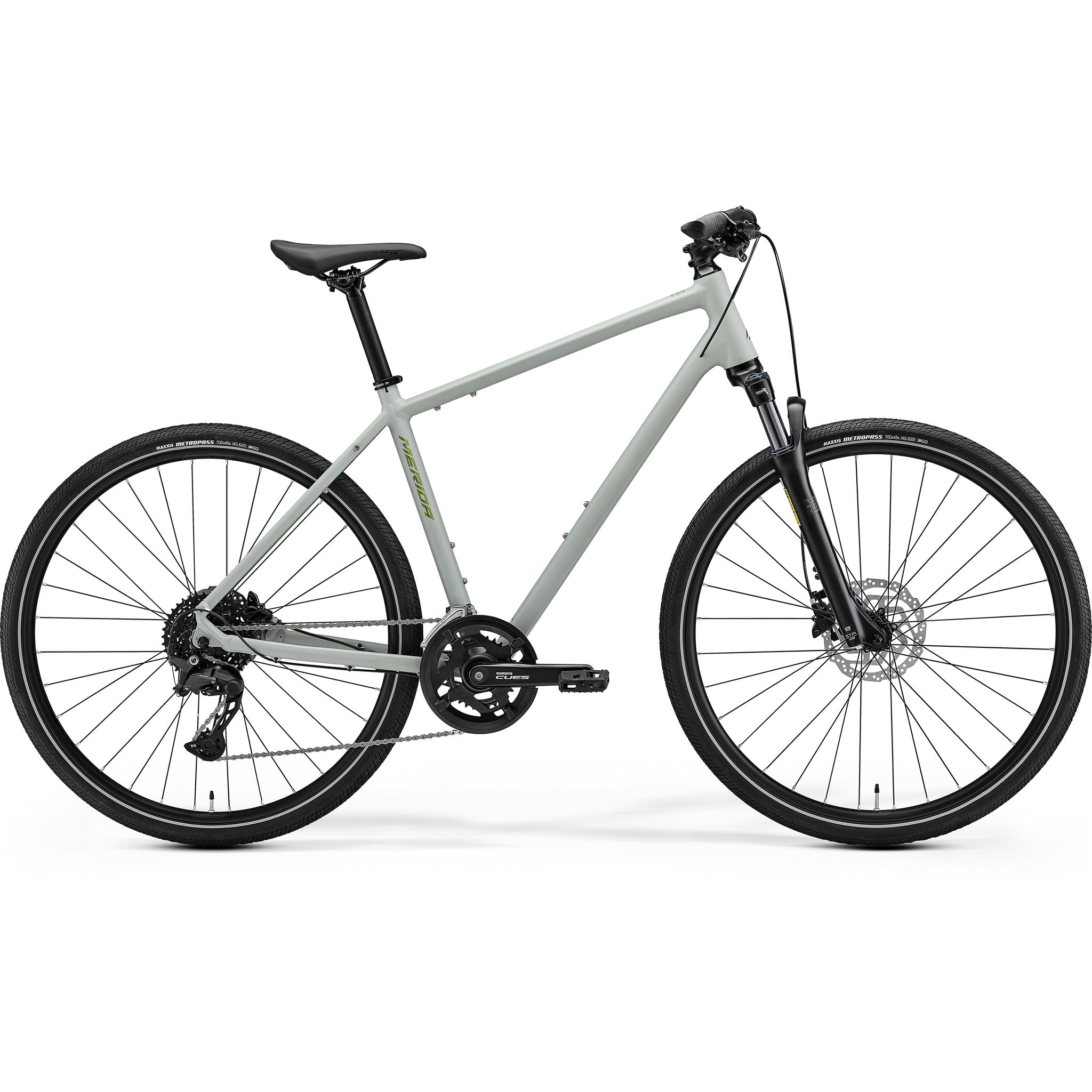

Crossway 300 2027
Order within [time] for delivery by [date]
90 Day Returns
An air-sprung fork is what separates the Crossway 300 from the models below it. The SR Suntour NVX32 gives 63mm of travel, can be set up to suit your weight rather than an average one, and has a lockout for when you want a firm front end on smooth road. Paired with 700x45C Maxxis Metropass tyres on tubeless ready 25mm rims, it makes for a hybrid that is genuinely happy on Sustrans trails and towpaths as well as the commute.
Gearing steps up too: 20-speed Shimano CUES with a 46-30 U4010 chainset and an 11-39 ten-speed cassette, which gives you a taller top gear for open roads without giving up the low end. Shimano MT200 hydraulic discs do the stopping, and the TFS IV aluminium frame keeps the practical stuff - internal routing, tyre clearance to 700x50c and mounts for a rack, mudguards and a kickstand.
Features
- SR Suntour NVX32 air fork with 63mm of travel and a lockout
- 20-speed Shimano CUES drivetrain: U4010 46-30 chainset with an 11-39 ten-speed cassette
- 700x45C Maxxis Metropass tyres with a reflective stripe
- Tubeless ready Merida Comp CC II rims, 25mm inner width, on Shimano Centerlock hubs
- Shimano MT200 two-piston hydraulic disc brakes
- TFS IV double butted technoformed 6061 aluminium frame with internal cable routing and up to 700x50c tyre clearance
- Rack, mudguard and kickstand mounts, 680mm bar with 15mm rise, Merida Comp TK saddle and grips
Specifications
Discipline Hybrid/Commute
Material Aluminium
Front Travel 63mm
Wheel Size 700c
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour NVX32; Air; 63mm travel; Lockout; 29x2.25 max. wheel size
Headset - Merida M2346 Neck
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 17° degree rise
Handlebar - Merida Comp CC; aluminium; 680mm wide; 15mm rise
Grips - Merida Comp TK
Brake Type - Hydraulic Disc
Brakes - Front: Shimano MT200; 2 piston Rear: Shimano MT200; 2 piston
Wheels - Rims: Merida Comp CC II; 25mm inner rim width; aluminium; tubeless ready Spokes: Black stainless Front Hub: Shimano QC300; for SR Suntour 5TA; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Maxxis Metropass; 700x45C; wire; reflective stripe Rear: Maxxis Metropass; 700x45C; wire; reflective stripe
Wheel Size - 700c
Speeds - 20
Shifters - Front: Shimano CUES U6000 Rear: Shimano CUES U6000
Front Derailleur - Shimano CUES U6010
Rear Derailleur - Shimano CUES U6020; 10 speed
Chainset - Shimano CUES U4010; 46-30 teeth; Crank Length: (XXS-S) - 170mm, (M-XL) - 175mm
Bottom Bracket - Shimano MT501
Chain - KMC xGlide
Cassette - Shimano LG300; 11-39 teeth; 10 speed
Pedals - VP VPE-889P
Saddle - Merida Comp TK
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; 5mm layback
