Description
The Crossway family are versatile bikes suitable for riding for fitness, commuting and leisurely rides in the countryside. Their upright riding position is designed to provide a comfortable place to take in the surroundings.
The frame has mounts for racks mudguards and a kickstand and EQ kits are available separately.
Specifications
Discipline
Material
Front Travel
Rear Travel
Wheel Size 700c
Warranty
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour NEX DS; Coil; 63 mm travel; 700x50C max. tyre size
Headset - Merida M2345
Stem - Merida Comp CC; material: aluminium; 31.8 mm diameter; 17 degree rise
Handlebar - Merida Comp CC; material: aluminium; 680mm wide; 10mm rise
Grip - Merida Comp TK
Brake Type - Hydraulic Disc
Front Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Front Tyre - Kenda Ambra K1278; 700x45C; wired
Rear Tyre - Kenda Ambra K1278; 700x45C; wired
Wheel Size - 700c
Rim - Merida Comp TK; 17mm inner rim width; material: aluminium
Spokes - Black steel
Front Hub - Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub - Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Speeds - 8
Rear Derailleur - Shimano Essa RD-U2000-8; GS
Shift Levers - Rear: Shimano Essa SL-315-8R
Chain - KMC Z8
Cassette - Shimano CS-HG400-8; 11-45 teeth; 8 speed
Chainset - Shimano Essa FC-U2001; 40 tooth chainset; material: aluminium; Crank length: 170mm
Bottom Bracket - Shimano UN101 LL123
Pedals - VP VPE-891
Saddle - Merida Comp TK
Seat Post - Merida Comp CC; material: aluminium; 30.9mm diameter; in-line

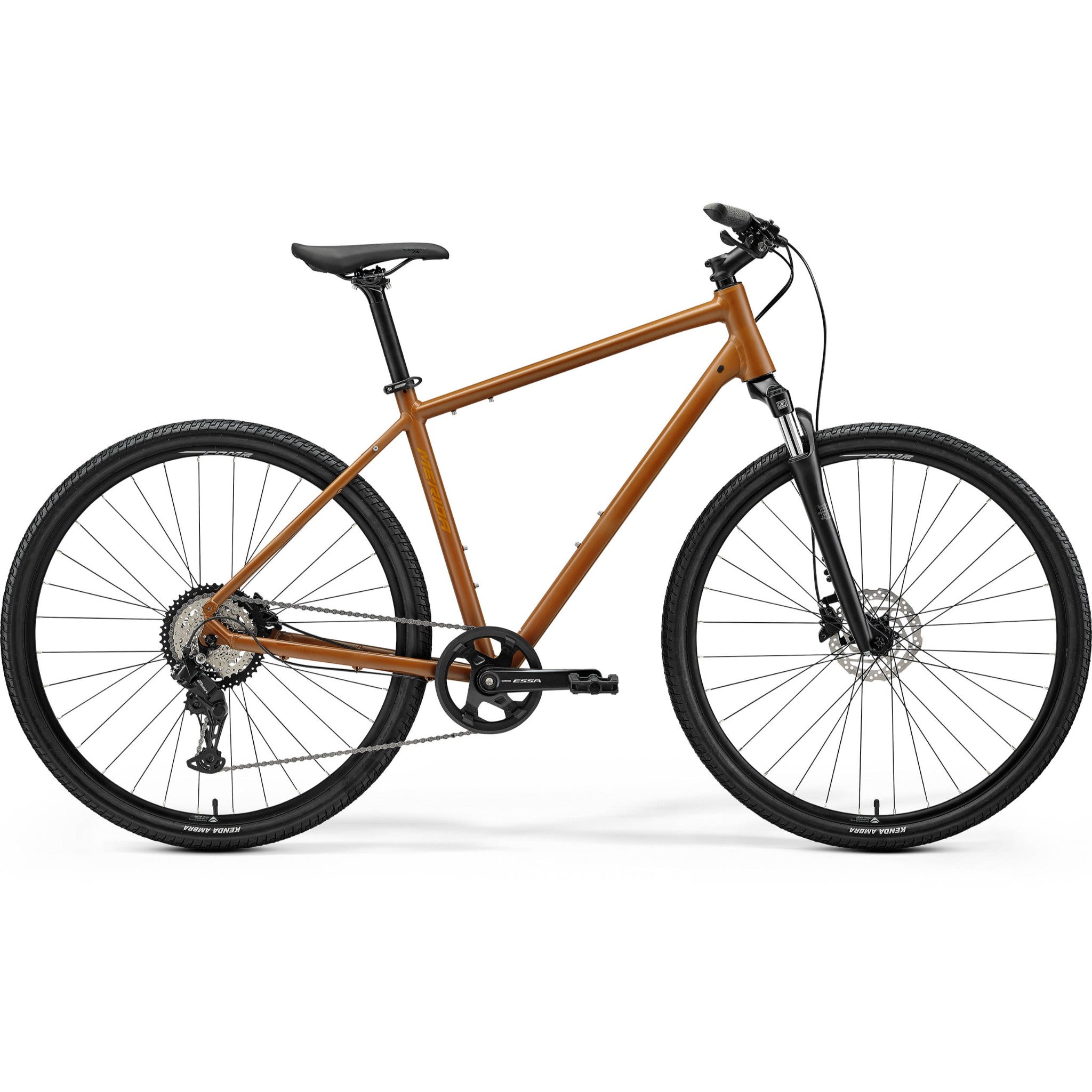

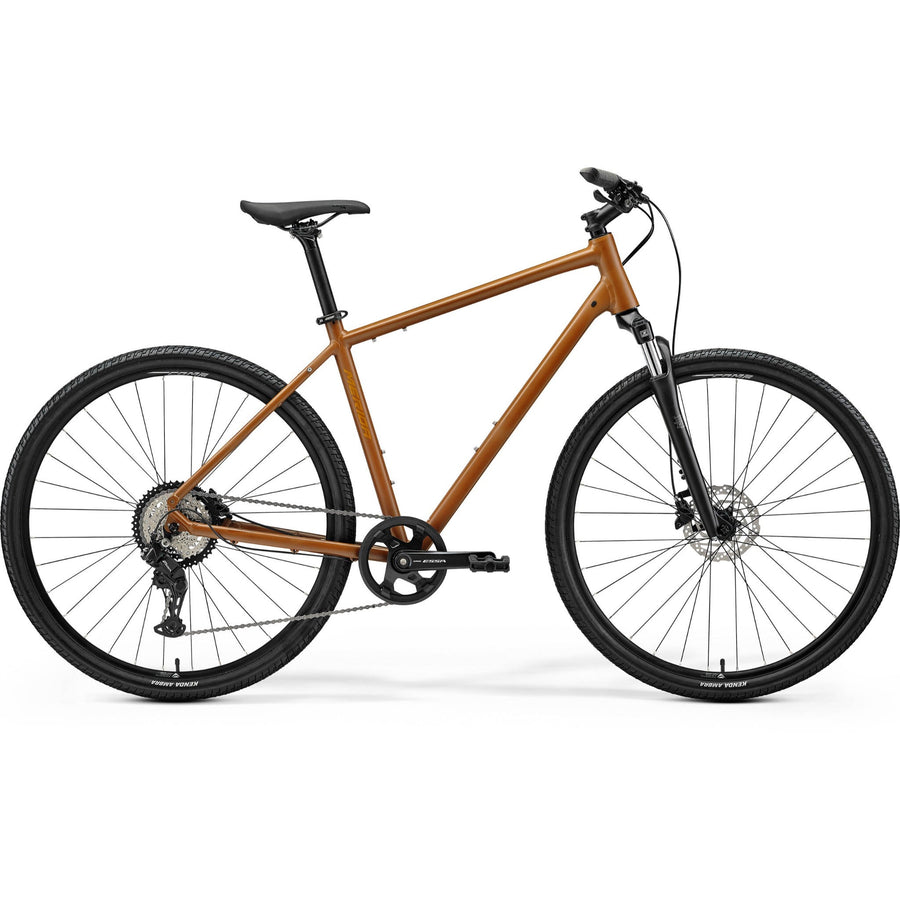

Merida Crossway 20 2026
The Crossway family are versatile bikes suitable for riding for fitness, commuting and leisurely rides in the countryside. Their upright riding position is designed to provide a comfortable place to...
Order within [time] for delivery by [date]
90 Day Returns
Description
The Crossway family are versatile bikes suitable for riding for fitness, commuting and leisurely rides in the countryside. Their upright riding position is designed to provide a comfortable place to take in the surroundings.
The frame has mounts for racks mudguards and a kickstand and EQ kits are available separately.
Specifications
Discipline
Material
Front Travel
Rear Travel
Wheel Size 700c
Warranty
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour NEX DS; Coil; 63 mm travel; 700x50C max. tyre size
Headset - Merida M2345
Stem - Merida Comp CC; material: aluminium; 31.8 mm diameter; 17 degree rise
Handlebar - Merida Comp CC; material: aluminium; 680mm wide; 10mm rise
Grip - Merida Comp TK
Brake Type - Hydraulic Disc
Front Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Front Tyre - Kenda Ambra K1278; 700x45C; wired
Rear Tyre - Kenda Ambra K1278; 700x45C; wired
Wheel Size - 700c
Rim - Merida Comp TK; 17mm inner rim width; material: aluminium
Spokes - Black steel
Front Hub - Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub - Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Speeds - 8
Rear Derailleur - Shimano Essa RD-U2000-8; GS
Shift Levers - Rear: Shimano Essa SL-315-8R
Chain - KMC Z8
Cassette - Shimano CS-HG400-8; 11-45 teeth; 8 speed
Chainset - Shimano Essa FC-U2001; 40 tooth chainset; material: aluminium; Crank length: 170mm
Bottom Bracket - Shimano UN101 LL123
Pedals - VP VPE-891
Saddle - Merida Comp TK
Seat Post - Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
