Offered in XS, S and M, this is the Crossway 100 in a smaller size run - the frame, wheels, fork and drivetrain are unchanged from the standard model.
You still get the tubeless ready Merida Comp CC II rims with their 25mm inner width, 700x45C Kenda Ambra tyres with a reflective stripe, and an 18-speed Shimano CUES drivetrain that pairs a 40-26 chainset with an 11-36 cassette for a wide, useful range. Shimano MT200 hydraulic disc brakes are light at the lever, the 63mm SR Suntour NVX32 5TA fork smooths out the worst of the tarmac, and the aluminium frame carries mounts for a rack, mudguards and a kickstand.
Features
- Sized XS to M, sharing the standard Crossway 100 frame and build
- 18-speed Shimano CUES drivetrain: U4000 40-26 chainset with an 11-36 nine-speed cassette
- Tubeless ready Merida Comp CC II rims, 25mm inner width
- 700x45C Kenda Ambra tyres with a reflective stripe
- Shimano MT200 two-piston hydraulic disc brakes
- SR Suntour NVX32 5TA coil fork with 63mm of travel
- Rack, mudguard and kickstand mounts, plus clearance for tyres up to 700x50c
Specifications
Discipline Hybrid/Commute
Material Aluminium
Front Travel 63mm
Wheel Size 700c
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour NVX32 5TA; Coil; 63mm travel; 29x2.25 max. wheel size
Headset - Merida M2346 Neck
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 17° degree rise
Handlebar - Merida Comp CC; aluminium; 680mm wide; 15mm rise
Grips - Merida Comp TK
Brake Type - Hydraulic Disc
Brakes - Front: Shimano MT200; 2 piston Rear: Shimano MT200; 2 piston
Wheels - Rims: Merida Comp CC II; 25mm inner rim width; aluminium; tubeless ready Spokes: Black stainless Front Hub: Shimano QC300; for SR Suntour 5TA; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Kenda Ambra K1278; 700x45C; wire; reflective stripe Rear: Kenda Ambra K1278; 700x45C; wire; reflective stripe
Wheel Size - 700c
Speeds - 18
Shifters - Front: Shimano CUES U4000 Rear: Shimano CUES U4000
Front Derailleur - Shimano CUES U4000
Rear Derailleur - Shimano CUES U3020; 9 speed
Chainset - Shimano CUES U4000; 40-26 teeth; Crank Length: (XXS-S) - 170mm, (M-XL) - 175mm
Bottom Bracket - Shimano BB-UN101; 73mm
Chain - KMC xGlide
Cassette - Shimano LG300; 11-36 teeth; 9 speed
Pedals - VP VPE-889P
Saddle - Merida Comp TK
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; 5mm layback

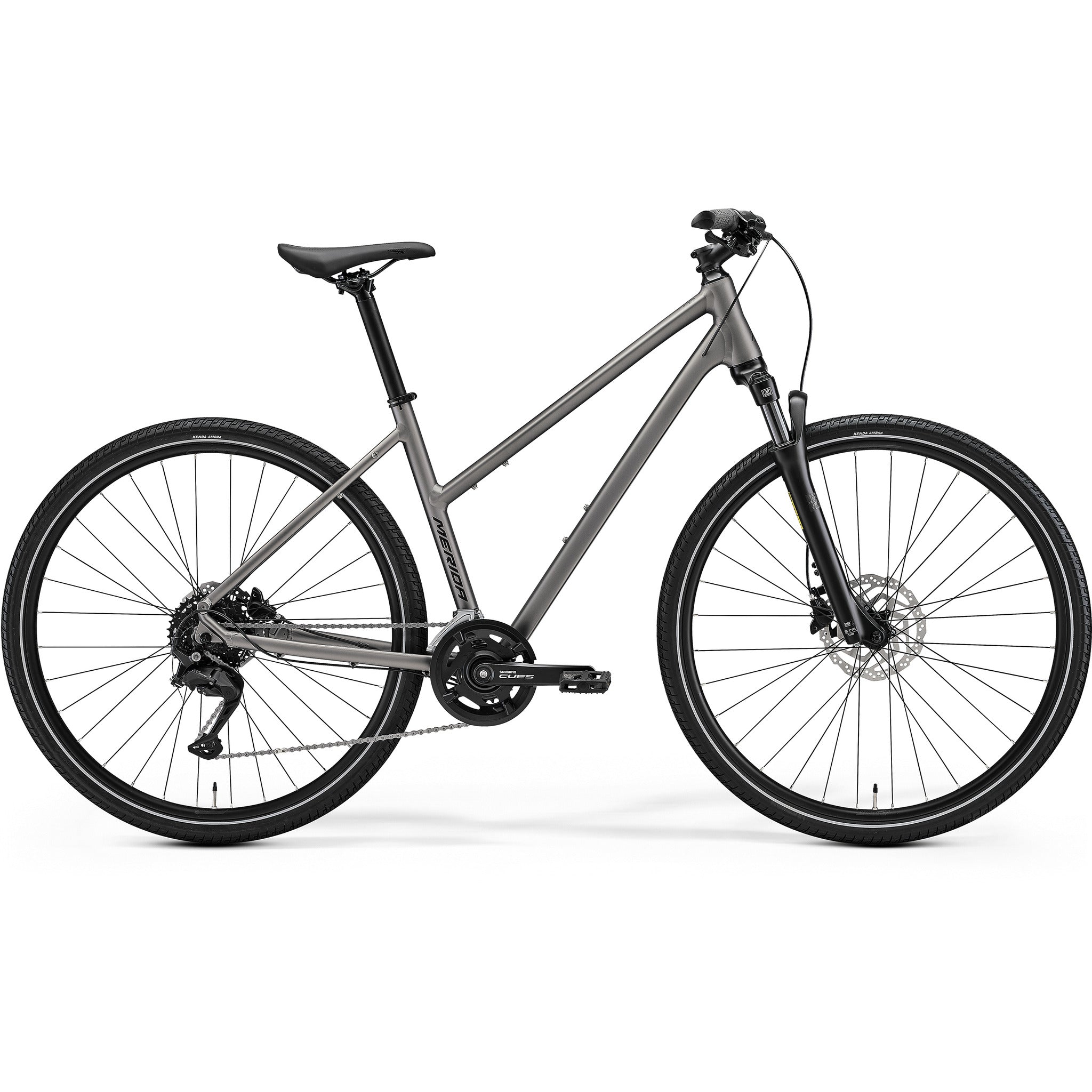

Crossway 100 Women's 2027
