Step up to the Crossway 100 and the wheels are the headline. Merida Comp CC II rims are 25mm wide internally and tubeless ready, which supports the 700x45C Kenda Ambra tyres better and leaves the door open to going tubeless later. Those tyres also carry a reflective stripe, which is a small thing that makes a real difference on dark lanes.
The drivetrain is Shimano CUES: an 18-speed set-up pairing a 40-26 U4000 chainset with an 11-36 nine-speed cassette, so the gear range covers loaded hills and flat cruising without fuss. Shimano MT200 hydraulic discs handle the braking, a 63mm SR Suntour NVX32 5TA coil fork takes the edge off rough ground, and the TFS IV aluminium frame keeps the rack, mudguard and kickstand mounts along with clearance for tyres up to 700x50c.
Features
- 18-speed Shimano CUES drivetrain: U4000 40-26 chainset with an 11-36 nine-speed cassette
- Tubeless ready Merida Comp CC II rims with a 25mm inner width
- 700x45C Kenda Ambra tyres with a reflective stripe for better night-time visibility
- Shimano MT200 two-piston hydraulic disc brakes
- SR Suntour NVX32 5TA coil fork with 63mm of travel
- TFS IV double butted technoformed 6061 aluminium frame, internal routing, up to 700x50c tyre clearance
- Rack, mudguard and kickstand mounts, 680mm bar with 15mm rise and a 5mm layback seatpost
Specifications
Discipline Hybrid/Commute
Material Aluminium
Front Travel 63mm
Wheel Size 700c
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour NVX32 5TA; Coil; 63mm travel; 29x2.25 max. wheel size
Headset - Merida M2346 Neck
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 17° degree rise
Handlebar - Merida Comp CC; aluminium; 680mm wide; 15mm rise
Grips - Merida Comp TK
Brake Type - Hydraulic Disc
Brakes - Front: Shimano MT200; 2 piston Rear: Shimano MT200; 2 piston
Wheels - Rims: Merida Comp CC II; 25mm inner rim width; aluminium; tubeless ready Spokes: Black stainless Front Hub: Shimano QC300; for SR Suntour 5TA; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Kenda Ambra K1278; 700x45C; wire; reflective stripe Rear: Kenda Ambra K1278; 700x45C; wire; reflective stripe
Wheel Size - 700c
Speeds - 18
Shifters - Front: Shimano CUES U4000 Rear: Shimano CUES U4000
Front Derailleur - Shimano CUES U4000
Rear Derailleur - Shimano CUES U3020; 9 speed
Chainset - Shimano CUES U4000; 40-26 teeth; Crank Length: (XXS-S) - 170mm, (M-XL) - 175mm
Bottom Bracket - Shimano BB-UN101; 73mm
Chain - KMC xGlide
Cassette - Shimano LG300; 11-36 teeth; 9 speed
Pedals - VP VPE-889P
Saddle - Merida Comp TK
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; 5mm layback

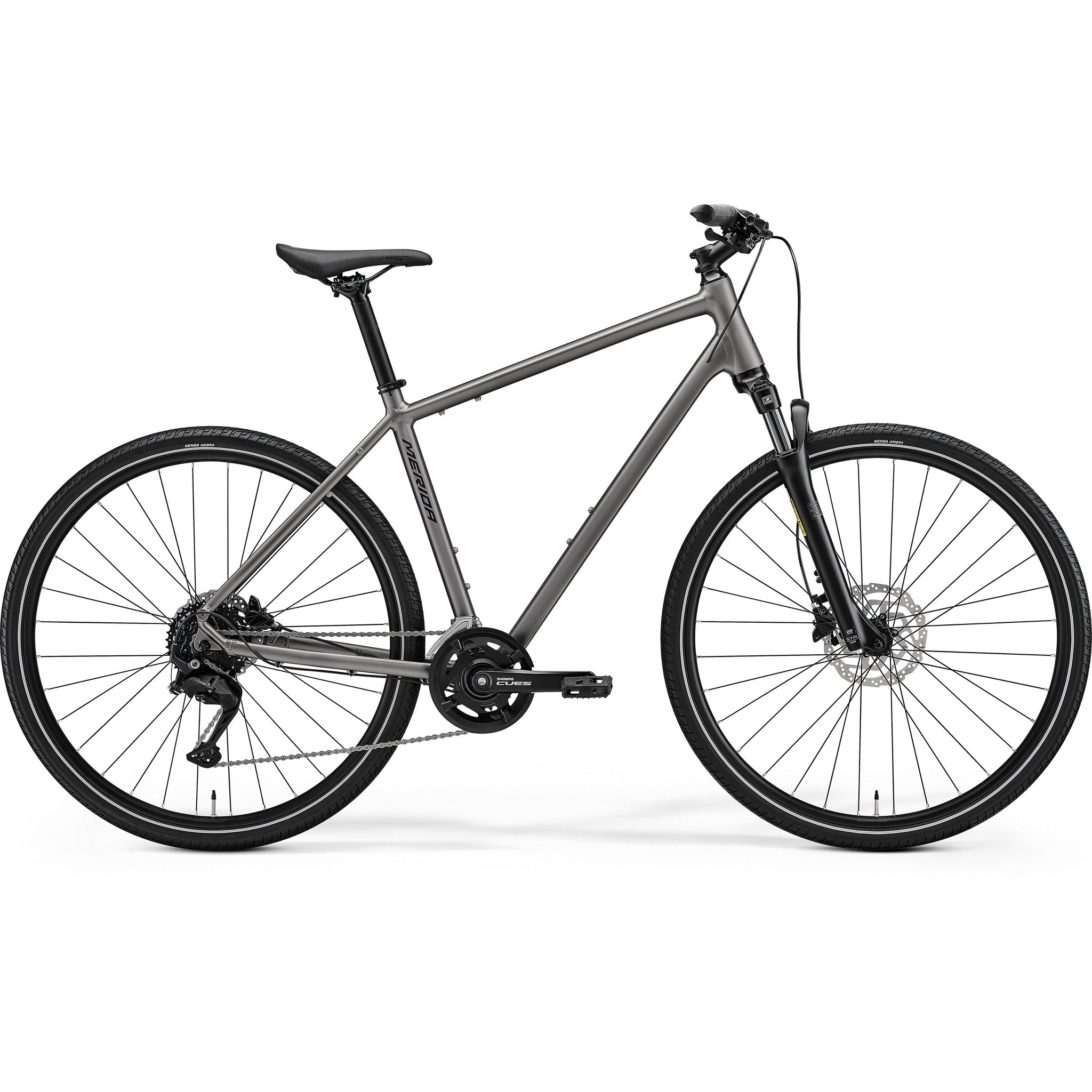

Crossway 100 2027
Order within [time] for delivery by [date]
90 Day Returns
Step up to the Crossway 100 and the wheels are the headline. Merida Comp CC II rims are 25mm wide internally and tubeless ready, which supports the 700x45C Kenda Ambra tyres better and leaves the door open to going tubeless later. Those tyres also carry a reflective stripe, which is a small thing that makes a real difference on dark lanes.
The drivetrain is Shimano CUES: an 18-speed set-up pairing a 40-26 U4000 chainset with an 11-36 nine-speed cassette, so the gear range covers loaded hills and flat cruising without fuss. Shimano MT200 hydraulic discs handle the braking, a 63mm SR Suntour NVX32 5TA coil fork takes the edge off rough ground, and the TFS IV aluminium frame keeps the rack, mudguard and kickstand mounts along with clearance for tyres up to 700x50c.
Features
- 18-speed Shimano CUES drivetrain: U4000 40-26 chainset with an 11-36 nine-speed cassette
- Tubeless ready Merida Comp CC II rims with a 25mm inner width
- 700x45C Kenda Ambra tyres with a reflective stripe for better night-time visibility
- Shimano MT200 two-piston hydraulic disc brakes
- SR Suntour NVX32 5TA coil fork with 63mm of travel
- TFS IV double butted technoformed 6061 aluminium frame, internal routing, up to 700x50c tyre clearance
- Rack, mudguard and kickstand mounts, 680mm bar with 15mm rise and a 5mm layback seatpost
Specifications
Discipline Hybrid/Commute
Material Aluminium
Front Travel 63mm
Wheel Size 700c
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour NVX32 5TA; Coil; 63mm travel; 29x2.25 max. wheel size
Headset - Merida M2346 Neck
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 17° degree rise
Handlebar - Merida Comp CC; aluminium; 680mm wide; 15mm rise
Grips - Merida Comp TK
Brake Type - Hydraulic Disc
Brakes - Front: Shimano MT200; 2 piston Rear: Shimano MT200; 2 piston
Wheels - Rims: Merida Comp CC II; 25mm inner rim width; aluminium; tubeless ready Spokes: Black stainless Front Hub: Shimano QC300; for SR Suntour 5TA; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Kenda Ambra K1278; 700x45C; wire; reflective stripe Rear: Kenda Ambra K1278; 700x45C; wire; reflective stripe
Wheel Size - 700c
Speeds - 18
Shifters - Front: Shimano CUES U4000 Rear: Shimano CUES U4000
Front Derailleur - Shimano CUES U4000
Rear Derailleur - Shimano CUES U3020; 9 speed
Chainset - Shimano CUES U4000; 40-26 teeth; Crank Length: (XXS-S) - 170mm, (M-XL) - 175mm
Bottom Bracket - Shimano BB-UN101; 73mm
Chain - KMC xGlide
Cassette - Shimano LG300; 11-36 teeth; 9 speed
Pedals - VP VPE-889P
Saddle - Merida Comp TK
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; 5mm layback
