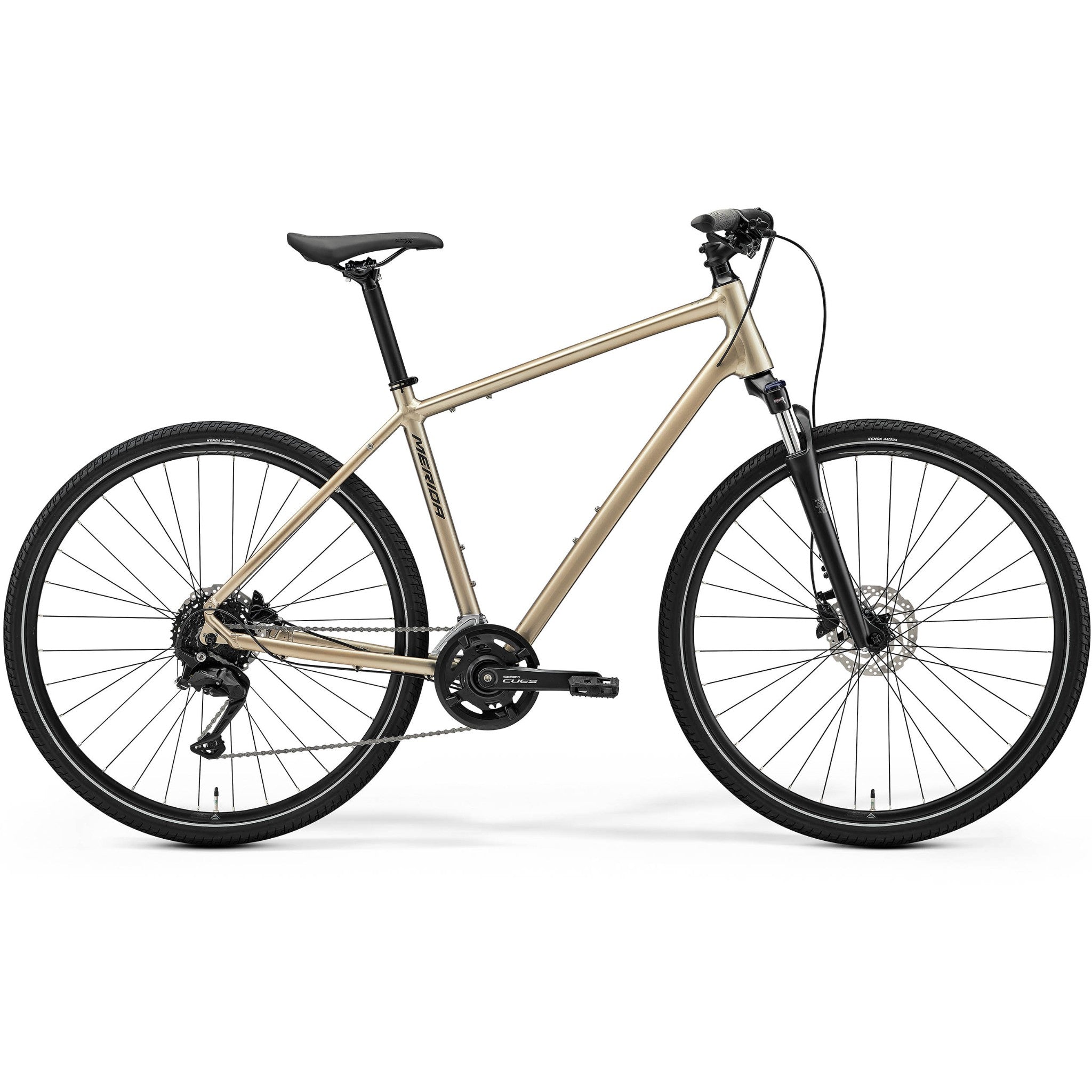

  • Merida Crossway 100 2026 High Cream / S

The Crossway 100 is a comfortable, versatile hybrid that suits leisure rides and commuting equally well, with a few smart upgrades over the entry-level models.

Its 63mm SR Suntour coil fork now has a lockout, so you can firm it up on smooth tarmac and let it soak up bumps on rougher roads and towpaths. Shimano MT200 hydraulic disc brakes give lighter, more powerful braking than cable discs, and the Shimano Cues 2x9 drivetrain offers a wide, easy-to-use spread of gears. The Kenda 45mm tyres have reflective sidewall stripes for extra visibility after dark.

The lightweight aluminium frame has internal cable routing and mounts for a rack, mudguards and kickstand, so the Crossway can be set up for whatever your riding involves.

Features

  • TFS IV aluminium frame with internal cable routing
  • 63mm SR Suntour NEX coil fork with lockout
  • Shimano MT200 hydraulic disc brakes with 160mm rotors
  • Shimano Cues 2x9 drivetrain with 11-36T cassette
  • Kenda Ambra 700x45c tyres with reflective stripe
  • Shimano QC300 hubs and 20mm inner width rims
  • Mounts for rack, mudguards and kickstand

Sizing

  • S: 150cm - 164cm
  • M: 160cm - 174cm
  • L: over 165cm

Specifications

  • Crossway 100
  • DisciplineLeisure/Commute

  • MaterialAluminium

  • Front Travel63mm

  • Wheel Size700c

  • WarrantyLifetime

Frame - TFS IV, 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135x9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700x50c
Fork - SR Suntour NEX HLO; Coil; 63mm travel; lockout; 700x48c max tyre size
Headset - Merida M2346 Neck
Stem - Merida Comp CC; material: aluminium; 31.8mm diameter; 17 degree rise; length: 90mm
Handlebar - Merida Comp CC; material: aluminium; 680mm wide; 15mm rise
Grips - Merida Comp TK
Brake type - Hydraulic disc
Front brake - Shimano MT200; 2 piston with Shimano RT10; 160mm
Rear brake - Shimano MT200; 2 piston with Shimano RT10; 160mm
Front tyre - Kenda Ambra K1278; 700x45c; wired; reflective stripe
Rear tyre - Kenda Ambra K1278; 700x45c; wired; reflective stripe
Wheel size - 700c
Rims - Merida Comp TK; 20mm inner rim width; 17mm rim depth; material: aluminium
Spokes - Black stainless
Front hub - Shimano QC300; 100x9mm; 32 spoke; Centerlock
Rear hub - Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Speeds - 18
Front derailleur - Shimano Cues U4000
Rear derailleur - Shimano Cues U3020; SGS
Shift levers - Front: Shimano Cues U4000, Rear: Shimano Cues U4000
Chain - KMC xGlide
Cassette - Shimano LG300; 11-36 teeth; 9 speed
Chainset - Shimano Cues U4000; 40-26 tooth; crank length: XXS-S 170mm, M-XL 175mm
Bottom bracket - Shimano BB-UN101; 73mm
Pedals - VP VPE-889P
Saddle - Merida Comp TK
Seatpost - Merida Comp CC; material: aluminium; 30.9mm diameter; 5mm layback

Merida Crossway 100 2026

Crossway 100 2026

  • Hybrid/Commute
  • Hardtail · 63mm fork
  • Alloy frame
SKU: R133
The Crossway 100 is a comfortable, versatile hybrid that suits leisure rides and commuting equally well, with a few smart upgrades over the entry-level models. Its 63mm SR Suntour coil Read more
Regular price £750
Colour

Size
In stock: bike despatched in 2-3 days

90 Day Returns

£750.0
Finance is subject to status. Terms and conditions apply.

The Crossway 100 is a comfortable, versatile hybrid that suits leisure rides and commuting equally well, with a few smart upgrades over the entry-level models.

Its 63mm SR Suntour coil fork now has a lockout, so you can firm it up on smooth tarmac and let it soak up bumps on rougher roads and towpaths. Shimano MT200 hydraulic disc brakes give lighter, more powerful braking than cable discs, and the Shimano Cues 2x9 drivetrain offers a wide, easy-to-use spread of gears. The Kenda 45mm tyres have reflective sidewall stripes for extra visibility after dark.

The lightweight aluminium frame has internal cable routing and mounts for a rack, mudguards and kickstand, so the Crossway can be set up for whatever your riding involves.

Features

  • TFS IV aluminium frame with internal cable routing
  • 63mm SR Suntour NEX coil fork with lockout
  • Shimano MT200 hydraulic disc brakes with 160mm rotors
  • Shimano Cues 2x9 drivetrain with 11-36T cassette
  • Kenda Ambra 700x45c tyres with reflective stripe
  • Shimano QC300 hubs and 20mm inner width rims
  • Mounts for rack, mudguards and kickstand

Sizing

  • S: 150cm - 164cm
  • M: 160cm - 174cm
  • L: over 165cm

Specifications

  • Crossway 100
  • DisciplineLeisure/Commute

  • MaterialAluminium

  • Front Travel63mm

  • Wheel Size700c

  • WarrantyLifetime

Frame - TFS IV, 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135x9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700x50c
Fork - SR Suntour NEX HLO; Coil; 63mm travel; lockout; 700x48c max tyre size
Headset - Merida M2346 Neck
Stem - Merida Comp CC; material: aluminium; 31.8mm diameter; 17 degree rise; length: 90mm
Handlebar - Merida Comp CC; material: aluminium; 680mm wide; 15mm rise
Grips - Merida Comp TK
Brake type - Hydraulic disc
Front brake - Shimano MT200; 2 piston with Shimano RT10; 160mm
Rear brake - Shimano MT200; 2 piston with Shimano RT10; 160mm
Front tyre - Kenda Ambra K1278; 700x45c; wired; reflective stripe
Rear tyre - Kenda Ambra K1278; 700x45c; wired; reflective stripe
Wheel size - 700c
Rims - Merida Comp TK; 20mm inner rim width; 17mm rim depth; material: aluminium
Spokes - Black stainless
Front hub - Shimano QC300; 100x9mm; 32 spoke; Centerlock
Rear hub - Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Speeds - 18
Front derailleur - Shimano Cues U4000
Rear derailleur - Shimano Cues U3020; SGS
Shift levers - Front: Shimano Cues U4000, Rear: Shimano Cues U4000
Chain - KMC xGlide
Cassette - Shimano LG300; 11-36 teeth; 9 speed
Chainset - Shimano Cues U4000; 40-26 tooth; crank length: XXS-S 170mm, M-XL 175mm
Bottom bracket - Shimano BB-UN101; 73mm
Pedals - VP VPE-889P
Saddle - Merida Comp TK
Seatpost - Merida Comp CC; material: aluminium; 30.9mm diameter; 5mm layback
