Mechanically, this is the standard Crossway 10 - the same TFS IV double butted aluminium frame with its low sloping top tube and mounts for a rack, mudguards and a kickstand - offered in XS, S and M for shorter riders rather than the S to L range.
That means the same easy-going package: an 80mm SR Suntour XCS28 coil fork to soften rough tarmac, 700x45C Kenda Ambra tyres, a 21-speed Shimano drivetrain with a low bottom gear for hills with shopping on board, and Shimano BR-M375 mechanical disc brakes that are cheap to service and reliable in winter. The 620mm bar with 30mm rise and the Cross Sport saddle keep you sat up and looking around, which is what you want in traffic.
Features
- Sized XS to M, on the same TFS IV double butted 6061 aluminium frame as the standard Crossway 10
- Low, sloping top tube for easy standover, plus rack, mudguard and kickstand mounts
- SR Suntour XCS28 coil fork with 80mm of travel
- Shimano 21-speed drivetrain: TY301 48-38-28 chainset with a 12-32 seven-speed cassette
- Shimano BR-M375 mechanical disc brakes, easy to adjust and dependable in the wet
- 700x45C Kenda Ambra tyres on Merida Comp CC rims with Shimano QC300 Centerlock hubs
- Upright fit from a 620mm 30mm rise bar and a Merida Cross Sport saddle
Specifications
Discipline Hybrid/Commute
Material Aluminium
Front Travel 80mm
Wheel Size 700c
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour XCS28; Coil; 80mm travel; 29x2.25 max. wheel size
Headset - Merida M2345
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise
Handlebar - Merida CC; steel; 620mm wide; 30mm rise
Grips - Merida EC
Brake Type - Mechanical Disc
Brakes - Front: Shimano BR-M375; mechanical disc brake Rear: Shimano BR-M375; mechanical disc brake
Wheels - Rims: Merida Comp CC; 20mm inner rim width; aluminium Spokes: Steel UCP Front Hub: Shimano QC300; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Kenda Ambra K1278; 700x45C; wire Rear: Kenda Ambra K1278; 700x45C; wire
Wheel Size - 700c
Speeds - 21
Shifters - Front: Shimano ST-EF500-L Rear: Shimano ST-EF500-7R
Front Derailleur - Shimano FD-TY510-3
Rear Derailleur - Shimano RD-M310-7
Chainset - Shimano TY301; 48-38-28 teeth; Aluminium; Crank Length: (XXS-S/M) - 170mm, (M/L up) - 175mm
Bottom Bracket - Shimano UN101 LL123
Chain - SunRace CNM 84
Cassette - Shimano CS-HG210-7; 12-32 teeth; 7 speed
Pedals - VP VPE-891
Saddle - Merida Cross Sport
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; in-line

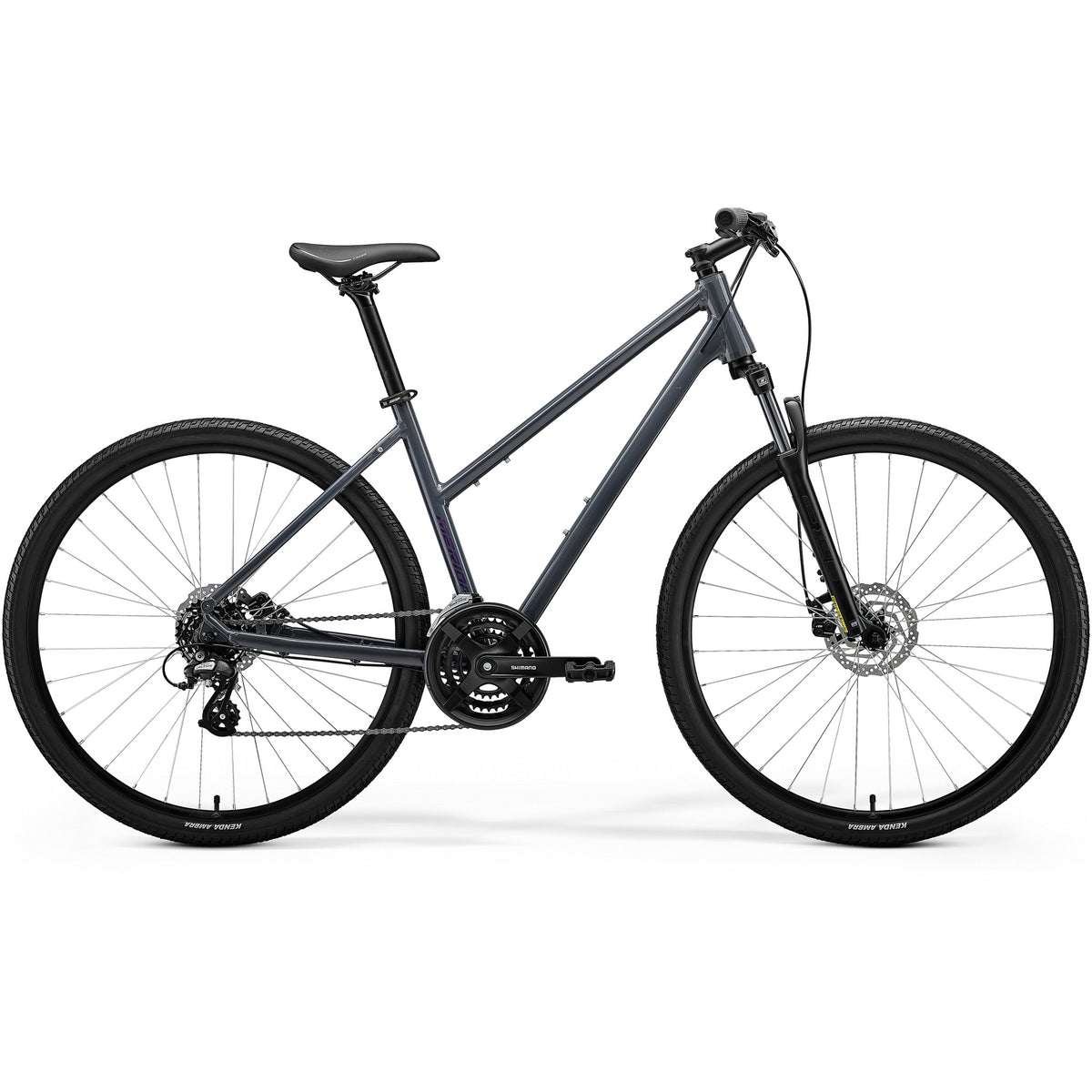

Crossway 10 Women's 2027
Order within [time] for delivery by [date]
90 Day Returns
Mechanically, this is the standard Crossway 10 - the same TFS IV double butted aluminium frame with its low sloping top tube and mounts for a rack, mudguards and a kickstand - offered in XS, S and M for shorter riders rather than the S to L range.
That means the same easy-going package: an 80mm SR Suntour XCS28 coil fork to soften rough tarmac, 700x45C Kenda Ambra tyres, a 21-speed Shimano drivetrain with a low bottom gear for hills with shopping on board, and Shimano BR-M375 mechanical disc brakes that are cheap to service and reliable in winter. The 620mm bar with 30mm rise and the Cross Sport saddle keep you sat up and looking around, which is what you want in traffic.
Features
- Sized XS to M, on the same TFS IV double butted 6061 aluminium frame as the standard Crossway 10
- Low, sloping top tube for easy standover, plus rack, mudguard and kickstand mounts
- SR Suntour XCS28 coil fork with 80mm of travel
- Shimano 21-speed drivetrain: TY301 48-38-28 chainset with a 12-32 seven-speed cassette
- Shimano BR-M375 mechanical disc brakes, easy to adjust and dependable in the wet
- 700x45C Kenda Ambra tyres on Merida Comp CC rims with Shimano QC300 Centerlock hubs
- Upright fit from a 620mm 30mm rise bar and a Merida Cross Sport saddle
Specifications
Discipline Hybrid/Commute
Material Aluminium
Front Travel 80mm
Wheel Size 700c
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour XCS28; Coil; 80mm travel; 29x2.25 max. wheel size
Headset - Merida M2345
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise
Handlebar - Merida CC; steel; 620mm wide; 30mm rise
Grips - Merida EC
Brake Type - Mechanical Disc
Brakes - Front: Shimano BR-M375; mechanical disc brake Rear: Shimano BR-M375; mechanical disc brake
Wheels - Rims: Merida Comp CC; 20mm inner rim width; aluminium Spokes: Steel UCP Front Hub: Shimano QC300; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Kenda Ambra K1278; 700x45C; wire Rear: Kenda Ambra K1278; 700x45C; wire
Wheel Size - 700c
Speeds - 21
Shifters - Front: Shimano ST-EF500-L Rear: Shimano ST-EF500-7R
Front Derailleur - Shimano FD-TY510-3
Rear Derailleur - Shimano RD-M310-7
Chainset - Shimano TY301; 48-38-28 teeth; Aluminium; Crank Length: (XXS-S/M) - 170mm, (M/L up) - 175mm
Bottom Bracket - Shimano UN101 LL123
Chain - SunRace CNM 84
Cassette - Shimano CS-HG210-7; 12-32 teeth; 7 speed
Pedals - VP VPE-891
Saddle - Merida Cross Sport
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; in-line
