Description
The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting. All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height. For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Specifications
-
Discipline Leisure/Commute
-
Material Aluminium
-
Front Travel 63mm
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour NEX DS; Coil; 63 mm travel; 700x50C max. tyre size
Headset - Merida M2345
Stem - Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Handlebar - Merida CC; material: steel; 620mm wide; 30mm rise
Grip - Merida EC
Brake Type - Mechanical Disc
Front Brake - Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm
Rear Brake - Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm
Front Tyre - Kenda Ambra K1278; 700x45C; wired
Rear Tyre - Kenda Ambra K1278; 700x45C; wired
Wheel Size - 700c
Rim - Merida Comp TK; 17mm inner rim width; material: aluminium
Spokes - Steel UCP
Front Hub - Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub - Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Speeds - 21
Front Derailleur - Shimano FD-TY510-3
Rear Derailleur - Shimano RD-M310-7
Shift Levers - Front: Shimano ST-EF500-L, Rear: Shimano ST-EF500-7R
Chain - SunRace CNM 84
Cassette - Shimano CS-HG210-7; 12-32 teeth; 7 speed
Chainset - Shimano TY301; 48-38-28 tooth chainset; material: aluminium; Crank length: (XXS-M) - 170mm, (M/L up) - 175mm
Bottom Bracket - Shimano UN101 LL123
Pedals - VP VPE-891
Saddle - Merida Cross Sport
Seat Post - Merida Comp CC; material: aluminium; 30.9mm diameter; in-line

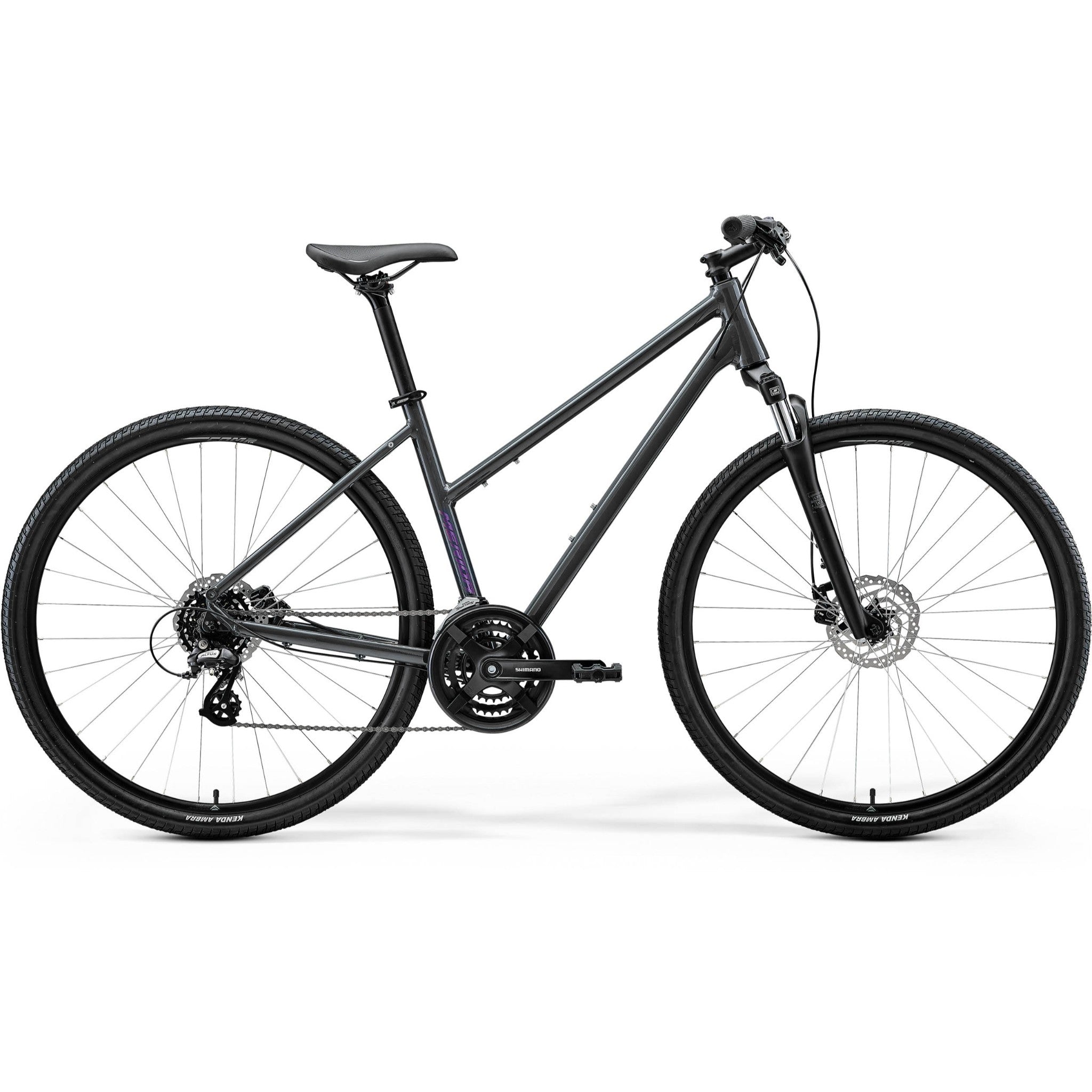

Merida Crossway 10 Womens 2026
The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting. All disc brake models use the same lightweight aluminium frame with...
Order within [time] for delivery by [date]
90 Day Returns
Description
The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting. All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height. For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Specifications
-
Discipline Leisure/Commute
-
Material Aluminium
-
Front Travel 63mm
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour NEX DS; Coil; 63 mm travel; 700x50C max. tyre size
Headset - Merida M2345
Stem - Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Handlebar - Merida CC; material: steel; 620mm wide; 30mm rise
Grip - Merida EC
Brake Type - Mechanical Disc
Front Brake - Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm
Rear Brake - Shimano BR-M375; mechanical Disc brake with Shimano RT10; 160 mm
Front Tyre - Kenda Ambra K1278; 700x45C; wired
Rear Tyre - Kenda Ambra K1278; 700x45C; wired
Wheel Size - 700c
Rim - Merida Comp TK; 17mm inner rim width; material: aluminium
Spokes - Steel UCP
Front Hub - Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub - Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Speeds - 21
Front Derailleur - Shimano FD-TY510-3
Rear Derailleur - Shimano RD-M310-7
Shift Levers - Front: Shimano ST-EF500-L, Rear: Shimano ST-EF500-7R
Chain - SunRace CNM 84
Cassette - Shimano CS-HG210-7; 12-32 teeth; 7 speed
Chainset - Shimano TY301; 48-38-28 tooth chainset; material: aluminium; Crank length: (XXS-M) - 170mm, (M/L up) - 175mm
Bottom Bracket - Shimano UN101 LL123
Pedals - VP VPE-891
Saddle - Merida Cross Sport
Seat Post - Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
