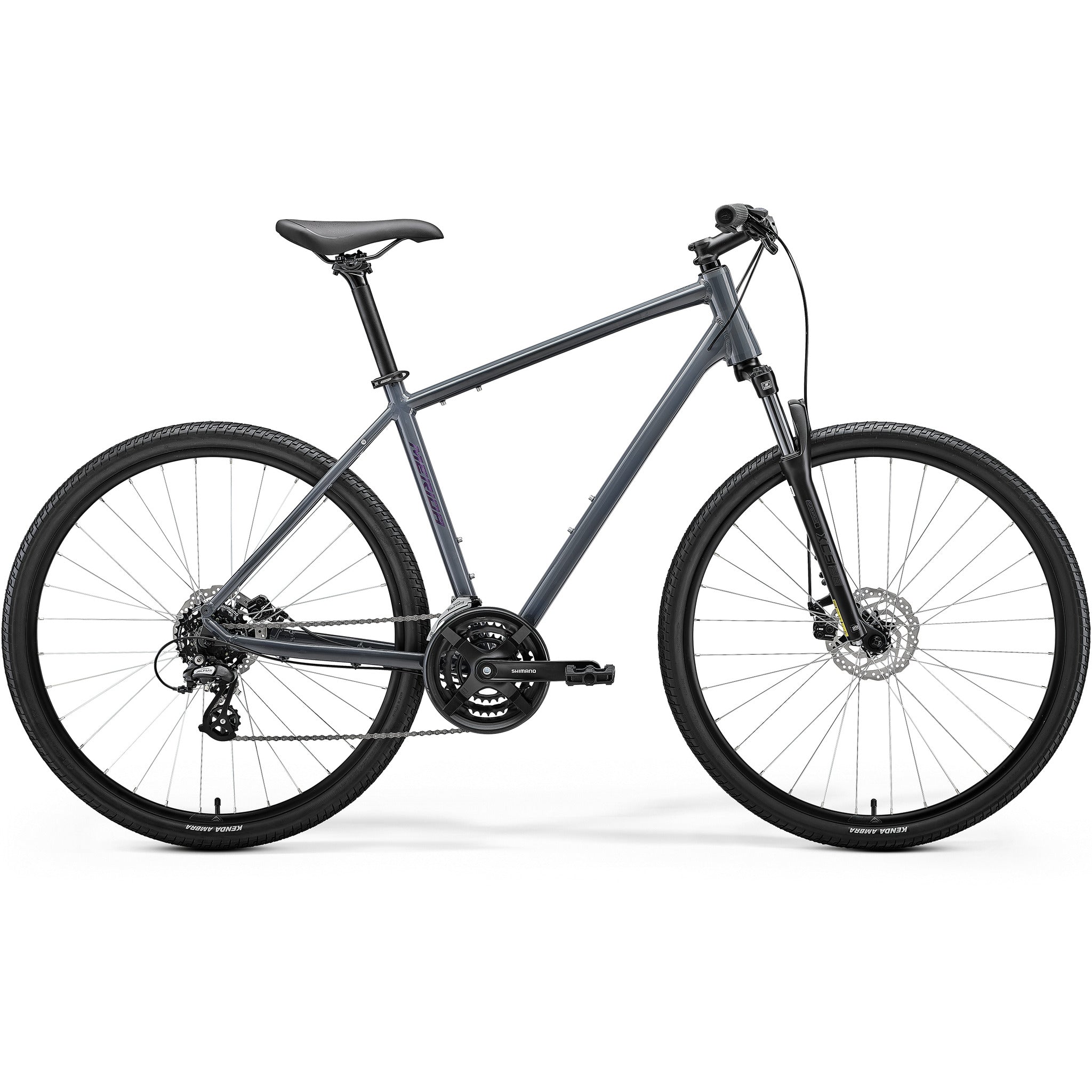

The Crossway 10 is a hybrid built for the everyday - the ride to work, the school run, a Sunday potter along the canal. Its TFS IV frame uses double butted technoformed 6061 aluminium with a steeply sloping top tube for generous standover, internal cable routing to keep things tidy, and mounts for a rack, mudguards and a kickstand, so it can be set up as a proper year-round bike rather than a fair-weather one.
An 80mm SR Suntour XCS28 coil fork takes the sting out of kerbs and broken tarmac, and 700x45C Kenda Ambra tyres add a bit of cushioning of their own with room in the frame for up to 700x50c. The 21-speed Shimano drivetrain keeps a low bottom gear for loaded climbs, while Shimano BR-M375 mechanical disc brakes are simple to adjust and far more consistent in the wet than rim brakes. Shimano hubs, chainset and bottom bracket at this money are a sensible touch - they simply keep going.
Features
- TFS IV double butted technoformed 6061 aluminium frame with internal cable routing and a low, sloping top tube
- Mounts for a rack, mudguards and a kickstand, with clearance for tyres up to 700x50c
- SR Suntour XCS28 coil fork with 80mm of travel
- Shimano 21-speed drivetrain: TY301 48-38-28 chainset with a 12-32 seven-speed cassette
- Shimano BR-M375 mechanical disc brakes with Shimano ST-EF500 combined brake and shift levers
- 700x45C Kenda Ambra tyres on 20mm inner width Merida Comp CC rims, laced to Shimano QC300 Centerlock hubs
- 620mm bar with 30mm rise and a Merida Cross Sport saddle for an upright, relaxed riding position
Specifications
Discipline Hybrid/Commute
Material Aluminium
Front Travel 80mm
Wheel Size 700c
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour XCS28; Coil; 80mm travel; 29x2.25 max. wheel size
Headset - Merida M2345
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise
Handlebar - Merida CC; steel; 620mm wide; 30mm rise
Grips - Merida EC
Brake Type - Mechanical Disc
Brakes - Front: Shimano BR-M375; mechanical disc brake Rear: Shimano BR-M375; mechanical disc brake
Wheels - Rims: Merida Comp CC; 20mm inner rim width; aluminium Spokes: Steel UCP Front Hub: Shimano QC300; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Kenda Ambra K1278; 700x45C; wire Rear: Kenda Ambra K1278; 700x45C; wire
Wheel Size - 700c
Speeds - 21
Shifters - Front: Shimano ST-EF500-L Rear: Shimano ST-EF500-7R
Front Derailleur - Shimano FD-TY510-3
Rear Derailleur - Shimano RD-M310-7
Chainset - Shimano TY301; 48-38-28 teeth; Aluminium; Crank Length: (XXS-S/M) - 170mm, (M/L up) - 175mm
Bottom Bracket - Shimano UN101 LL123
Chain - SunRace CNM 84
Cassette - Shimano CS-HG210-7; 12-32 teeth; 7 speed
Pedals - VP VPE-891
Saddle - Merida Cross Sport
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; in-line
Crossway 10 2027
Order within [time] for delivery by [date]
90 Day Returns
The Crossway 10 is a hybrid built for the everyday - the ride to work, the school run, a Sunday potter along the canal. Its TFS IV frame uses double butted technoformed 6061 aluminium with a steeply sloping top tube for generous standover, internal cable routing to keep things tidy, and mounts for a rack, mudguards and a kickstand, so it can be set up as a proper year-round bike rather than a fair-weather one.
An 80mm SR Suntour XCS28 coil fork takes the sting out of kerbs and broken tarmac, and 700x45C Kenda Ambra tyres add a bit of cushioning of their own with room in the frame for up to 700x50c. The 21-speed Shimano drivetrain keeps a low bottom gear for loaded climbs, while Shimano BR-M375 mechanical disc brakes are simple to adjust and far more consistent in the wet than rim brakes. Shimano hubs, chainset and bottom bracket at this money are a sensible touch - they simply keep going.
Features
- TFS IV double butted technoformed 6061 aluminium frame with internal cable routing and a low, sloping top tube
- Mounts for a rack, mudguards and a kickstand, with clearance for tyres up to 700x50c
- SR Suntour XCS28 coil fork with 80mm of travel
- Shimano 21-speed drivetrain: TY301 48-38-28 chainset with a 12-32 seven-speed cassette
- Shimano BR-M375 mechanical disc brakes with Shimano ST-EF500 combined brake and shift levers
- 700x45C Kenda Ambra tyres on 20mm inner width Merida Comp CC rims, laced to Shimano QC300 Centerlock hubs
- 620mm bar with 30mm rise and a Merida Cross Sport saddle for an upright, relaxed riding position
Specifications
Discipline Hybrid/Commute
Material Aluminium
Front Travel 80mm
Wheel Size 700c
Frame - TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - SR Suntour XCS28; Coil; 80mm travel; 29x2.25 max. wheel size
Headset - Merida M2345
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise
Handlebar - Merida CC; steel; 620mm wide; 30mm rise
Grips - Merida EC
Brake Type - Mechanical Disc
Brakes - Front: Shimano BR-M375; mechanical disc brake Rear: Shimano BR-M375; mechanical disc brake
Wheels - Rims: Merida Comp CC; 20mm inner rim width; aluminium Spokes: Steel UCP Front Hub: Shimano QC300; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Kenda Ambra K1278; 700x45C; wire Rear: Kenda Ambra K1278; 700x45C; wire
Wheel Size - 700c
Speeds - 21
Shifters - Front: Shimano ST-EF500-L Rear: Shimano ST-EF500-7R
Front Derailleur - Shimano FD-TY510-3
Rear Derailleur - Shimano RD-M310-7
Chainset - Shimano TY301; 48-38-28 teeth; Aluminium; Crank Length: (XXS-S/M) - 170mm, (M/L up) - 175mm
Bottom Bracket - Shimano UN101 LL123
Chain - SunRace CNM 84
Cassette - Shimano CS-HG210-7; 12-32 teeth; 7 speed
Pedals - VP VPE-891
Saddle - Merida Cross Sport
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; in-line
