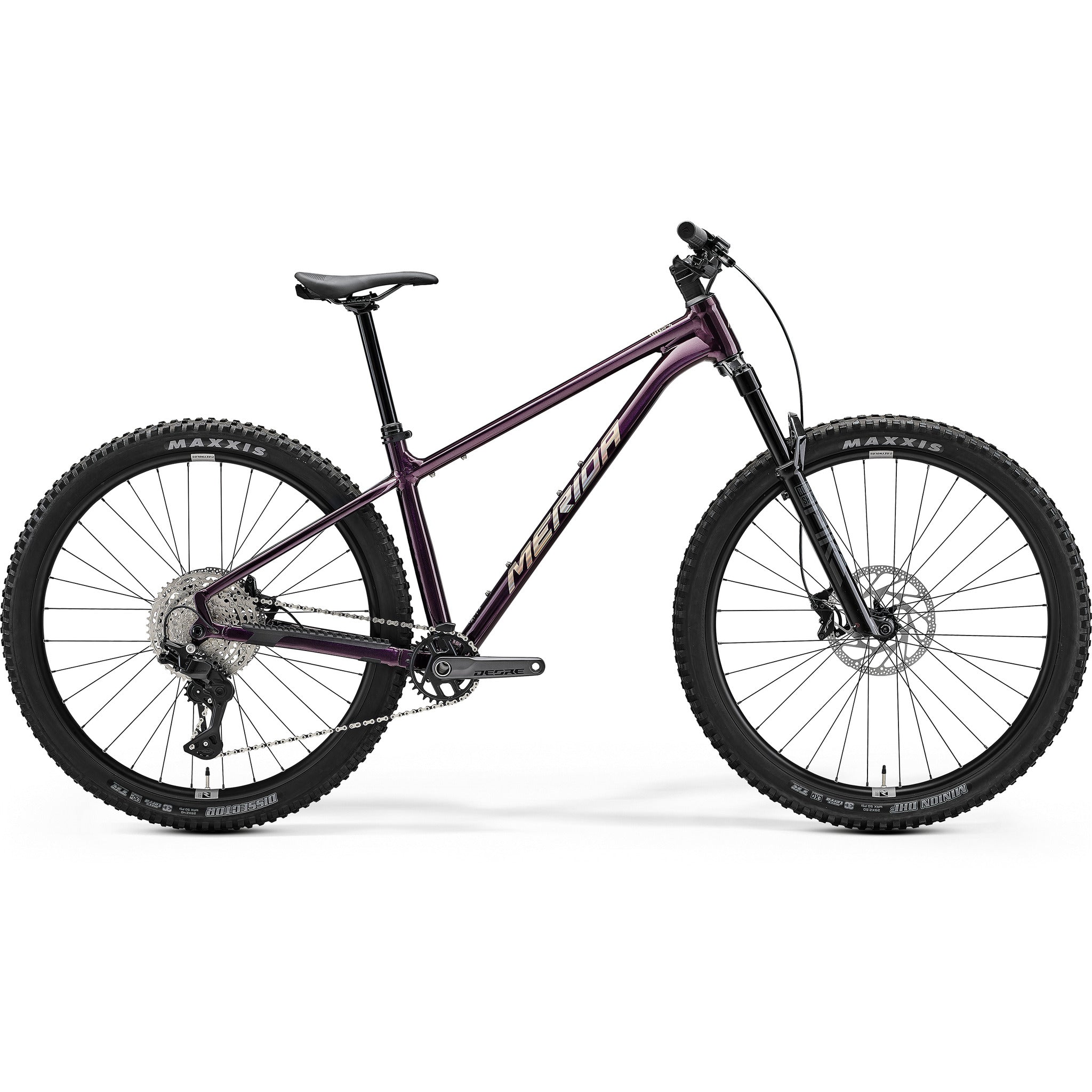

  • Big Trail 600 2027 Metallic Purple (Gold) / XS

Top of the Big Trail hardtail range, the 600 is for riders who want a simple back end and no excuses anywhere else. The TFS 6061 double-butted aluminium frame carries the same progressive numbers as the rest of the family, a 64.0° head angle with a 76.5° seat tube, which climbs well and holds its nerve on steep, rough ground.

A RockShox Pike air fork looks after the front with 140mm of travel, a platform damper and a 44mm offset. TRP Slate Evo HD-M7040 four-piston hydraulic discs are the stoppers, and the drivetrain is a 1x12 Shimano Deore M6200 group with a 10-51 cassette and an M7200 SGS rear derailleur. Reynolds 309 Enduro Comp rims with a 30mm internal width come with tubeless tape already installed, wrapped in a Maxxis Minion DHF 29x2.5 3C MaxxTerra up front and a Dissector 29x2.4 EXO+ 3C MaxxTerra at the rear.

Dropper travel runs from 170mm to 230mm depending on frame size, with 25mm of travel adjustability built into the post, and there is a minitool tucked under the saddle. As with the rest of the range, Agilometer sizing lets you choose reach to suit your riding style rather than just your leg length.

Features

  • TFS 6061 double-butted technoformed aluminium frame, Boost axles, internal cable routing, BSA threaded bottom bracket
  • Progressive trail geometry: 64.0° head angle, 76.5° seat angle
  • RockShox Pike air fork, 140mm travel, platform damper, 44mm offset
  • TRP Slate Evo HD-M7040 four-piston hydraulic disc brakes
  • 1x12 Shimano Deore M6200 drivetrain, 10-51 cassette, M7200 SGS rear derailleur
  • Reynolds 309 Enduro Comp rims, 30mm internal width, tubeless tape pre-installed
  • Maxxis Minion DHF 29x2.5 3C MaxxTerra front, Dissector 29x2.4 EXO+ 3C MaxxTerra rear
  • Size-specific dropper post, 170mm to 230mm travel with 25mm of adjustability
  • Minitool integrated under the saddle

Specifications

  • Big Trail 600
  • Discipline MTB

  • Material Alloy

  • Front Travel 140mm

  • Wheel Size 29in

Frame - TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29 x 2.5
Fork - Rock Shox Pike; Air; 140mm travel; tapered; platform; 44mm fork offset; 29x2.6 max. wheel size
Headset - Acros ICR Merida external neck; Upper and lower IPS sealing
Stem - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise
Handlebar - Merida Expert TR II; aluminium; 780mm wide; 30mm rise
Grips - Merida Comp TR
Brake Type - Hydraulic Disc
Brakes - Front: TRP Slate Evo HD-M7040; 4 piston Rear: TRP Slate Evo HD-M7040; 4 piston
Wheels - Rims: Reynolds 309 Enduro Comp; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape installed); 29 Spokes: Double Butted Black stainless w/black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 spoke; Centerlock Rear Hub: Shimano TC500-MS-B; 148x12mm; 32 spoke; Centerlock
Tyres - Front: Maxxis Minion DHF; 29x2.5; fold; TR EXO 3C MaxxTerra Rear: Maxxis Dissector; 29x2.4; fold; TR EXO+ 3C MaxxTerra
Wheel Size - 29
Speeds - 12
Shifters - Front: Shimano SL-MT500-IL Rear: Shimano Deore M6200
Rear Derailleur - Shimano Deore M7200; SGS
Chainset - Shimano Deore M6200; 32 teeth; Crank Length: 165mm for all sizes
Bottom Bracket - Shimano MT501; 24mm
Chain - KMC X12
Cassette - Shimano Deore M6200; 10-51 teeth; 12 speed
Saddle - Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool
Seat Post - Merida Expert TR IV; 34.9mm diameter; in-line; 25mm travel adjustability; XShort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm

Big Trail 600 2027

SKU: S175 / Barcode: 4711256536217
Top of the Big Trail hardtail range, the 600 is for riders who want a simple back end and no excuses anywhere else. The TFS 6061 double-butted aluminium frame carries Read more
Regular price £1,800.00
Colour

Size

Out of stock

90 Day Returns

£1800.0
Finance is subject to status. Terms and conditions apply.

Top of the Big Trail hardtail range, the 600 is for riders who want a simple back end and no excuses anywhere else. The TFS 6061 double-butted aluminium frame carries the same progressive numbers as the rest of the family, a 64.0° head angle with a 76.5° seat tube, which climbs well and holds its nerve on steep, rough ground.

A RockShox Pike air fork looks after the front with 140mm of travel, a platform damper and a 44mm offset. TRP Slate Evo HD-M7040 four-piston hydraulic discs are the stoppers, and the drivetrain is a 1x12 Shimano Deore M6200 group with a 10-51 cassette and an M7200 SGS rear derailleur. Reynolds 309 Enduro Comp rims with a 30mm internal width come with tubeless tape already installed, wrapped in a Maxxis Minion DHF 29x2.5 3C MaxxTerra up front and a Dissector 29x2.4 EXO+ 3C MaxxTerra at the rear.

Dropper travel runs from 170mm to 230mm depending on frame size, with 25mm of travel adjustability built into the post, and there is a minitool tucked under the saddle. As with the rest of the range, Agilometer sizing lets you choose reach to suit your riding style rather than just your leg length.

Features

  • TFS 6061 double-butted technoformed aluminium frame, Boost axles, internal cable routing, BSA threaded bottom bracket
  • Progressive trail geometry: 64.0° head angle, 76.5° seat angle
  • RockShox Pike air fork, 140mm travel, platform damper, 44mm offset
  • TRP Slate Evo HD-M7040 four-piston hydraulic disc brakes
  • 1x12 Shimano Deore M6200 drivetrain, 10-51 cassette, M7200 SGS rear derailleur
  • Reynolds 309 Enduro Comp rims, 30mm internal width, tubeless tape pre-installed
  • Maxxis Minion DHF 29x2.5 3C MaxxTerra front, Dissector 29x2.4 EXO+ 3C MaxxTerra rear
  • Size-specific dropper post, 170mm to 230mm travel with 25mm of adjustability
  • Minitool integrated under the saddle

Specifications

  • Big Trail 600
  • Discipline MTB

  • Material Alloy

  • Front Travel 140mm

  • Wheel Size 29in

Frame - TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29 x 2.5
Fork - Rock Shox Pike; Air; 140mm travel; tapered; platform; 44mm fork offset; 29x2.6 max. wheel size
Headset - Acros ICR Merida external neck; Upper and lower IPS sealing
Stem - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise
Handlebar - Merida Expert TR II; aluminium; 780mm wide; 30mm rise
Grips - Merida Comp TR
Brake Type - Hydraulic Disc
Brakes - Front: TRP Slate Evo HD-M7040; 4 piston Rear: TRP Slate Evo HD-M7040; 4 piston
Wheels - Rims: Reynolds 309 Enduro Comp; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape installed); 29 Spokes: Double Butted Black stainless w/black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 spoke; Centerlock Rear Hub: Shimano TC500-MS-B; 148x12mm; 32 spoke; Centerlock
Tyres - Front: Maxxis Minion DHF; 29x2.5; fold; TR EXO 3C MaxxTerra Rear: Maxxis Dissector; 29x2.4; fold; TR EXO+ 3C MaxxTerra
Wheel Size - 29
Speeds - 12
Shifters - Front: Shimano SL-MT500-IL Rear: Shimano Deore M6200
Rear Derailleur - Shimano Deore M7200; SGS
Chainset - Shimano Deore M6200; 32 teeth; Crank Length: 165mm for all sizes
Bottom Bracket - Shimano MT501; 24mm
Chain - KMC X12
Cassette - Shimano Deore M6200; 10-51 teeth; 12 speed
Saddle - Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool
Seat Post - Merida Expert TR IV; 34.9mm diameter; in-line; 25mm travel adjustability; XShort - 170mm, (Short-Mid) - 200mm, (Long-XLong) - 230mm
