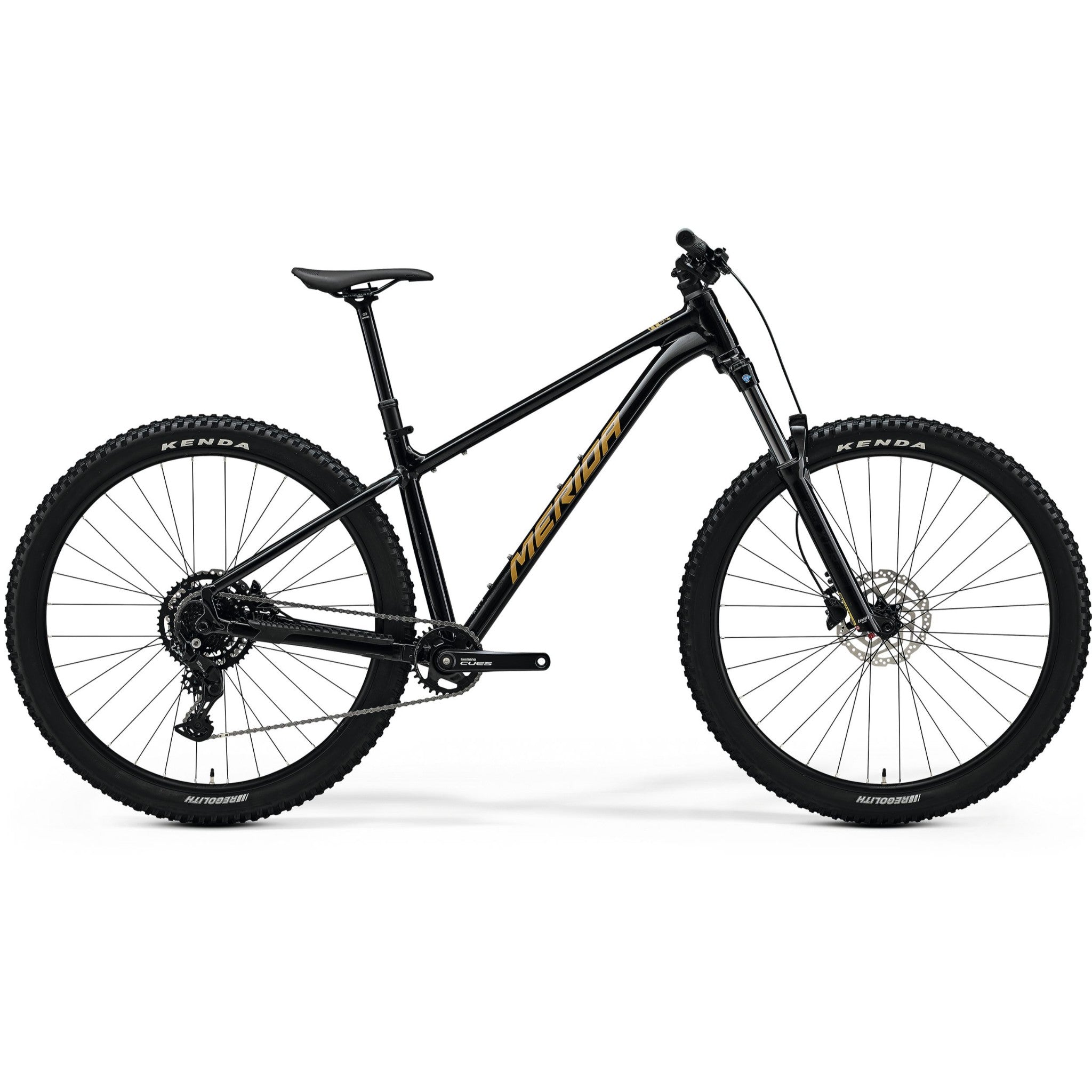

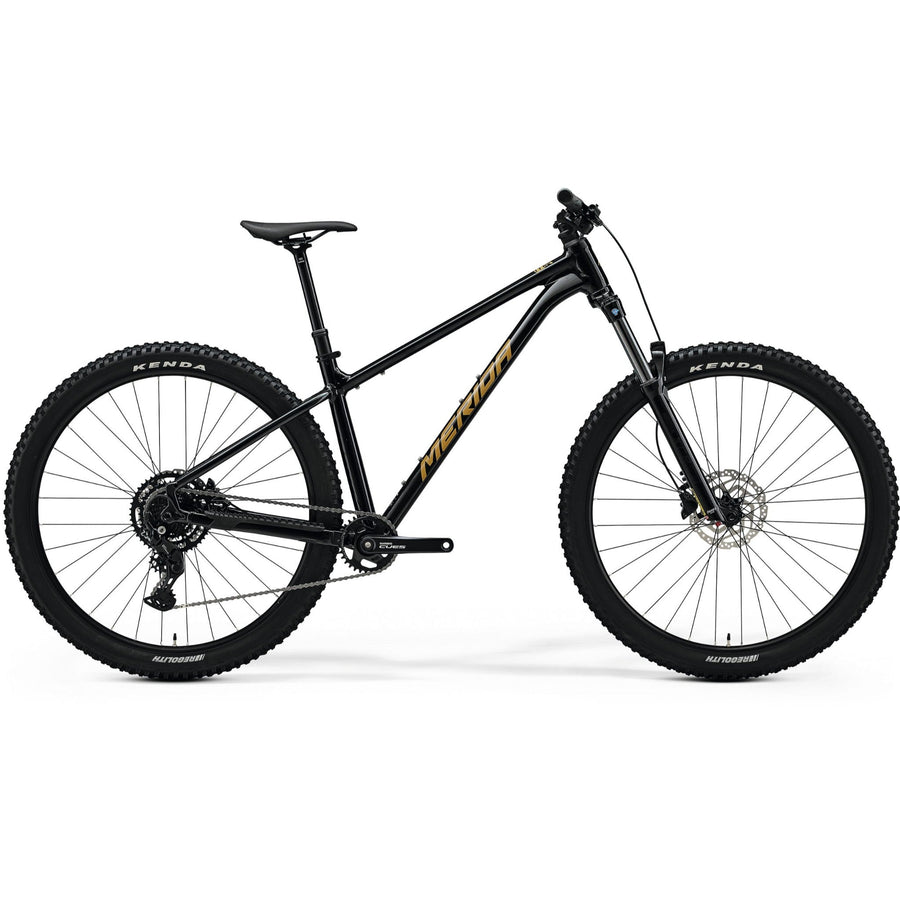

  • Merida Big Trail 300 2026 Black / XS

The Big Trail 300 is a fun, hugely capable hardtail trail bike. With progressive geometry, a long-travel 140mm air fork and grippy 2.4" Kenda Regolith tyres on 29" wheels, it's at home on lively trail sessions and long, challenging days over rough terrain.

The original Big Trail idea came from a few UK dealers sitting down with Merida's head of R&D to describe the ideal UK trail hardtail. The recipe was simple: a 140mm air fork, 29" wheels, a 1x drivetrain and a dropper post. Now in its second generation, it combines a steep 76.5° seat angle with a slack 64° head angle, so it climbs efficiently and stays stable when the trail gets steep or rough.

The build sticks to that brief. You get an SR Suntour XCR34 air fork with lockout, a Shimano Cues 1x9 drivetrain with an 11-46T cassette, Shimano MT200 hydraulic brakes with 180mm rotors, Boost hubs on wide 25mm tubeless-ready rims, and a 34.9mm dropper seatpost. Pedals are not included.

Features

  • TFS 6061 aluminium frame with internal cable routing and clearance for 29x2.5" tyres
  • Progressive geometry with a 64° head angle and 76.5° seat angle
  • 140mm SR Suntour XCR34 air fork with lockout
  • Shimano Cues 1x9 drivetrain with 11-46T cassette
  • Shimano MT200 hydraulic disc brakes with 180mm rotors
  • Dropper seatpost with 150mm (XShort) or 170mm travel
  • Boost axles, 25mm tubeless-ready rims and Kenda Regolith 2.4" tyres

Specifications

  • Big Trail 300
  • DisciplineTrail

  • MaterialAluminium

  • Front Travel140mm

  • Rear TravelHardtail

  • Wheel Size29"

  • WarrantyLifetime

Frame - TFS, 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard. Max tyre size 29x2.5"
Fork - SR Suntour XCR34 2CR; Air; 140mm travel; tapered; lockout; 44mm fork offset; 29x2.4" max tyre size
Headset - Acros ICR Merida external neck; upper and lower IPS sealing
Stem - Merida Comp TR; material: aluminium; 35mm diameter; 0 degree rise; length: 40mm
Handlebar - Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
Grips - Merida Comp TR
Brake type - Hydraulic disc
Front brake - Shimano MT200; 2 piston with Shimano RT10; 180mm
Rear brake - Shimano MT200; 2 piston with Shimano RT10; 180mm
Front tyre - Kenda Regolith; 29x2.4"; wired
Rear tyre - Kenda Regolith; 29x2.4"; wired
Wheel size - 29"
Rims - Merida Comp CC II; 25mm inner rim width; material: aluminium; tubeless ready
Spokes - Black stainless
Front hub - Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
Rear hub - Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock
Speeds - 9
Rear derailleur - Shimano Cues U4000
Shift levers - Rear: Shimano Cues U4000
Chain - KMC xGlide
Cassette - SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
Chainset - Shimano Cues UT-400-1; 32 tooth; crank length: 170mm
Bottom bracket - Shimano BB-UN101; 73mm
Pedals - Not included
Saddle - Merida Comp SL; V-mount
Seatpost - Merida Comp TR II; 34.9mm diameter; in-line; XShort 150mm, Short-XLong 170mm seatpost travel
