Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater off-road capability but without compromising everyday usability.
The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power dropper post ready.
Key features -
- Updated TFS aluminium frame with clearance for 2.4" tyres
- Trail ready geometry for confident off-road handling
- 120mm X-Fusion Migo 32mm stanchion air fork with lockout
- Shimano MT200 hydraulic disc brakes
- Shimano 2 x 9 drivetrain
- 27.5" wheels with Shimano hubs and Kenda tyres
- Size tuned Merida finishing kit
SIZING -
- XXS: >140cm
- XS: 140-156cm
- S: 157-173cm
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 27.5"
-
Warranty Lifetime
Frame - TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.4"
Fork - X-Fusion Migo 32 Air; 120 mm travel; lockout; max. 27.5x2.4" max. tyre size
Headset - FSA NO.55R/57SC/57B
Stem - Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Handlebar - Merida CC; material: aluminium; 15mm rise; (XXS-XS) - 700mm wide, S - 720mm wide
Grip - Merida Comp TR
Brake Type - Hydraulic Disc
Front Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Front Tyre - Kenda Booster; 27.5x2.4"
Rear Tyre - Kenda Booster; 27.5x2.4"
Wheel Size - 27.5"
Rim - Merida Comp CC II; 25mm inner rim width; material: aluminium; tubeless ready
Spokes - Black steel
Front Hub - Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub - Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Speeds - 18
Front Derailleur - Shimano Cues U4000
Rear Derailleur - Shimano Cues U3020; SGS
Shift Levers - Front: Shimano Cues U4000-L, Rear: Shimano Cues U4000
Chain - KMC xGlide
Cassette - SunRace U98 CS-U98 ; 11-36 teeth; 9 speed
Chainset - Shimano Cues U4002; 36-22 tooth chainset; material: aluminium; Crank length: 170mm
Bottom Bracket - Shimano UN101 LL123
Pedals - VP VPE 536
Saddle - Merida Comp SL
Seat Post - Merida Comp CC; material: aluminium; 30.9mm diameter; in-line

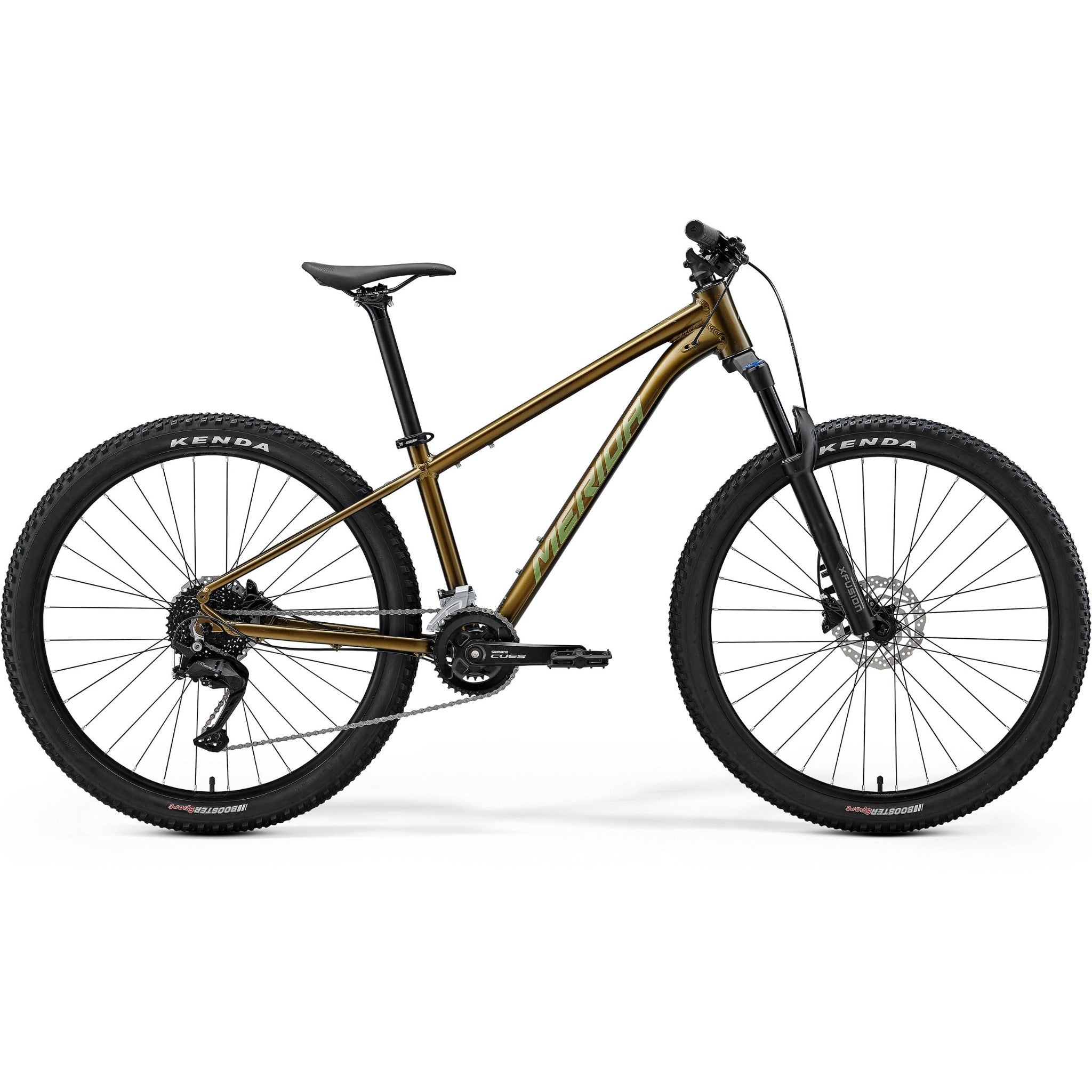

Big Seven 60 2026
