Description
Merida's expertise for over 50 years has been building bombproof aluminium hardtails.
The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability.
The sophisticated TFS frames feature:
full internal cable routing for a clean, neat set up,
tapered headtube offering future upgrade potential
inboard disc brake mounts protect the brake and maximise stopping power
dropper post ready
New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven.
Specifications
Discipline
Material
Front Travel
Rear Travel
Wheel Size 27.5"
Warranty
Frame - TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.4"
Fork - X-Fusion Migo 32 Air; 120 mm travel; lockout; max. 27.5x2.4" max. tyre size
Headset - FSA NO.55R/57SC/57B
Stem - Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Handlebar - Merida CC; material: aluminium; 15mm rise; (XXS-XS) - 700mm wide, S - 720mm wide
Grip - Merida Comp TR
Brake Type - Hydraulic Disc
Front Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Front Tyre - Kenda Booster; 27.5x2.4"
2nd color option: Booster 27.5x2.4 tanwall
Rear Tyre - Kenda Booster; 27.5x2.4"
2nd color option: Booster 27.5x2.4 tanwall
Wheel Size - 27.5"
Rim - Merida Comp CC; 20mm inner rim width; material: aluminium
Spokes - Black steel
Front Hub - Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub - Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Speeds - 9
Rear Derailleur - Shimano Cues U4000; GS
Shift Levers - Rear: Shimano Cues U4000
Chain - KMC xGlide
Cassette - SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
Chainset - Shimano Cues UT400-1; 32 tooth chainset; material: aluminium ; Crank length: 165mm
Bottom Bracket - Shimano UN101 LL123
Pedals - VP VPE 536
Saddle - Merida Comp SL
Seat Post - Merida Comp CC; material: aluminium; 30.9mm diameter; in-line

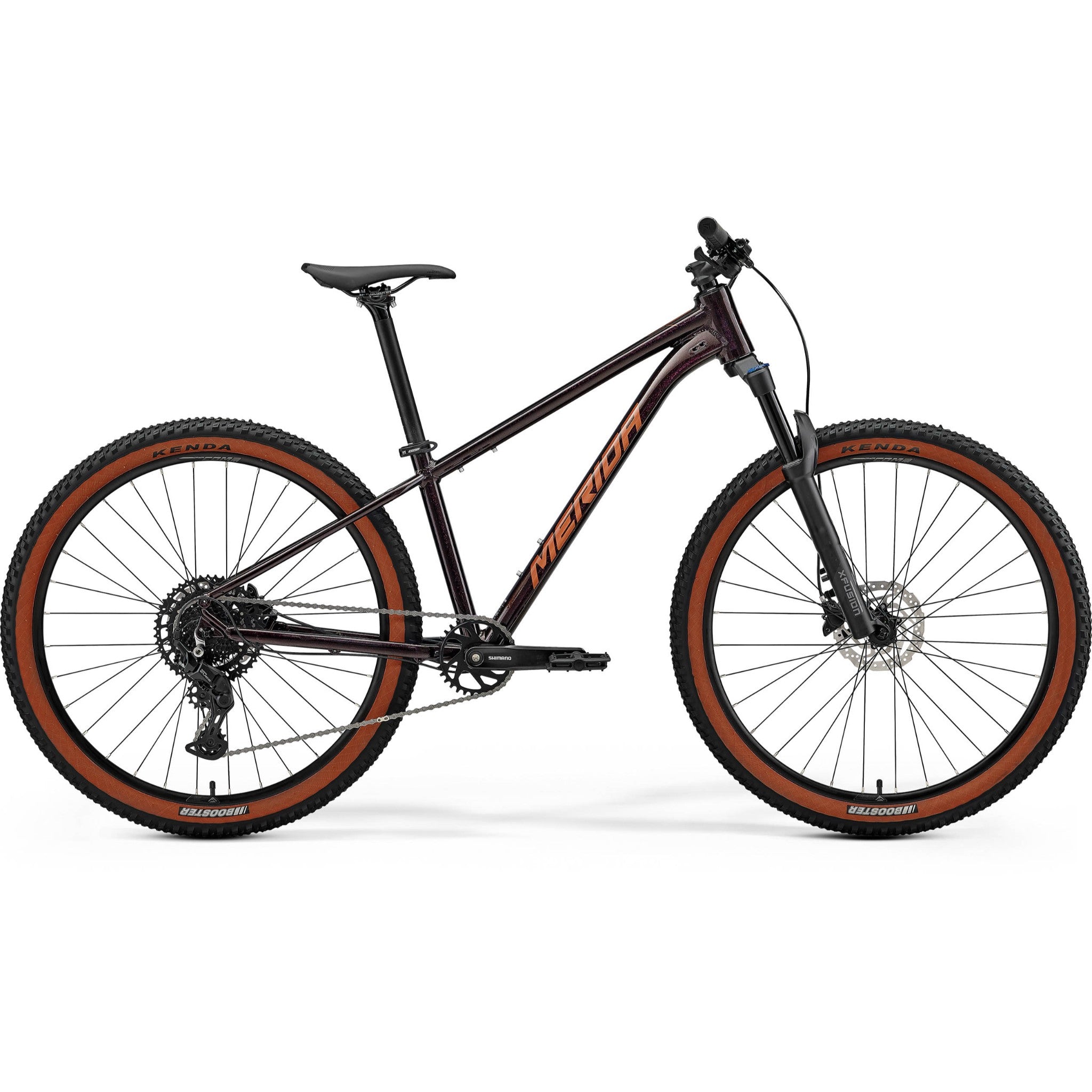

Merida Big Seven 40 2026
