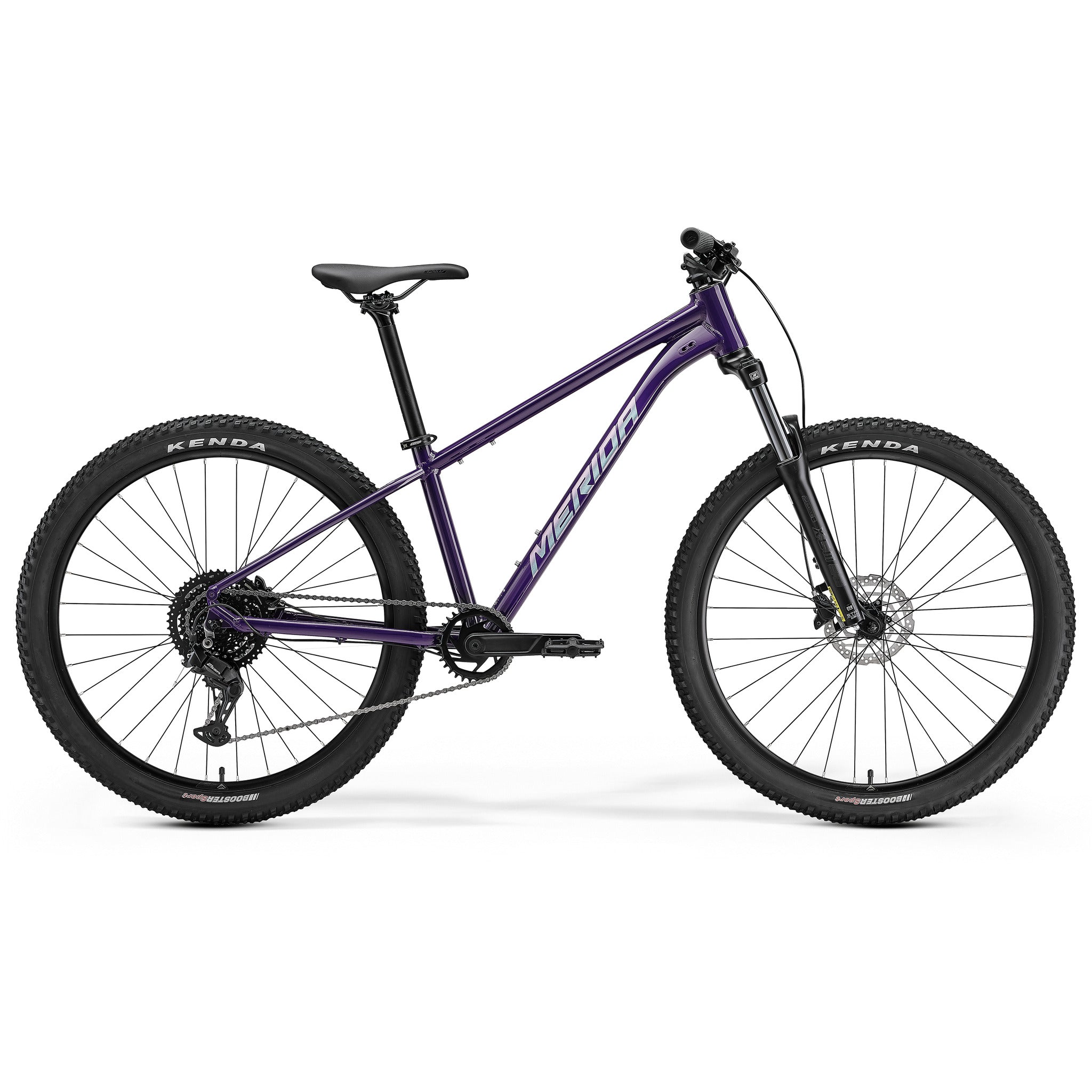

  • Big Seven 20 2027 Dark Purple (Blue) / XXS

Hydraulic brakes and 120mm of fork travel are what the step up to the Big Seven 20 buys you, and on a first mountain bike those two things count for more than almost anything else on the spec sheet. Shimano MT200 discs take far less hand effort and stay consistent when it is wet and muddy, while the SR Suntour XCM32 coil fork gives a bit more margin for getting things wrong on rough ground.

The frame is the TFS V in double butted 6061 aluminium, with a tapered head tube, full internal routing and inboard disc mounts that keep the caliper protected, on 27.5in wheels for a more manoeuvrable feel. Gearing is Shimano's Essa 1x8 with a 32 tooth Prowheel chainset and an 11-45 cassette, so there is one shifter to learn and still a low enough gear for a steep climb. Kenda Booster tyres at 27.5x2.4 use the frame's full clearance and add welcome volume, mounted on Merida Comp CC rims laced to Shimano hubs.

Features

  • TFS V double butted and technoformed 6061 aluminium frame
  • Tapered head tube, full internal cable routing, chain stay mounted disc brake
  • SR Suntour XCM32 coil fork, 120mm travel, SR Suntour 5TA axle
  • Shimano Essa 1x8 drivetrain, U2000 GS rear mech
  • Shimano CS-HG300-8 11-45 cassette with Prowheel Epro-MD26S 32 tooth chainset
  • Shimano MT200 two piston hydraulic disc brakes
  • Kenda Booster 27.5x2.4 tyres
  • Merida Comp CC rims, 20mm internal width, on Shimano TX505 and QC300-HM Centerlock hubs
  • Mudguard and kickstand mounts, BSA threaded bottom bracket, 135 x 9mm rear axle
  • Frame clearance for 27.5 x 2.4 tyres

Specifications

  • Big Seven 20
  • Discipline MTB

  • Material Aluminium

  • Front Travel 120mm

  • Wheel Size 27.5in

  • Gearing 1x8

  • Brakes Hydraulic disc

Frame - TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5 x 2.4
Fork - SR Suntour XCM32; Coil; 120mm travel; SR Suntour 5TA; 27.5x2.4 max. wheel size
Headset - FSA NO.55R/57SC/57B
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise
Handlebar - Merida Comp CC; aluminium; 15mm rise; (XXS-XS) - 700mm; S - 720mm
Grips - Merida EC
Brake Type - Hydraulic Disc
Brakes - Front: Shimano MT200; hydraulic 2 piston brake Rear: Shimano MT200; hydraulic brake
Wheels - Rims: Merida Comp CC; 20mm inner rim width; aluminium Spokes: Black steel Front Hub: Shimano TX505; for SR Suntour 5TA; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Kenda Booster; 27.5x2.4 Rear: Kenda Booster; 27.5x2.4
Wheel Size - 27.5
Speeds - 8
Shifters - Rear: Shimano Essa SL-315-8R
Rear Derailleur - Shimano Essa U2000; GS
Chainset - Prowheel Epro-MD26S; 32 teeth; Aluminium; Crank Length: 165mm for all sizes
Bottom Bracket - Shimano UN101 LL123
Chain - KMC Z8.3
Cassette - Shimano CS-HG300-8; 11-45 teeth; 8 speed
Pedals - VP VPE 536
Saddle - Merida Sport
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; in-line

Big Seven 20 2027

SKU: S145 / Barcode: 4711256480503
Hydraulic brakes and 120mm of fork travel are what the step up to the Big Seven 20 buys you, and on a first mountain bike those two things count for Read more
Regular price £725.00
Colour

Size

Out of stock

90 Day Returns

Hydraulic brakes and 120mm of fork travel are what the step up to the Big Seven 20 buys you, and on a first mountain bike those two things count for more than almost anything else on the spec sheet. Shimano MT200 discs take far less hand effort and stay consistent when it is wet and muddy, while the SR Suntour XCM32 coil fork gives a bit more margin for getting things wrong on rough ground.

The frame is the TFS V in double butted 6061 aluminium, with a tapered head tube, full internal routing and inboard disc mounts that keep the caliper protected, on 27.5in wheels for a more manoeuvrable feel. Gearing is Shimano's Essa 1x8 with a 32 tooth Prowheel chainset and an 11-45 cassette, so there is one shifter to learn and still a low enough gear for a steep climb. Kenda Booster tyres at 27.5x2.4 use the frame's full clearance and add welcome volume, mounted on Merida Comp CC rims laced to Shimano hubs.

Features

  • TFS V double butted and technoformed 6061 aluminium frame
  • Tapered head tube, full internal cable routing, chain stay mounted disc brake
  • SR Suntour XCM32 coil fork, 120mm travel, SR Suntour 5TA axle
  • Shimano Essa 1x8 drivetrain, U2000 GS rear mech
  • Shimano CS-HG300-8 11-45 cassette with Prowheel Epro-MD26S 32 tooth chainset
  • Shimano MT200 two piston hydraulic disc brakes
  • Kenda Booster 27.5x2.4 tyres
  • Merida Comp CC rims, 20mm internal width, on Shimano TX505 and QC300-HM Centerlock hubs
  • Mudguard and kickstand mounts, BSA threaded bottom bracket, 135 x 9mm rear axle
  • Frame clearance for 27.5 x 2.4 tyres

Specifications

  • Big Seven 20
  • Discipline MTB

  • Material Aluminium

  • Front Travel 120mm

  • Wheel Size 27.5in

  • Gearing 1x8

  • Brakes Hydraulic disc

Frame - TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5 x 2.4
Fork - SR Suntour XCM32; Coil; 120mm travel; SR Suntour 5TA; 27.5x2.4 max. wheel size
Headset - FSA NO.55R/57SC/57B
Stem - Merida Comp CC; aluminium; 31.8mm diameter; 7 degree rise
Handlebar - Merida Comp CC; aluminium; 15mm rise; (XXS-XS) - 700mm; S - 720mm
Grips - Merida EC
Brake Type - Hydraulic Disc
Brakes - Front: Shimano MT200; hydraulic 2 piston brake Rear: Shimano MT200; hydraulic brake
Wheels - Rims: Merida Comp CC; 20mm inner rim width; aluminium Spokes: Black steel Front Hub: Shimano TX505; for SR Suntour 5TA; 100x9mm; 32 spoke; Centerlock Rear Hub: Shimano QC300-HM; 135x9mm; 32 spoke; Centerlock
Tyres - Front: Kenda Booster; 27.5x2.4 Rear: Kenda Booster; 27.5x2.4
Wheel Size - 27.5
Speeds - 8
Shifters - Rear: Shimano Essa SL-315-8R
Rear Derailleur - Shimano Essa U2000; GS
Chainset - Prowheel Epro-MD26S; 32 teeth; Aluminium; Crank Length: 165mm for all sizes
Bottom Bracket - Shimano UN101 LL123
Chain - KMC Z8.3
Cassette - Shimano CS-HG300-8; 11-45 teeth; 8 speed
Pedals - VP VPE 536
Saddle - Merida Sport
Seat Post - Merida Comp CC; aluminium; 30.9mm diameter; in-line
