Description
Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater off-road capability but without compromising everyday usability.
The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power dropper post ready.
Key features -
- Updated TFS aluminium frame with clearance for 2.4" tyres
- Trail ready geometry for confident off-road handling
- 120mm X-Fusion Migo 32mm stanchion air fork with lockout
- Shimano MT200 hydraulic disc brakes
- Shimano 1 x 9 drivetrain
- 29" wheels with Shimano hubs and Kenda tyres
- Size tuned Merida finishing kit
SIZING -
- M: 167-183cm
- L: 177-190cm
- XL: 187-196cm
- XXL: >192cm
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel N/A
-
Wheel Size 29"
-
Warranty Lifetime
Frame - TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.4"
Fork - X-Fusion Migo 32 Air; 120 mm travel; lockout; max. 29x2.4" max. tyre size
Headset - FSA NO.55R/57SC/57B
Stem - Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Handlebar - Merida CC; material: aluminium; 15mm rise; S - 720mm wide, (M-L) - 740mm wide, (XL-XXL) - 760mm wide
Grip - Merida Comp TR
Brake Type - Hydraulic Disc
Front Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Front Tyre - Kenda Booster; 29x2.4" 2nd color option: Booster 29x2.4 tanwall
Rear Tyre - Kenda Booster; 29x2.4" 2nd color option: Booster 29x2.4 tanwall
Wheel Size - 29"
Rim - Merida Comp CC; 20mm inner rim width; material: aluminium
Spokes - Black steel
Front Hub - Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub - Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Speeds - 9
Rear Derailleur - Shimano Cues U4000; GS
Shift Levers - Rear: Shimano Cues U4000
Chain - KMC xGlide
Cassette - SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
Chainset - Shimano Cues UT400-1; 32 tooth chainset; material: aluminium ; Crank length: S - 165mm, (M-XXL) - 170mm
Bottom Bracket - Shimano UN101 LL123
Pedals - VP VPE 536
Saddle - Merida Comp SL
Seat Post - Merida Comp CC; material: aluminium; 30.9mm diameter; in-line

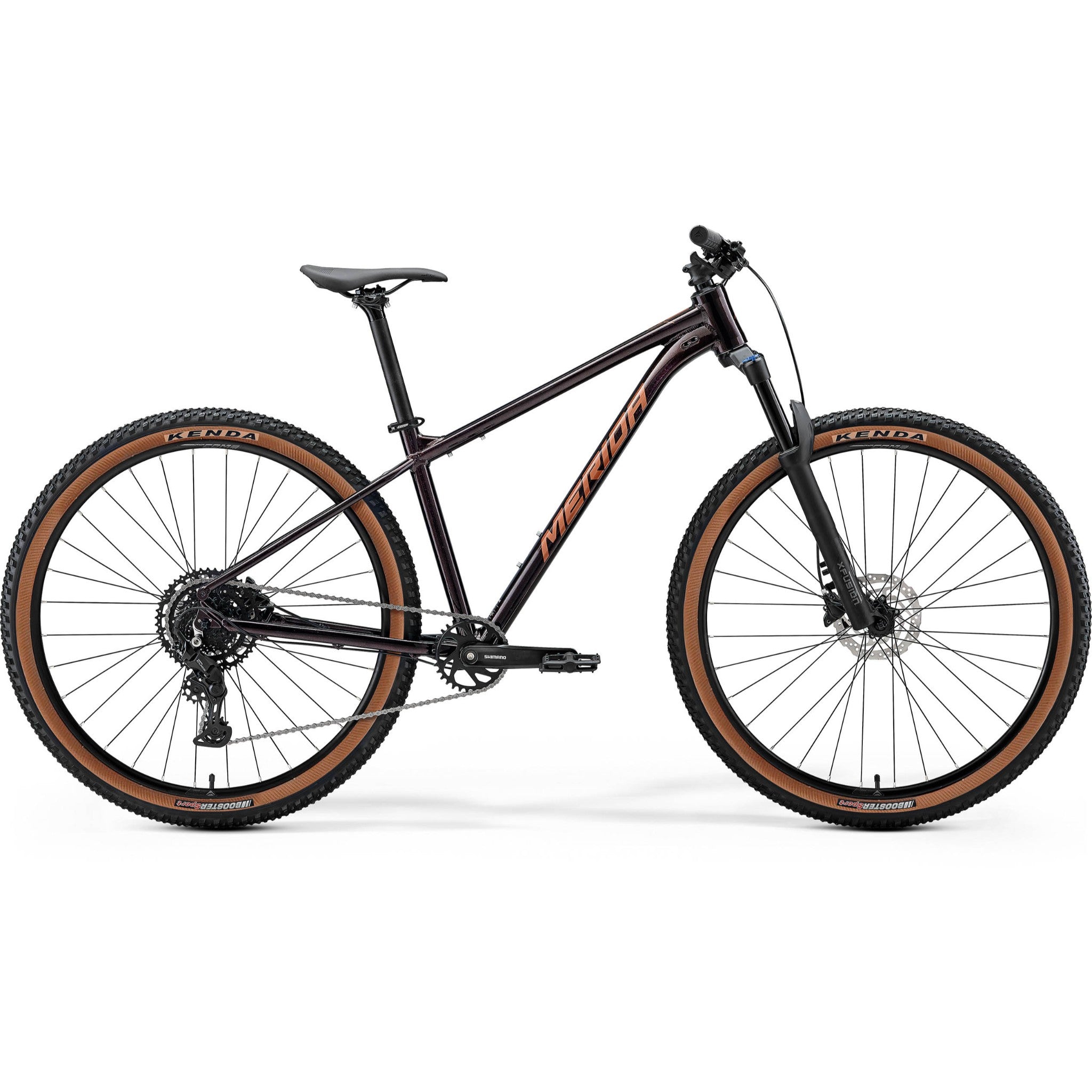

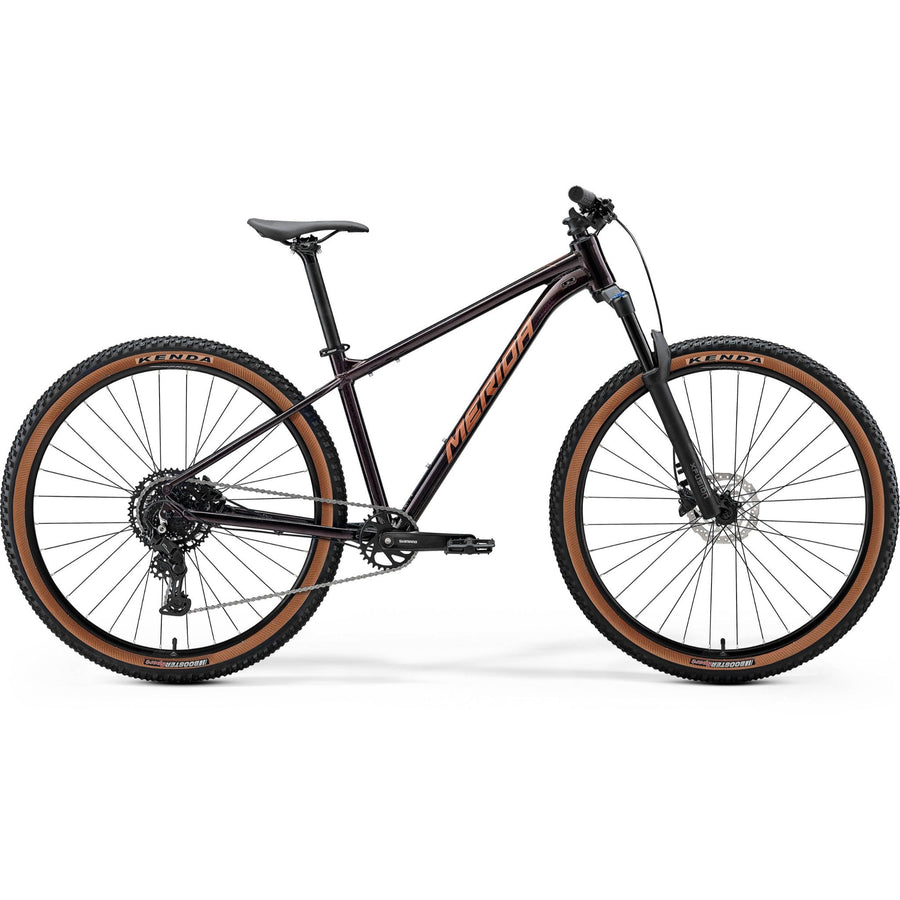

Merida Big Nine 40 2026
Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Merida's expertise for over 50 years has been building bombproof aluminium hardtails. The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater off-road capability but without compromising everyday usability.
The sophisticated TFS frames feature: full internal cable routing for a clean, neat set up, tapered headtube offering future upgrade potential inboard disc brake mounts protect the brake and maximise stopping power dropper post ready.
Key features -
- Updated TFS aluminium frame with clearance for 2.4" tyres
- Trail ready geometry for confident off-road handling
- 120mm X-Fusion Migo 32mm stanchion air fork with lockout
- Shimano MT200 hydraulic disc brakes
- Shimano 1 x 9 drivetrain
- 29" wheels with Shimano hubs and Kenda tyres
- Size tuned Merida finishing kit
SIZING -
- M: 167-183cm
- L: 177-190cm
- XL: 187-196cm
- XXL: >192cm
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel N/A
-
Wheel Size 29"
-
Warranty Lifetime
Frame - TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.4"
Fork - X-Fusion Migo 32 Air; 120 mm travel; lockout; max. 29x2.4" max. tyre size
Headset - FSA NO.55R/57SC/57B
Stem - Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Handlebar - Merida CC; material: aluminium; 15mm rise; S - 720mm wide, (M-L) - 740mm wide, (XL-XXL) - 760mm wide
Grip - Merida Comp TR
Brake Type - Hydraulic Disc
Front Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Brake - Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Front Tyre - Kenda Booster; 29x2.4" 2nd color option: Booster 29x2.4 tanwall
Rear Tyre - Kenda Booster; 29x2.4" 2nd color option: Booster 29x2.4 tanwall
Wheel Size - 29"
Rim - Merida Comp CC; 20mm inner rim width; material: aluminium
Spokes - Black steel
Front Hub - Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub - Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Speeds - 9
Rear Derailleur - Shimano Cues U4000; GS
Shift Levers - Rear: Shimano Cues U4000
Chain - KMC xGlide
Cassette - SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
Chainset - Shimano Cues UT400-1; 32 tooth chainset; material: aluminium ; Crank length: S - 165mm, (M-XXL) - 170mm
Bottom Bracket - Shimano UN101 LL123
Pedals - VP VPE 536
Saddle - Merida Comp SL
Seat Post - Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
