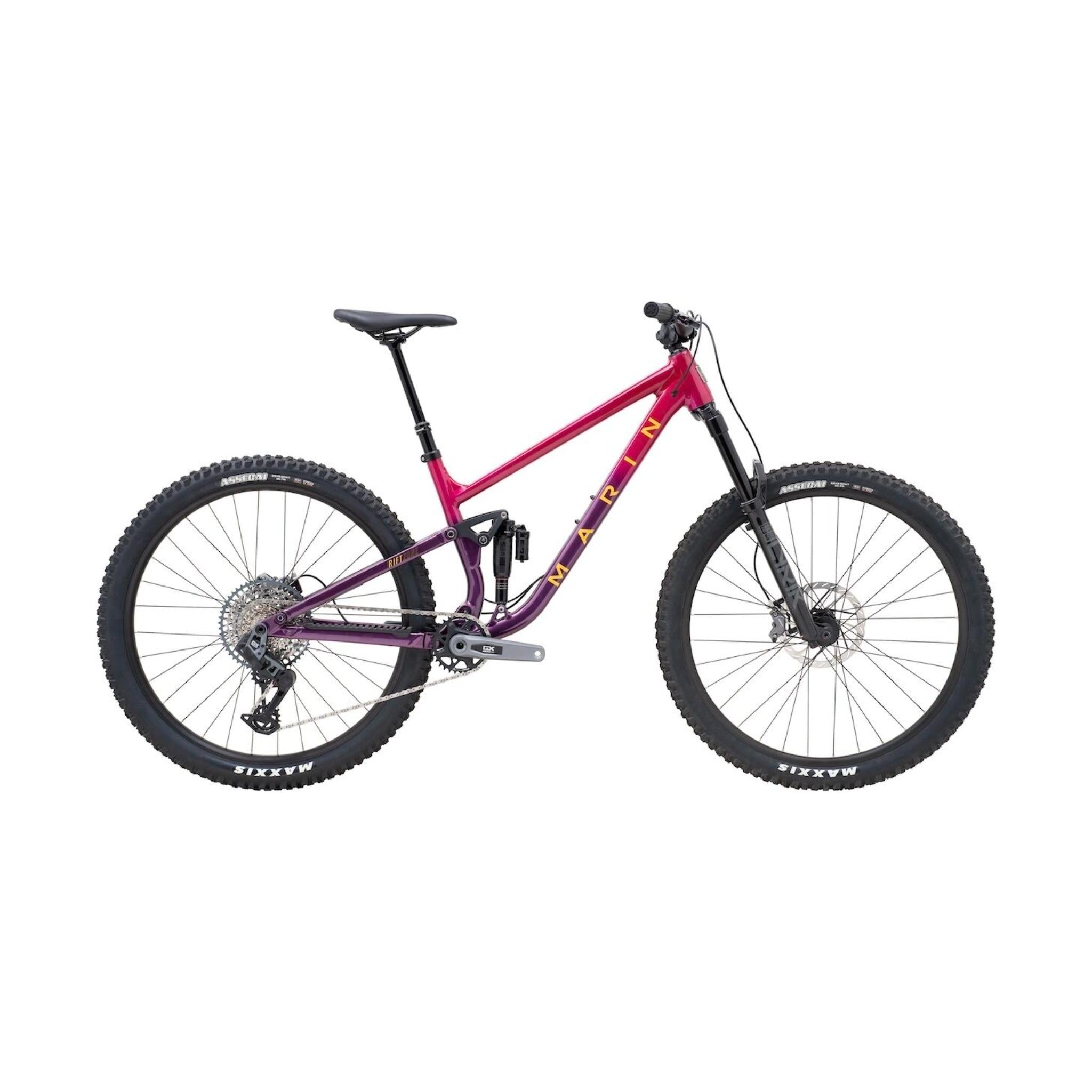

The Rift Zone XR 29 AXS is the top-spec version of Marin's aluminium Rift Zone, a hard-charging special edition for riders who want the raddest Rift Zone in the range. It brings together trail-taming 29" wheels, 150mm of travel up front, 130mm at the rear and Marin's plush MultiTrac suspension, topped off with SRAM's wireless GX Eagle AXS T-Type drivetrain.
The build is packed with high-end parts: a RockShox Lyrik Select+ fork and Super Deluxe Select+ shock, SRAM Code Bronze 4-piston brakes with a 200mm front rotor, grippy Maxxis Assegai tyres, Formula-hubbed wheels and a TranzX dropper. Add Marin's fine finishing details and you have the highest-spec, highest-tech alloy Rift Zone Marin has made.
Features
- Series 3 6061 aluminium frame with MultiTrac suspension
- 150mm front and 130mm rear travel on 29" wheels
- RockShox Lyrik Select+ fork and Super Deluxe Select+ shock
- SRAM GX Eagle AXS T-Type wireless 12-speed drivetrain
- SRAM Code Bronze 4-piston brakes with 200mm front and 180mm rear rotors
- Formula hubs with Marin 29mm rims
- Maxxis Assegai 29x2.5" tyres
- TranzX dropper post
Sizing
- S: 5'3" - 5'6"
- M: 5'6" - 5'10"
- L: 5'10" - 6'1"
- XL: 6'1" - 6'4"
Specifications
DisciplineTrail
MaterialAluminium
Front Travel150mm
Rear Travel130mm
Wheel Size29"
Warranty5 Years (frame)
Frame - Series 3 6061 aluminium, 29" wheels, 130mm travel, MultiTrac suspension platform, 148x12mm Boost thru-axle, 73mm threaded BB with ISCG05 tabs
Fork - RockShox Lyrik Select+, 150mm travel, 29", 110x15mm Maxle Stealth, 42mm offset
Rear shock - RockShox Super Deluxe Select+, 210x55mm, custom tune
Rims - Marin aluminium double wall, 29mm inner, sleeved joint, 32H, tubeless compatible
Front hub - Formula DC-711, 110x15mm, 6-bolt disc, 32H
Rear hub - Formula DCL-3482, 148x12mm, 4 sealed bearings, 6-bolt disc, XD driver, 32H
Spokes - 14g black stainless steel
Tyres - Maxxis Assegai, 29x2.5", MaxxTerra, EXO, tubeless compatible
Rear derailleur - SRAM GX Eagle AXS T-Type
Shift lever - SRAM AXS Pod, MMX
Crankset - SRAM GX Eagle, 32T, 55mm chainline, 170mm
Bottom bracket - SRAM DUB MTB 73mm
Chain - SRAM GX Eagle T-Type
Cassette - SRAM GX 1275 T-Type, 10-52T
Front brake - SRAM Code Bronze, 4-piston hydraulic disc, HSC 200mm rotor
Rear brake - SRAM Code Bronze, 4-piston hydraulic disc, HSC 180mm rotor
Brake levers - SRAM Code Bronze
Handlebar - Marin Trail, 7000 alloy, 35mm clamp, 800mm width, 20mm rise, 5° up, 8° back
Stem - Marin CNC, 35mm length, 35mm clamp
Grips - Marin Grizzly lock-on
Headset - FSA No.57, sealed cartridge bearings, 1 1/8" x 1 1/2"
Seatpost - TranzX YSP23JL dropper, 1x remote, 30.9mm, 150mm (S), 170mm (M-L), 200mm (XL)
Saddle - Marin Speed Concept
Extras - Bolt-on 12mm rear thru-axle
Rift Zone XR 29 AXS 2024
- Trail
- 150 / 130mm travel
