Description
The XR is Marin's high-spec version of the UK trail dominant Rift Zone.
Rapid rolling 29" wheels work in tandem with the 150mm front and 130mm rear travel to provide an engaging and stable ride. The Rift Zone XR will happily tear over the kilometres at trail centres as well as hit the toughest lines at the bikepark.
The Rift Zone XR gets an extra spicy build. Starting out front, the fork is RockShox's supreme Lyrik Select+ model, now sporting 150mm of travel. Not wanting to leave the rear in the lurch, the Super Deluxe Select+ shock balances out the bouncy bits. SRAM's wide-range 12-speed GX Eagle drivetrain helps get the power to the rear wheel, while DB8 4-piston brakes offer impeccable braking performance
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'10
- L: 5'10 - 6'1
- XL: 6'1 - 6'4
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 150mm
-
Rear Travel 130mm
-
Wheel Size 29"
-
Warranty 5 Years (frame)
Frame - Series 3 6061 Aluminium, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Front Suspension - RockShox Lyrik Select+, 150mm Travel, 29" wheels, 110x15 Maxle Stealth, 42mm Offset
Rear Suspension - RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune
Rim - Marin Aluminium Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Hub Rear - Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
Hub Front - Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
Spokes - 14g Black Stainless Steel
Tires - Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible
Derailleur Rear - SRAM GX Eagle Lunar
Shift Lever - SRAM GX Eagle Lunar MMX Mount
Crankset - SRAM GX Eagle, 32T, 55MM CL, 170MM Length
Bottom Bracket - SRAM DUB MTB 73
Chain - SRAM NX Eagle
Cassette - SRAM XG 1275 Eagle Cassette 10-52T
Brakes Front - SRAM DB8 4-Piston Hydraulic Disc, HSC 200mm Rotor
Brakes Rear - SRAM DB8 4-Piston Hydraulic Disc, HSC 180mm Rotor
Brake Levers - SRAM DB8 Hydraulic
Handlebar - Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Stem - Marin CNC, 35mm Length, 35mm Bar Bore
Grips - Marin Grizzly Lock-On
Headset - FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost - TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Saddle - Marin Speed Concept
Extras - Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

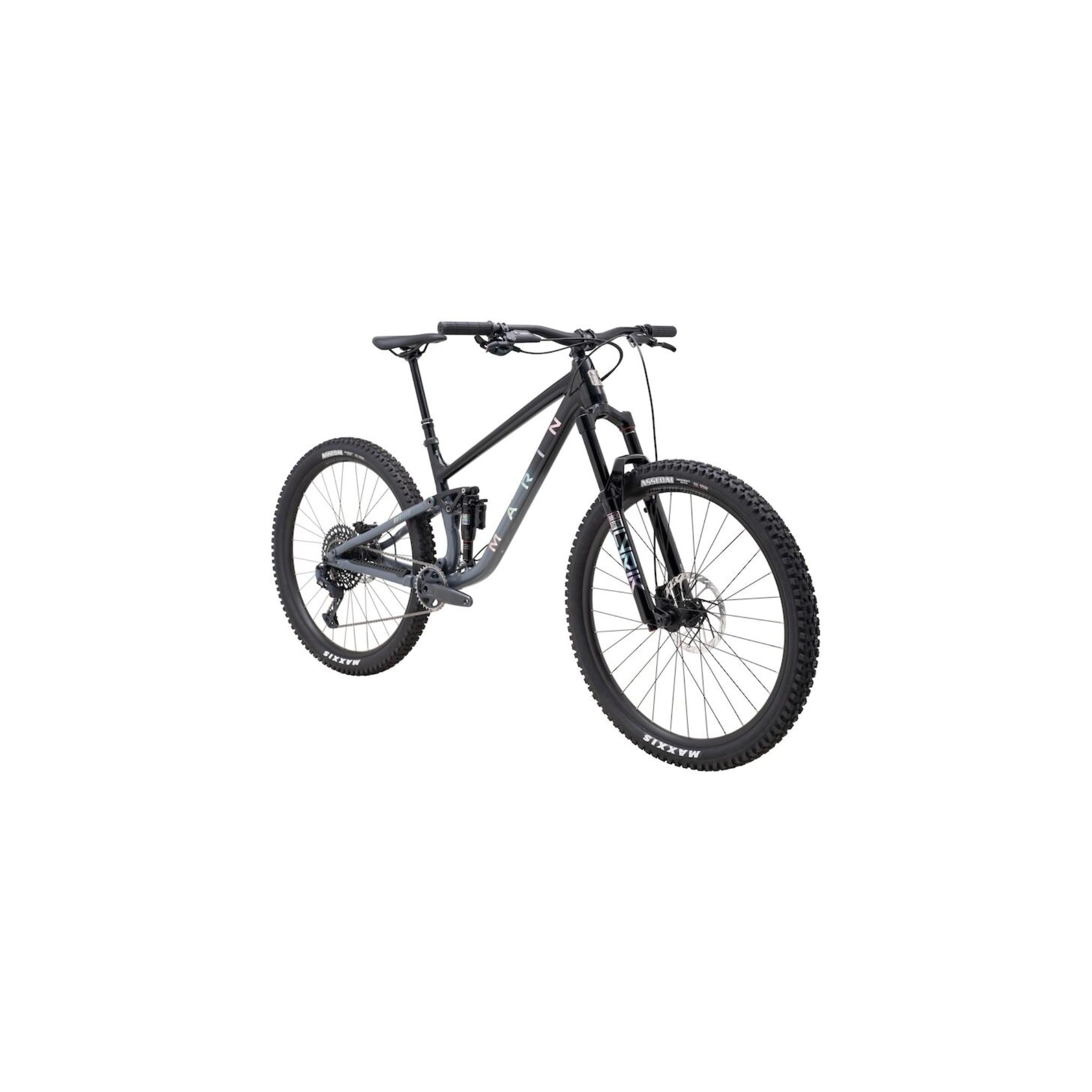

Marin Rift Zone XR 2025
