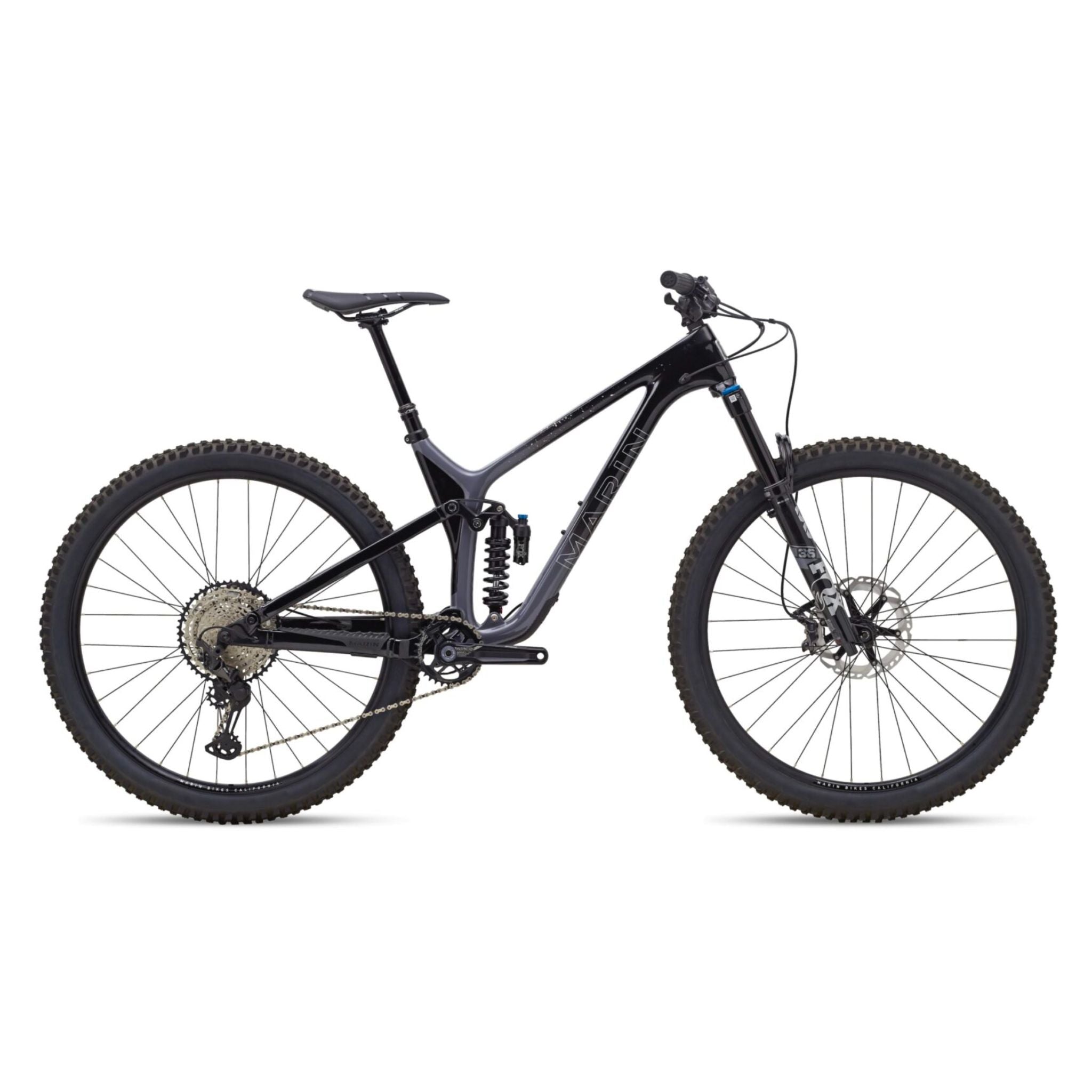

The Rift Zone Carbon XR is the top-spec version of Marin's most speed-oriented MultiTrac bike, made for riders who want the speed and rollover of 29" wheels in a properly trail-capable package. A stiff carbon front triangle, a 140mm Fox 36 fork and a Fox Factory coil shock make it a fast, composed and seriously fun trail bike.
Long, low and slack trail geometry is more aggressive than an XC race bike, giving you more control at top speed and more fun while chasing seconds. The unidirectional carbon front triangle sits on a Series 4 alloy rear end with 125mm of MultiTrac travel, and the coil shock gives a supple, consistent feel on rough, rooty ground.
The rest of the build is just as capable: a Shimano XT rear derailleur with SLX shifter and cassette, powerful Shimano XT 4-piston brakes with a 203mm front rotor, a TranzX dropper post and grippy Maxxis Assegai tyres front and rear.
Features
- Unidirectional carbon front triangle with Series 4 alloy rear end
- 140mm front and 125mm rear travel on 29" wheels
- Long, low and slack trail geometry
- Fox 36 Performance Elite fork with GRIP2 damper
- Fox Factory Series coil shock with climb switch
- Shimano XT rear derailleur with SLX shifter and 10-51T cassette, 12-speed
- Shimano XT 4-piston brakes with 203mm front and 180mm rear rotors
- Maxxis Assegai MaxxGrip EXO+ tyres
Specifications
DisciplineTrail
MaterialCarbon
Front Travel140mm
Rear Travel125mm
Wheel Size29"
Warranty5 Years (frame)
Frame - Unidirectional carbon fibre front triangle, Series 4 alloy rear end, 29" wheels, 125mm travel, MultiTrac suspension platform, 148x12mm Boost thru-axle, 73mm threaded BB with ISCG05 tabs
Fork - Fox 36 Float Performance Elite, 140mm travel, GRIP2 damper, 110x15mm Kabolt axle, 44mm offset
Rear shock - Fox Factory Series coil, climb switch, rebound and compression adjust, custom tune, 210x50mm, spring rates 350lb (S), 400lb (M), 450lb (L), 500lb (XL)
Rims - Marin aluminium double wall, 29mm inner, welded joint, tubeless compatible
Front hub - Shimano, 110x15mm, disc, 32H
Rear hub - Shimano, Micro Spline, 148x12mm, disc, 32H
Spokes - 14g black stainless steel
Tyres - Maxxis Assegai 29x2.5", 3C MaxxGrip, EXO+, tubeless compatible
Rear derailleur - Shimano XT, 12-speed, SGS
Shift lever - Shimano SLX, 12-speed, I-Spec EV
Crankset - FSA Gradient, modular 1x, 32T direct mount chainring, MegaTooth, MegaExo spindle, Boost spacing
Bottom bracket - FSA MegaEvo, 73mm BSA threaded
Chain - KMC X12
Cassette - Shimano SLX M7100, 12-speed, 10-51T
Front brake - Shimano XT, 4-piston hydraulic disc, 203mm rotor
Rear brake - Shimano XT, 4-piston hydraulic disc, 180mm rotor
Brake levers - Shimano XT, I-Spec EV
Handlebar - Marin Trail, 7000 alloy, 35mm clamp, 800mm width, 20mm rise, 5° up, 8° back
Stem - Marin CNC, 35mm length, 35mm clamp
Grips - Marin Grizzly lock-on
Headset - FSA No.42/47, sealed cartridge bearings, 1 1/8" x 1 1/2"
Seatpost - TranzX YSP23JL dropper, 1x remote, 30.9mm, 125mm (S), 150mm (M-L), 170mm (XL)
Saddle - Marin Trail Speed Concept Pro
Rift Zone Carbon XR 2023
- Trail
- 140 / 125mm travel
- 29″ wheels
- Carbon frame
